Quick Details
-
Product name:
-

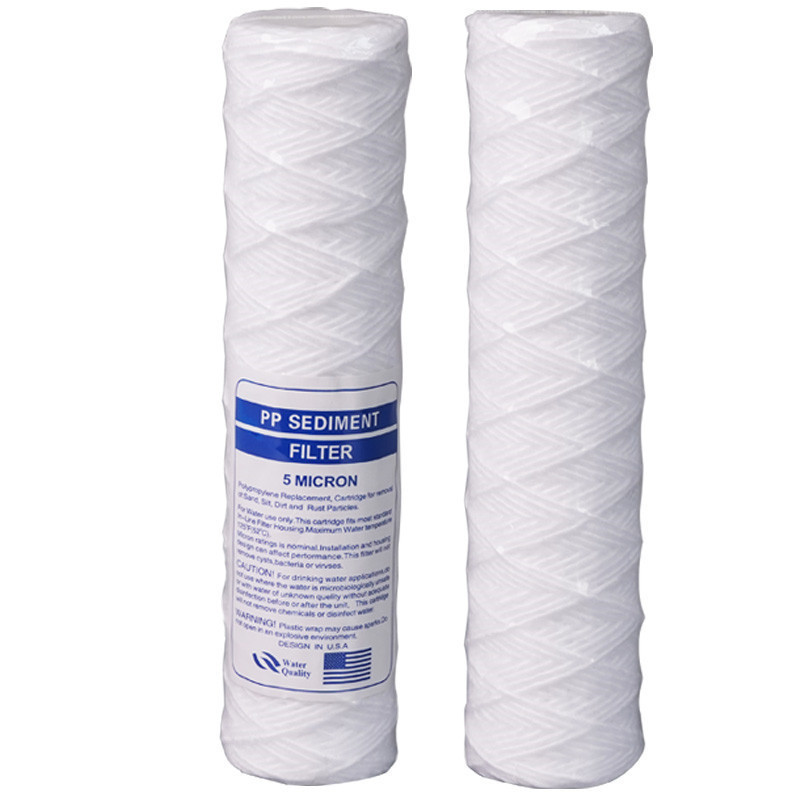

high quality PP yarn string wound filter cartridge
-
Length:
-
508mm
-
OD:
-
63
-
ID:
-
30
-
Weight:
-
300g
-
Precision:
-
1.5.10.15.20.50
-
Packing:
-
Carton
-
material:
-
pp yarn
-
Usage:
-
Pure Water Process
-
Type:
-
Water Filter Parts
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLF
-
Weight (KG):
-
0.1 kg
-
Product name:
-
high quality PP yarn string wound filter cartridge
-
Length:
-
508mm
-
OD:
-
63
-
ID:
-
30
-
Weight:
-
300g
-
Precision:
-
1.5.10.15.20.50
-
Packing:
-
Carton
-
material:
-
pp yarn
-
Usage:
-
Pure Water Process
-
Type:
-
Water Filter Parts
Pp Yarn Wound Drinking Water Plant Filter Cartridge
The filter element can separate the solid particles from the liquid or gas, or make the different material composition contact fully, accelerate the time of the reaction. So that it can protect the normal operation of the equipment or make air clean. When the medium enter the filter element with certain specification filter mesh. The impurities are held up and the clean medium come out through the filter element.
| NAME | PP yarn string wound filter cartridge |
|
Material |
PP , Cotton, Glass Fiber |
|
Size |
custom |
| Inner Diameter | 28mm |
| Outer Diameter | 62-65mm, 110-115mm |
| Maximum Differential Pressure | 4.5 bar at 25℃ |
| Recommended Change Out | 1-1.5 bar |
| Maximum Temperature | PP Yarn+PP Core(80℃) |
Material of Construction
• Filter Media: Polypropylene, cotton or glass fiber
• Core: Polypropylene or stainless steel
• Seal Material:Silicone,EDPM,Buna,Viton, Teflon
• Micron Rating: 1µm, 3µm, 5µm, .. 100µm
Dimensions
• Outside diameter: 2.5"(62-65mm),4.5"(110-115mm)
• Inside diameter:28mm or 30mm
• Length: 5", 10", 20", 30", 40"
PS:Special requirement of diameter and end caps can be customized
Recommended Operating Conditions
Max. Operating Temperature:
PP ≤ 80°C
Cotton ≤ 120°C
Glass fiber ≤ 180°C
