Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Waterun
-
Model Number:
-
SL-102
-
Name:
-
overhead ionizing air blower
-
Wind Rate:
-
<= 5.1m3/min (30cm distance)
-
Ionizing Speed:
-
<= 2s
-
Working Distance:
-
100-600mm
-
Ion balance:
-
=<+-10V
-
Air Velocity:
-
80-220CFM
-
Work temperature:
-
0-50 degree
-
Work humidity:
-
56% - 65%
-
Noise:
-
45-55 dB
-
Dimenson:
-
550 x 150 x 80mm
Quick Details
-
Application:
-
Air Blower
-
Pressure:
-
High Pressure
-
Warranty:
-
one year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Waterun
-
Model Number:
-
SL-102
-
Name:
-
overhead ionizing air blower
-
Wind Rate:
-
<= 5.1m3/min (30cm distance)
-
Ionizing Speed:
-
<= 2s
-
Working Distance:
-
100-600mm
-
Ion balance:
-
=<+-10V
-
Air Velocity:
-
80-220CFM
-
Work temperature:
-
0-50 degree
-
Work humidity:
-
56% - 65%
-
Noise:
-
45-55 dB
-
Dimenson:
-
550 x 150 x 80mm

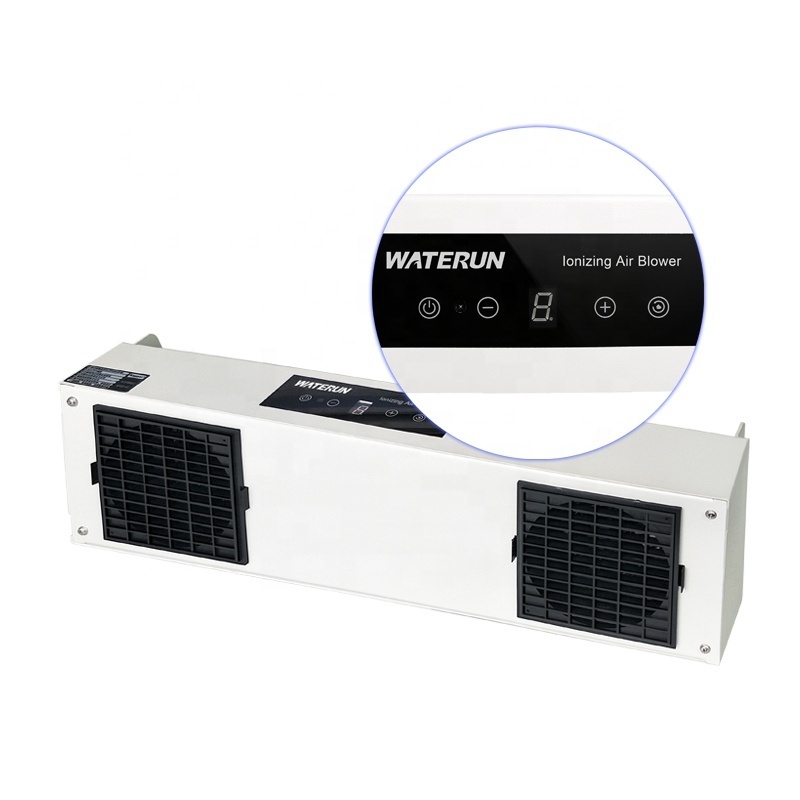

SL-102 Generation 5 intelligent overhead ionizing air blower is Waterun ’s latest developed and produced intelligent anti-static devices, it can eliminate the static electricity on object surfaces.
It c an produce large amounts of airflow with positive and negative charges to neutralize the charges on the objects. Negative or positive charges on the object surface will attract
opposite charges in the air, so that the static electricity on the object surfaces will be neutralized and eliminated.
It provided by the small fan, can be adjusted via the touch button or remote control.
It i s applied in precision electronic, pharmaceutical manufacturing, plastics, photoelectric industry, etc.
Features:
1.Intelligent and modern with dedicate appearance, fine manufacture and novel design.
2.Automatic cleaning and automatic learning function of transmitting needle brush, hand cleaning is
unnecessary.
3.Both the power start and wind regulation can be controlled by remote control or touch.
4. Wind sounding alarm and alarm lamp function for high voltage fault, helping us understand whether the equipment
is working normally from auditory sense and vision.
5.If obstacles are encountered during the normal operation of fan, it will stop working after the automatic
short circuit.
6.Fast elimination of static electricity, low balance voltage and high safety performance.
7. Energy saving and environmental with low power consumption.
Test Result:
|
Testing condition |
||||
|
Humidity:≤ 60% Testing voltage : 1KV-100V Temperature : 22 ℃ |
||||
|
Distance |
300mm |
600mm |
||
|
Decay time |
Positive |
0. 6 s |
0. 7 s |
|
|
Negative |
0. 4 s |
0.7s |
||
|
Offset voltage |
Positive |
+3V |
+6V |
|
|
Negative |
-4V |
-7V |
||
Applications:
1. Electronic Manufacturing
2. Cleanroom
3. Printing & Painting industrial
