Quick Details
-
Applicable Industries:
-
Industry Equipment Parts
-
Weight (KG):
-
0.05 KG
-
Laser type:
-

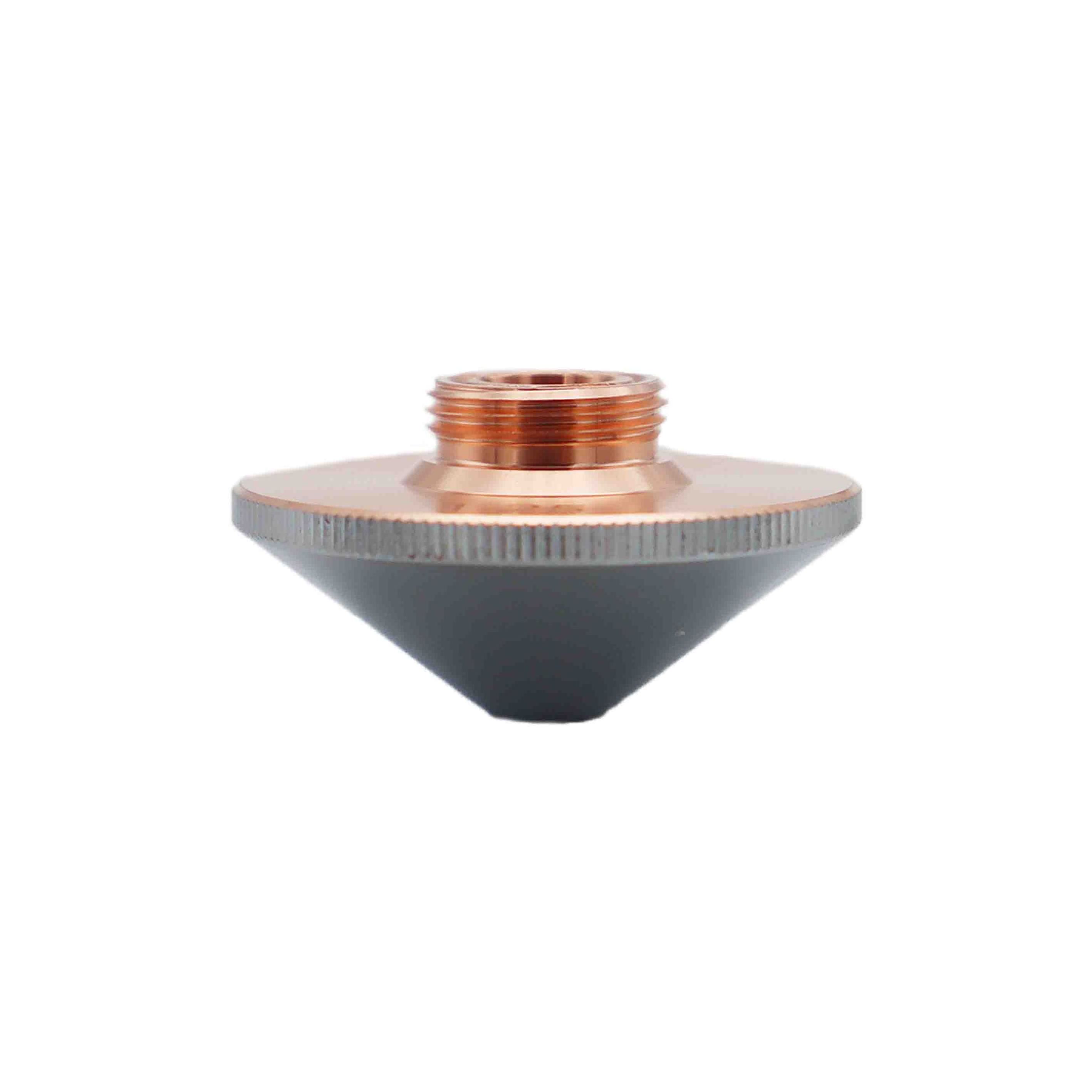

Fiber Laser nozzle
-
Material:
-
Copper
-
Caliber:
-
0.8-10mm
-
MOQ:
-
10 PCS
-
Cutting Material:
-
Metal/Nonmetal Material
-
Diameter:
-
28mm/32mm
-
Sample:
-
Yes
-
Package Type:
-
Carton Box
-
Delivery time:
-
7-15 Days
-
Brand:
-
Raytools
Quick Details
-
Place of Origin:
-
Shanghai
-
Spare Parts Type:
-
Fiber laser machine parts
-
Brand Name:
-
ZL
-
Applicable Industries:
-
Industry Equipment Parts
-
Weight (KG):
-
0.05 KG
-
Laser type:
-
Fiber Laser nozzle
-
Material:
-
Copper
-
Caliber:
-
0.8-10mm
-
MOQ:
-
10 PCS
-
Cutting Material:
-
Metal/Nonmetal Material
-
Diameter:
-
28mm/32mm
-
Sample:
-
Yes
-
Package Type:
-
Carton Box
-
Delivery time:
-
7-15 Days
-
Brand:
-
Raytools
Laser cutting heads
Shanghai ZHILEI automation technology Co.,LTD.
Your professional one-stop service for laser application solutions and laser accessories!!!
Specification List
* How do I choose between single/double layers?
Single-layer nozzles are usually used for cutting aluminum plate,copper plate with
nitrogen
air as auxiliary gas;
Double-layer nozzles are usually used for oxidative cutting, cutting carbon steel with
oxygen
as auxiliary gas.
Diameter 28mm
Diameter 32mm
Diameter 15mm
Bullet
|
Diameter
|
Type
|
Single/Double
|
Specification
|
Thread
|
Caliber
|
|
28mm
|
A
|
Single
|
D28*H15
|
M11
|
0.8-10
|
|
|
|
Double
|
D28*H15
|
M11
|
0.8-10
|
|
|
B
|
Single
|
D28*H15
|
M11
|
1-2
|
|
|
|
Double
|
D28*H15
|
M11
|
1-2
|
|
|
C
|
Single
|
D28*H15
|
M11
|
0.8-10
|
|
|
|
Double
|
D28*H20
|
M11
|
1.6-1.8
|
|
32mm
|
A
|
Single
|
D32*H15
|
M14
|
0.8-10.0
|
|
|
|
Double
|
D32*H15
|
M14
|
0.8-10
|
|
|
B
|
Single
|
D32*H15
|
M14
|
1-5
|
|
|
|
Double
|
D32*H15
|
M14
|
1-5
|
|
15mm
|
A
|
Single
|
D15*H19
|
M8
|
1.6-1.8
|
|
|
|
Double
|
D15*H19
|
M8
|
1.6-1.8
|
|
Bullet
|
A
|
Single
|
D10.5*H22
|
|
0.8-4
|
|
|
|
Double
|
D10.5*H22
|
|
0.8-4
|
|
Bullet Base
|
|
|
D35.5*H28
|
|
|
|
Bullet Nut
|
|
|
D23*H15
|
|
|
