Quick Details
-
Applicable Industries:
-
Woven bag making machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANFENG
-
Model Number:
-
S-YZJ-850/6S
-
Voltage:
-
380V, 50Hz
-
Dimension(L*W*H):
-
9*2.5*3.5meters
-
Weight:
-
2000 KG
-
Max Speed:
-
3m/min
-
CIRCULAR LOOM:
-
AUTOMATIC
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Cement Bag
-
Material:
-
Plastic
-
Applicable Industries:
-
Woven bag making machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TIANFENG
-
Model Number:
-
S-YZJ-850/6S
-
Voltage:
-
380V, 50Hz
-
Dimension(L*W*H):
-
9*2.5*3.5meters
-
Weight:
-
2000 KG
-
Max Speed:
-
3m/min
-
CIRCULAR LOOM:
-
AUTOMATIC
Products Description

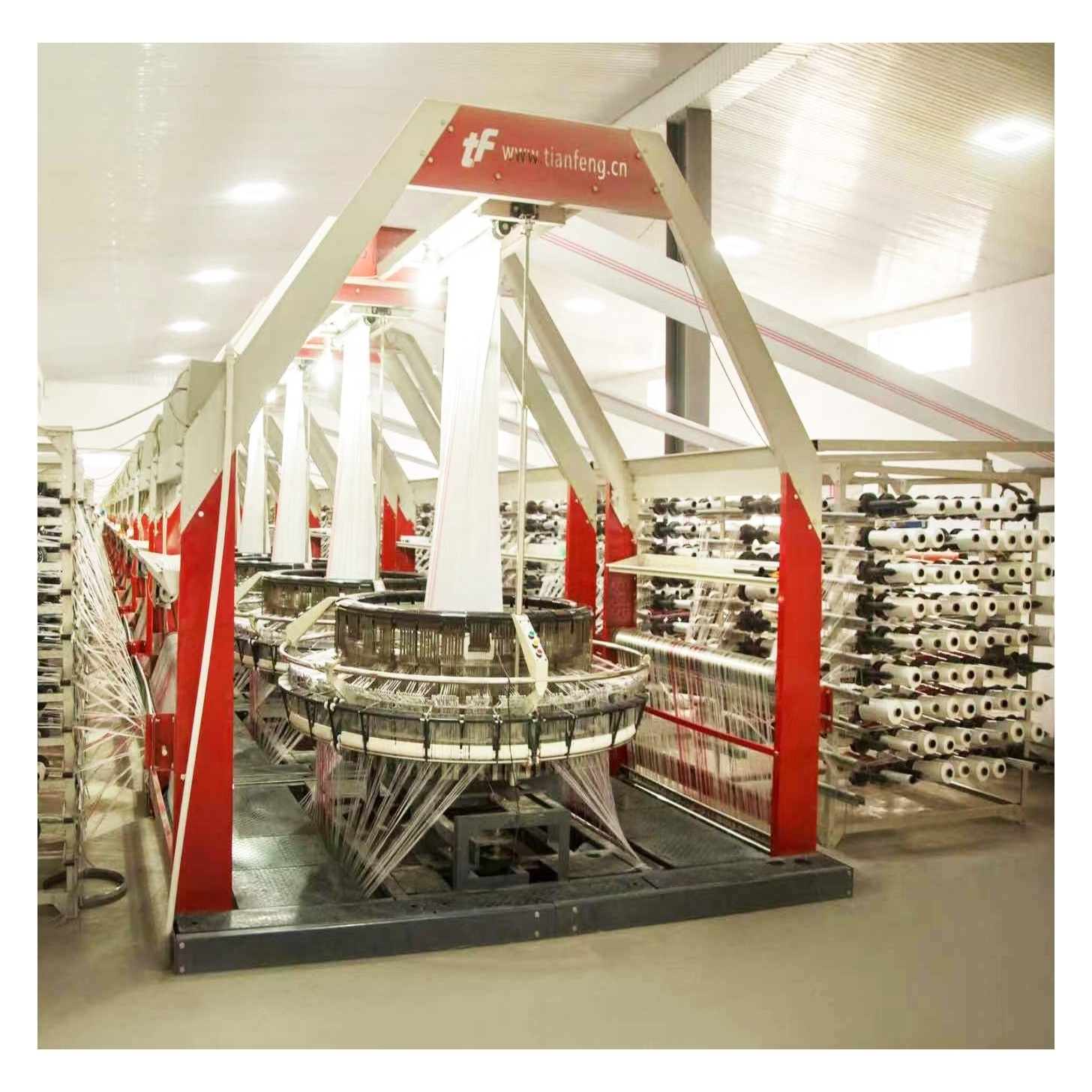

We can make all type Circular Loom such as 4-shuttle Circular Loom, 6-Shuttle Circular Loom, 8-shuttle Circular Loom, and 10shuttle Circular Loom. Circular Loom can make PP woven fabric for cement bag, rice bag, wheat Woven Bag , Jumbo/Container/FIBC Bags, sugar Woven Bags
Main Technical Variables
|
Model
|
S-YZJ-850/6S
|
|
Rotational speed
|
120-180 r.p.m.
|
|
Working width, double-flat
|
350-850mm
|
|
Driving main motor and control
Warp infeed motor and control |
3kw, inverter control
2sets, torque control |
|
Over dimensions (L×W×H)
|
9100×2410×3100mm
|
|
Number of shuttles
|
6 pcs
|
|
Machine weight
|
1800kgs
|
Details Images
Sample Bag from Machine
