Quick Details
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
850 * 615 * 1320 mm
-
Weight (KG):
-
157
-
Power (kW):
-
543w
-
Product name:
-
Automatic Circular Saw Blade Sharpening Machine For Grinding Blades
-
Grinding Angle:
-
0-30 degree for carbide saw blade sharpening machine
-
Grinding diamond speed:
-
2800r/min for carbide saw blade sharpening machine
-
Grinding diamond:
-
Dia 150*hole 32 *thickness 10mm
-
Usage:
-
Surface Polishing
-
Precision:
-
0.005mm
-
Dial the tooth distance:
-
3-45mm
-
Max. Grinding Length:
-
2500mm
-
Max. Grinding Diameter:
-
800mm
Quick Details
-
Year:
-
Newest
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZZCHRYSO
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
850 * 615 * 1320 mm
-
Weight (KG):
-
157
-
Power (kW):
-
543w
-
Product name:
-
Automatic Circular Saw Blade Sharpening Machine For Grinding Blades
-
Grinding Angle:
-
0-30 degree for carbide saw blade sharpening machine
-
Grinding diamond speed:
-
2800r/min for carbide saw blade sharpening machine
-
Grinding diamond:
-
Dia 150*hole 32 *thickness 10mm
-
Usage:
-
Surface Polishing
-
Precision:
-
0.005mm
-
Dial the tooth distance:
-
3-45mm
-
Max. Grinding Length:
-
2500mm
-
Max. Grinding Diameter:
-
800mm
Product Description

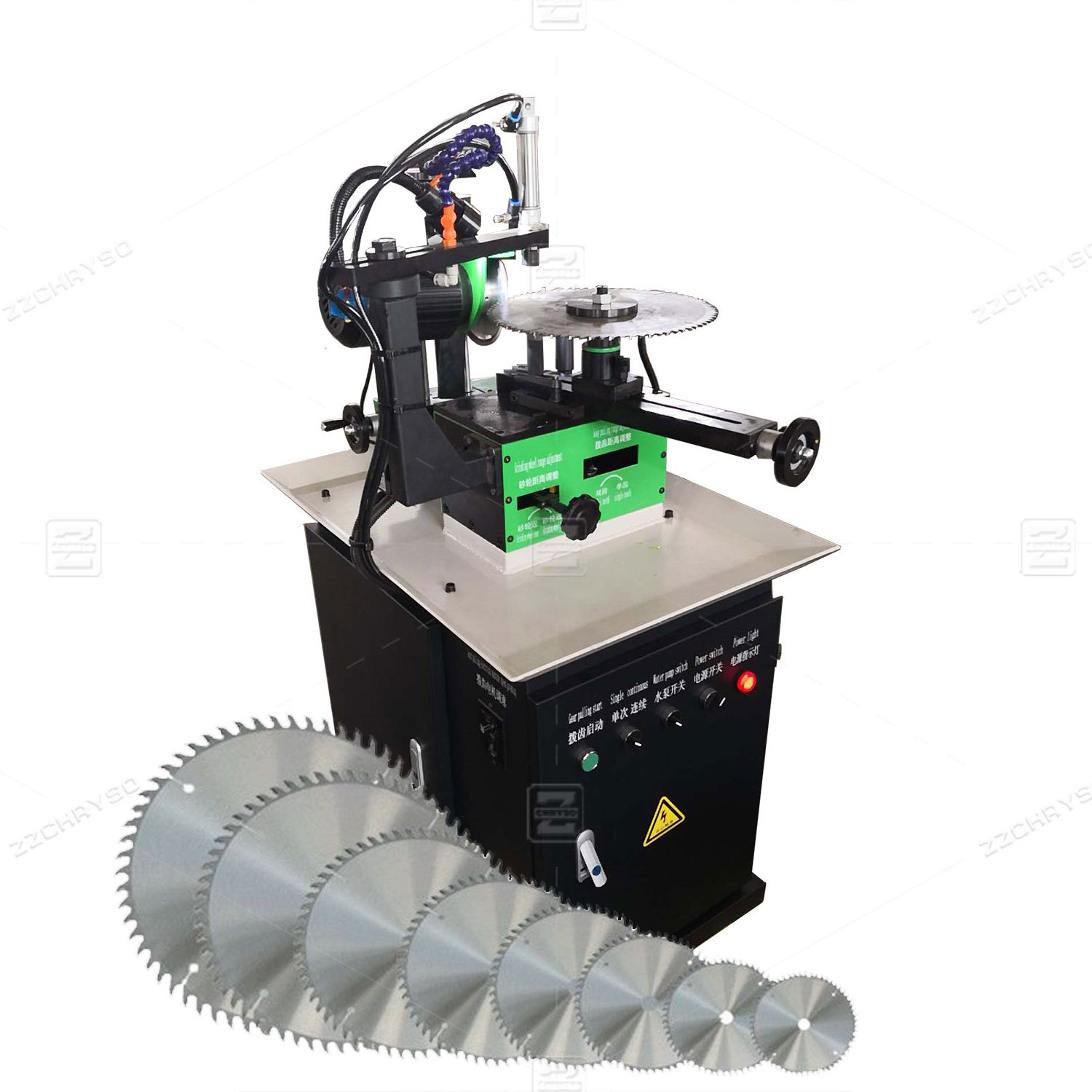

Automatic saw blade sharpening machine
1. We R & D and product CRS-04 type fourth-generation automatic saw blade grinding machine, with intuitive structure, simple operation, practical, precise, beautiful and so on.
2. According to different chip requirements to change the cutting angle of the saw tooth, tooth, tooth depth, can easily grind sharp blade.
3. Can be grinding blade material: high-speed steel (HSS) saw blade, flying saw (manganese steel) saw blade.
4. Can wear a variety of teeth. (Left and right teeth, arc teeth, triangular teeth, high and low teeth).
5. According to the different cutting requirements to quickly adjust the grinding time of the blade.
6. The hand piece can be tilted up or down, no need to change the grinding wheel can chamfer.
Working principle of Automatic saw blade sharpening machine
Technique : The grinding blade to be pressed on the saw blade fixed shaft, adjust the pitch of the dial teeth, adjust the grinding wheel grinding angle and feed distance, after starting the machine,adjus the grinding wheel feed and automatic finish saw blade grinding.
Specification
|
Product name
|
Saw blade sharpening machine
|
|
Saw blade grinding machine
|
120-800mm
|
|
Total power
|
543w
|
|
Voltage
|
380V
|
|
Frequency
|
50HZ
|
|
Dial the tooth distance
|
3-45mm
|
|
Grinding speed
|
Stepless speed regulation
|
|
Grinding wheel speed
|
2800r/min
|
|
Grinding wheel specifications
|
diameter 150*hole 32* thickness 10mm
|
|
Dimensions
|
850*615*1320mm
|
|
Packing size
|
900*665*1320mm
|
|
Total weight
|
157kg
|
Feature
Features of Universal automatic saw blade sharpening machine
1. Saw blade fixing mechanism 2. Automatic dialing sawtooth mechanism
3. Saw blade automatic compression mechanism
4. Grinding wheel grinding mechanism
5. Electrical control mechanism
6. Cutting fluid cooling mechanism
3. Saw blade automatic compression mechanism
4. Grinding wheel grinding mechanism
5. Electrical control mechanism
6. Cutting fluid cooling mechanism
