Quick Details
-

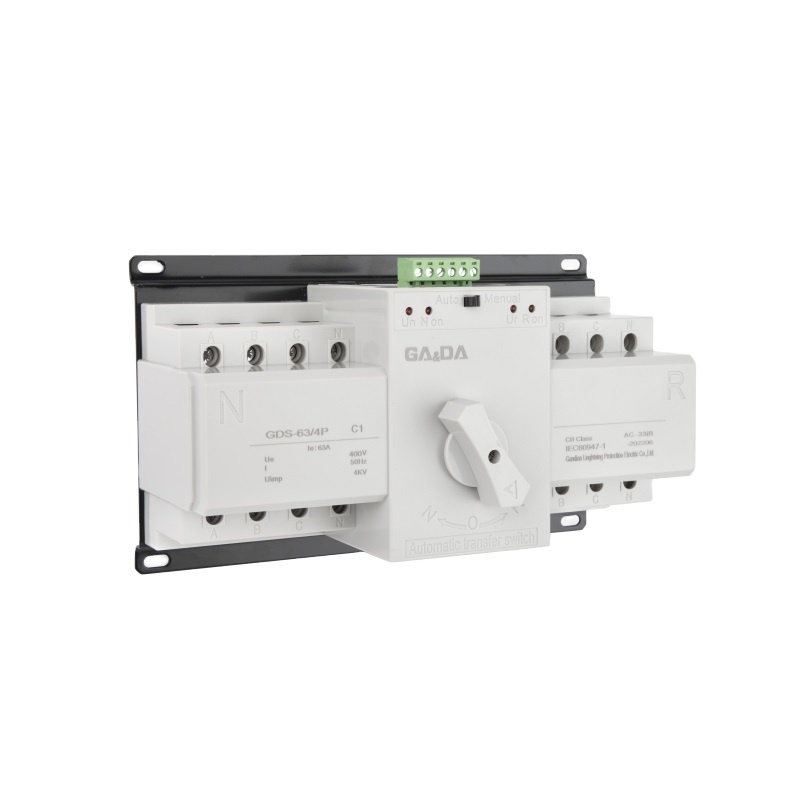

Model Number:
-
GDS-63A-4P
-
Max. Current:
-
63A
-
Rated short circuit breaking:
-
3kA
-
Rated short circuit making:
-
3kA
-
transfer time:
-
≤3S
-
Control voltage of transfer switch:
-
AC230V
-
Rated insulation voltage:
-
U=500V
-
Rated working current:
-
10A,16A,20A,32A,40A,50A,63A,80A,100A
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GANDIAN
-
Model Number:
-
GDS-63A-4P
-
Max. Current:
-
63A
-
Rated short circuit breaking:
-
3kA
-
Rated short circuit making:
-
3kA
-
transfer time:
-
≤3S
-
Control voltage of transfer switch:
-
AC230V
-
Rated insulation voltage:
-
U=500V
-
Rated working current:
-
10A,16A,20A,32A,40A,50A,63A,80A,100A
-
Certification:
-
CE
Products Description
Product Introduction
Dual power transfer switch electrical appliances (transfer switch ATS, also known as ATSE, is the English abbreviation of Automatic transfer Switching equipment.) An electrical appliance that converts one or several load circuits from one power supply to another. It consists of one (or several) transfer switch appliances and other necessary appliances for monitoring the power circuit and automatically switching one or several load circuits from one power source to another.
When the common power suddenly fails or fails, it will be automatically switched to the backup power supply through the dual power switch (the backup power supply can also be powered by a generator under small loads), so that the equipment can still operate normally. The most common ones are elevators, fire protection, monitoring, lighting, etc.
Product Features
1.
Complete protective fun ctions, including short circuit, overload, open phase and loss-of-voltage protection.
2.
Reliable remote double-break with EPS fire protectin power supply interface DC12-24V
3.
Noiseless, energy saving, simple installation, easy operation, raliable and stable performance
4.
Mechanical life of transfer switch(transfer of normal and reserve power): 3000 times, electric life: 1500 times
此处添加文字标题
|
Type
|
GDS3-100
|
GDS-125
|
|
|
Shell Frame Current
|
100A
|
125A
|
|
|
Rated Current In(A)
|
10A,16A,25A,32A,40A,50A,63A,80A,100A
|
10A,16A,25A,32A,40A,50A,63A,80A,100A,125A
|
|
|
Rated Operating Voltage Ue
|
2P AC 230V 50HZ/4P AC 400V 50HZ
|
|
|
|
Rated Insulation Voltage Ui
|
800V
|
|
|
|
Rated Impulse Withstand Voltage Uimp
|
8kV
|
4kV
|
|
|
Switching Poles
|
2P/3P/4P
|
2P/4P
|
|
|
Use Category
|
AC-33iB
|
|
|
|
Electrical Level
|
PC Class
|
CB Class
|
|
Product Paramenters
Peculiarity
Recommend Products
Certifications
Manufacturing Technique
Professional Electrical Equipment Laboratory
Our company attaches great importance to technological research and development, and strives to build an automated electrical equipment and digital production line base that enhances traditional industries through automation, gathering a highly skilled technical team; Committed to building a professional lightning protection electrical laboratory. Ensuring the stability and innovation of Gandian products.
---Lightning Impact Test Room: Conduct various waveform impact tests on lightning protection devices, such as 8/20, 10/350, and 1.2/50us;
---SPD safety laboratory: Conduct thermal stability and TOV fault tests, with a test current of 1A-300A;
---Environmental laboratory: salt spray, vibration, high and low temperature tests;
---Physical and chemical laboratory: material metallographic analysis, spectral analysis, RoHs analysis;
---Low voltage test room: leakage marking index, withstand voltage test, flame retardant level;
---Mechanics laboratory: pendulum impact, tensile force, pressure, torsion, hardness, and transportation vibration tests.
Specialized production process technology
Our company independently develops multiple advanced automatic production and processing lines, plastic injection molding lines,hardware stamping lines, and multiple assembly lines; Integrating automatic equipment such as automatic gluing, automatic soldering, automatic film pressing, transfer printing, laser marking, automatic detection and uploading of data, and automatic sealing and packaging into one; Form a fully automated production line, create a process technology that conforms to Gandian Lightning Protection's own technology, lean production management, and rigorous craftsmanship spirit, which runs through every
link of our production and manufacturing. Carefully control every production process, strictly implement every standard specification, and achieve controllable and traceable quality of each product.
link of our production and manufacturing. Carefully control every production process, strictly implement every standard specification, and achieve controllable and traceable quality of each product.
