Quick Details
-
Place of Origin:
-
shenzhen, China
-
Brand Name:
-
Ai-Thinker
-
Product name:
-
Wifi Module
-
Package:
-
SMD18
-
Size:
-
24*16*3((±0.2mm)
-
SPI Flash:
-
Default 8Mbit
-
Interface:
-
UART/12s
-
IO Port:
-
9
-
Certification:
-
/
-
UART Baud rate:
-
port 300 ~ 4608000 bps
-
Antenna:
-
PCB Antenna
-
Power Supply:
-
Voltage 3.0V~3.6V, Typical 3.3V
Quick Details
-
Chipset:
-
ESP8266 chip
-
Application:
-
smart home system Remote control
-
Model Number:
-
ESP-12E
-
Place of Origin:
-
shenzhen, China
-
Brand Name:
-
Ai-Thinker
-
Product name:
-
Wifi Module
-
Package:
-
SMD18
-
Size:
-
24*16*3((±0.2mm)
-
SPI Flash:
-
Default 8Mbit
-
Interface:
-
UART/12s
-
IO Port:
-
9
-
Certification:
-
/
-
UART Baud rate:
-
port 300 ~ 4608000 bps
-
Antenna:
-
PCB Antenna
-
Power Supply:
-
Voltage 3.0V~3.6V, Typical 3.3V
Products Description

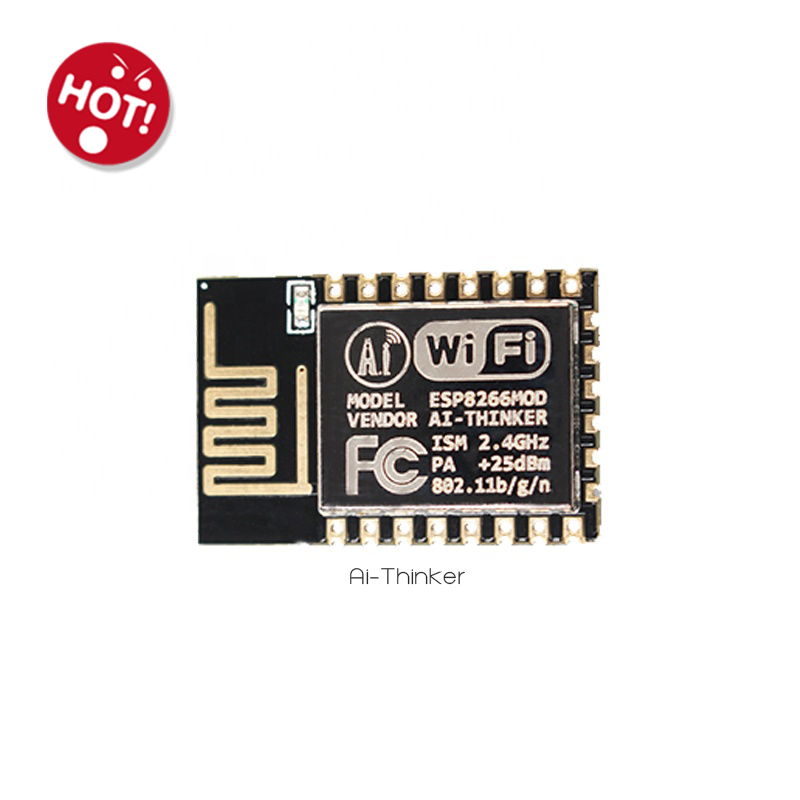

ESP-12E WiFi Module (ESP8266-12E)
·Compatible with ESP-12
·Communication interface voltage: 3.3V
·IO Port Package: Both SMD and Inline package are available, and the pin pitch is 2.0mm.
·Antenna Type: Built-in PCB antenna is available
·Wireless Network Mode: station / soft AP / Soft AP + station
·Wireless criteria: 802.11 b / g / n
·Wi-Fi @ 2.4 GHz, support for WPA / WPA2 security mode
·It is very easy to develop projects with AT command
Applications of ESP8266 12E Wi-Fi Wireless Transceiver Module
·Home automation,
·Sensor networks,
·Industrial wireless control
Product Paramenters
|
Module
|
ESP-12E
|
Description
|
|
Package
|
SMD-22
|
/
|
|
Size
|
24*16*3mm
|
±0.2mm
|
|
SPI Flash
|
32Mbit
|
Default
|
|
Communication Interface
|
/
|
UART/GPIO/ADC/PWM
|
|
GPIO
|
9
|
/
|
|
Series Rate
|
460800bps
|
Support 300~460800bps, 115200bps default
|
|
Frequency Band
|
2.4Ghz
|
2412~2484Mhz
|
|
Antenna Type
|
Onboard
|
PCB antenna, The transmission distance is about 100 meters
|
|
Transmitted Power
|
/
|
802.11b:16±2dBm;802.11g:16±2dBm;802.11n:16±2dBm
|
|
Security
|
/
|
WEP/WPA-PSK/WPA2-PSK
|
|
Supply Voltage
|
3.3V
|
3.0V~3.6V,Current>300mA
|
|
Operating Temperature
|
Industrial grade
|
-20℃~+85℃
|
|
AI Support
|
Built-in intelligent processing
|
Can be read by AT command
|
