Quick Details
-
Voltage:
-
220V/380V/415V optional
-
Dimension(L*W*H):
-
110X95X85 cm, 110X95X85 cm
-
Weight:
-
280 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-

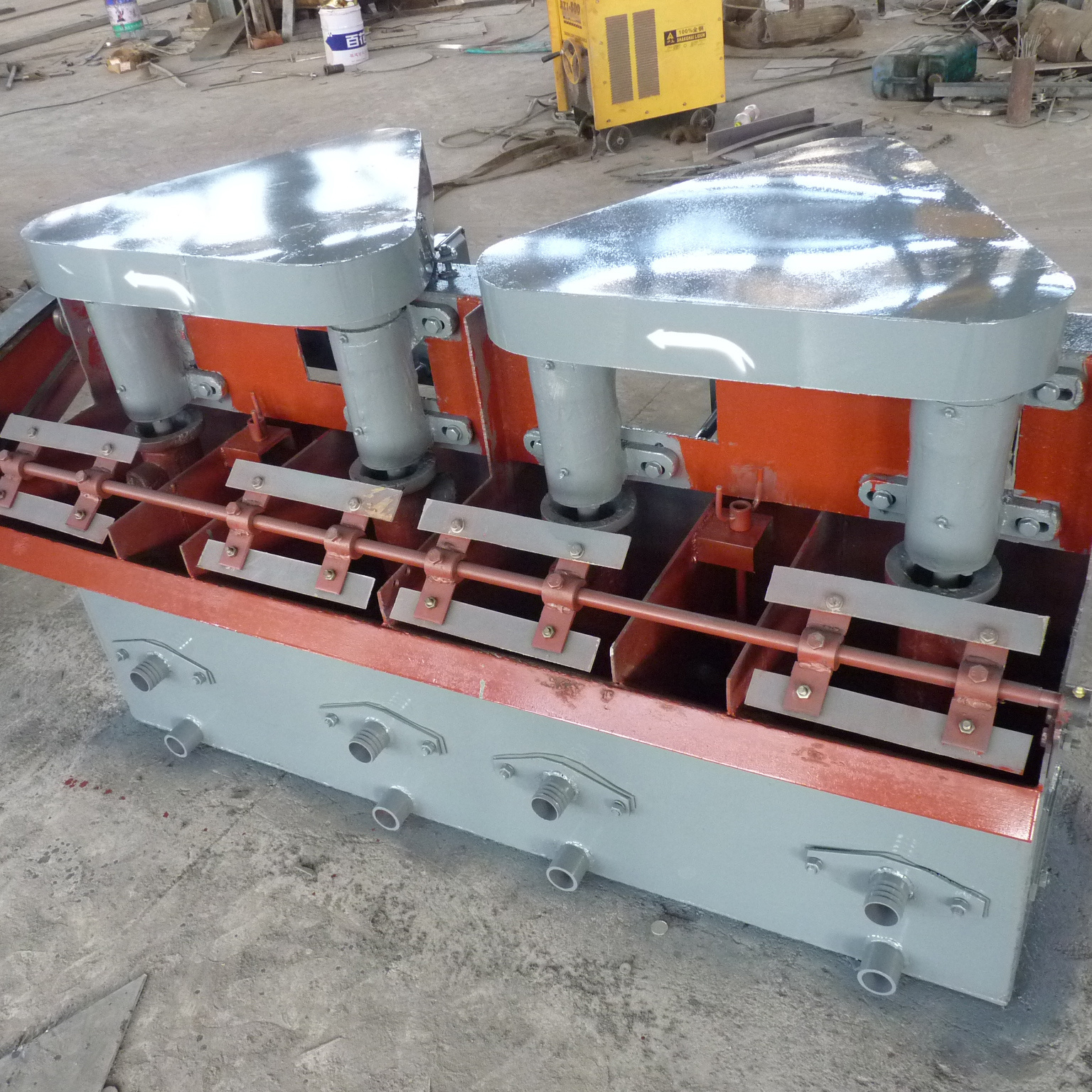

Lab SF 0.37 Flotation Machine
-
Flotation cell volume:
-
SF 0.37
-
Installation:
-
Engineer Guide
-
Application:
-
Mineral flotation testing
-
Impeller speed:
-
809RPM
-
Impeller dia:
-
200mm
-
Recovery rate:
-
85-95%
-
packing weight:
-
291.5KG
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Tongli gold wash plant
-
Voltage:
-
220V/380V/415V optional
-
Dimension(L*W*H):
-
110X95X85 cm, 110X95X85 cm
-
Weight:
-
280 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Lab SF 0.37 Flotation Machine
-
Flotation cell volume:
-
SF 0.37
-
Installation:
-
Engineer Guide
-
Application:
-
Mineral flotation testing
-
Impeller speed:
-
809RPM
-
Impeller dia:
-
200mm
-
Recovery rate:
-
85-95%
-
packing weight:
-
291.5KG
Technical Specifications
|
Model |
Impeller Diameter (mm) |
Impeller Rotational Speed (r/min) |
Capacity (m3/min) |
Main Motor |
Scraper Motor |
Size L×W×H
|
||||
|
Model |
Power (kW) |
Model |
Power (kW) |
|||||||
|
SF-0.15 |
200 |
536 |
0.06-0.18 |
Y100-6 |
1.5 |
Y80L-4 |
0.55 |
500×500×600 |
||
|
SF-0.37 |
296 |
386 |
0.2-0.4 |
Y90L-4 |
1.5 |
Y80L-4 |
0.55 |
700×700×750 |
||
|
SF0.7 |
350 |
400 |
0.3-0.9 |
Y100L-4 |
3 |
Y90S-4 |
1.1 |
820*900*950 |
||
|
SF-1.2 |
450 |
312 |
0.6-1.2 |
Y32M-6 |
5.5 |
90S-4 |
1.1 |
1100×1100×1100 |
||
|
SF-2.8 |
550 |
268 |
1.5-3.5 |
Y180L-6 |
11 |
Y100L-6 |
1.5 |
1700×1600×1150 |
||
|
SF-4 |
650 |
220 |
2-4 |
Y200L-8 |
15 |
Y100L-6 |
1.5 |
1850×2050×1200 |
||
|
SF-8 |
760 |
191 |
4-8 |
Y250M-8 |
30 |
Y100L-6 |
1.5 |
2200×2900×1400 |
||
|
SF-10 |
760 |
191 |
5-10 |
Y250M-8 |
30 |
Y100L-6 |
1.5 |
2200×2900×1700 |
||
Welcome to sent inquiry and welcome to visit our factory!
