Quick Details
-
Model Number:
-
2W Series
-
Brand Name:
-
ONNT
-
Product name:
-
2W025-08 2W025-25 2W160-15 2W200-20 Solenoid Valve
-
Fluid:
-
Air, Water, Gas, Oil
-
Body:
-
Brass Body
-
Valve type:
-
2/2 Way
-
Working Temperature:
-
-5-80℃
-
Working pressure:
-
0~1.0MPa
-
Viscosit limit:
-
Under 20CS
-
Action:
-
Intermally piloted type
-
Voltage:
-
AC220V AC110V DC12V DC24V
Quick Details
-
Port Size:
-
1/2 Inch
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2W Series
-
Brand Name:
-
ONNT
-
Product name:
-
2W025-08 2W025-25 2W160-15 2W200-20 Solenoid Valve
-
Fluid:
-
Air, Water, Gas, Oil
-
Body:
-
Brass Body
-
Valve type:
-
2/2 Way
-
Working Temperature:
-
-5-80℃
-
Working pressure:
-
0~1.0MPa
-
Viscosit limit:
-
Under 20CS
-
Action:
-
Intermally piloted type
-
Voltage:
-
AC220V AC110V DC12V DC24V

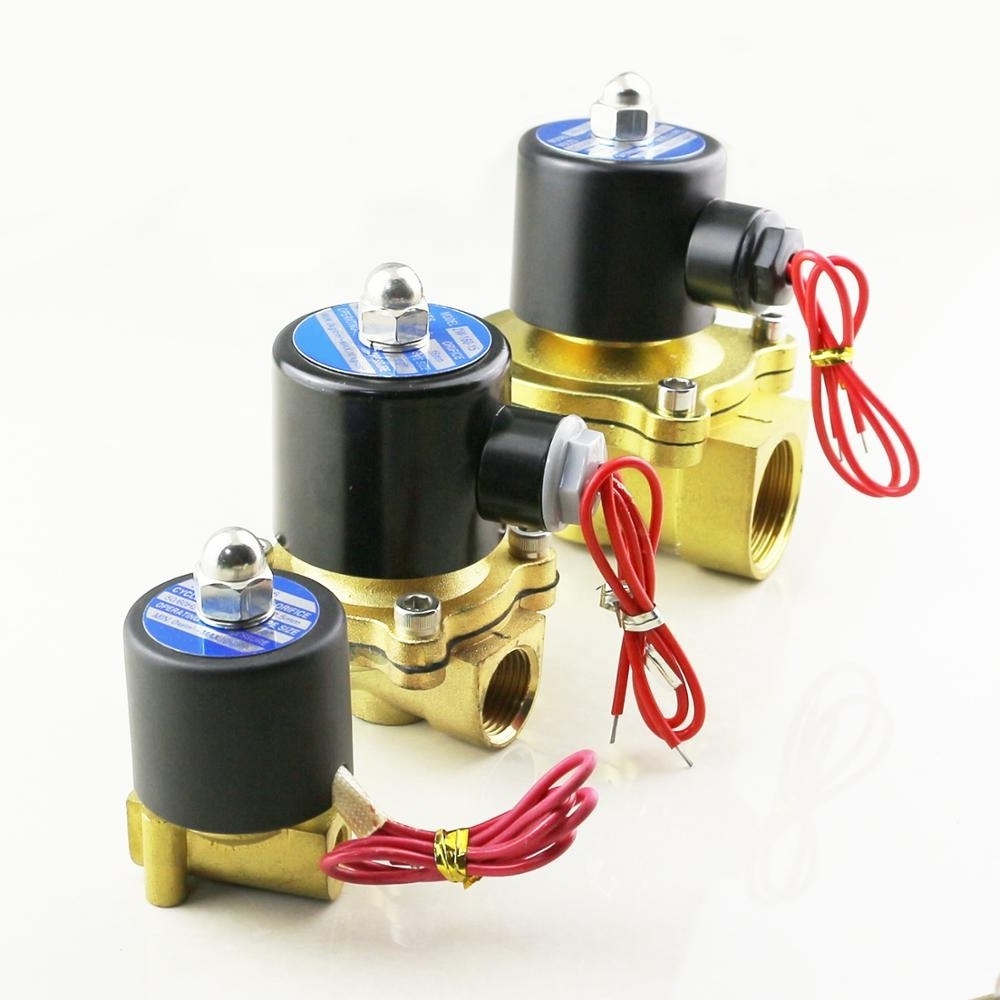

22W025-08 2W160-15 2W200-20 2W250-25 1 1/2 1/4 3/4 3/8 Inch Air Control Gas Electromagnetic Brass Water Solenoid Valve
Ordering Code
2W 160 15 - AC220V
Series Orifice size Port size Voltage
2/2 way 025: 2.5mm 08: 1/4'' DC12V
040: 4mm 10: 3/8'' DC24V
160:16mm 15: 1/2'' AC220V 50/60Hz
200:20mm 20: 3/4'' AC24V 50/60Hz
250:25mm 25: 1'' AC110V 50/60Hz
350:35mm 35: 1-1/4'' AC380V 50/60Hz
400:40mm 40: 1-1/2''
500:50mm 50: 2''
Specifications
| Model | 2W025-08 | 2W040-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| Fluid | Air,Water,Oil (filterd through 40u filter element) | |||||||
| Action | Internally piloted type | |||||||
| Type | Normally closed type | |||||||
| Effective area(mm²) | 2.5 | 4 | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Port size | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' |
|
Operating Pressure |
Water & Oil :0-5bar ; Air:0-7bar |
|||||||
|
Proof Pressure |
0-10bar | |||||||
| Fluid Temperature | -5~85℃ | |||||||
| Voltage range | ±10% | |||||||
| Body | Brass | |||||||
| Seal | NBR | |||||||
