Quick Details
-
Production Capacity:
-
30-60bags/minute
-
Weight (KG):
-
450
-
Voltage:
-
220V 50/60Hz 1.4KW
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ChaMa
-
Dimension(L*W*H):
-
1310*1410*2100mm
-
Product name:
-
Tea Bag Packing Machine
-
supply voltage(V/Hz):
-
220V
-
After-sales Service Provided:
-
Video Technical SupportOnline Support
-
Main Function:
-
Packing Sealing Wrapping Packaging
-
Usage:
-
Filling Packing Machine
-
Packing speed:
-
10-45 bags/min
-
Bag type:
-
3/4 Sides Seal
-
Keyword:
-
Packaging Machinery Equipment
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
Quick Details
-
Function:
-
FILLING, Sealing, counting
-
Packaging Type:
-
Bags, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper, Metal
-
Production Capacity:
-
30-60bags/minute
-
Weight (KG):
-
450
-
Voltage:
-
220V 50/60Hz 1.4KW
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ChaMa
-
Dimension(L*W*H):
-
1310*1410*2100mm
-
Product name:
-
Tea Bag Packing Machine
-
supply voltage(V/Hz):
-
220V
-
After-sales Service Provided:
-
Video Technical SupportOnline Support
-
Main Function:
-
Packing Sealing Wrapping Packaging
-
Usage:
-
Filling Packing Machine
-
Packing speed:
-
10-45 bags/min
-
Bag type:
-
3/4 Sides Seal
-
Keyword:
-
Packaging Machinery Equipment
-
Machine type:
-
Automatic Bag Forming Filling Sealing Machine
Products Description
|
Model
|
TTP-06(6sets electronic scales)
|
|
bag size
|
W：60-80(mm)
L：40-80(mm) |
|
Packing speed
|
80-100 bags/min
|
|
Measuring range
|
0.5-10g
|
|
Power
|
220V/2.0KW,Single phase 50/60HZ
|
|
Air pressure
|
≥0.6mpa
|
|
Machine weight
|
450kg
|
|
Machine size(L*W*H)
|
1310*1410*2100mm
|
Usage：

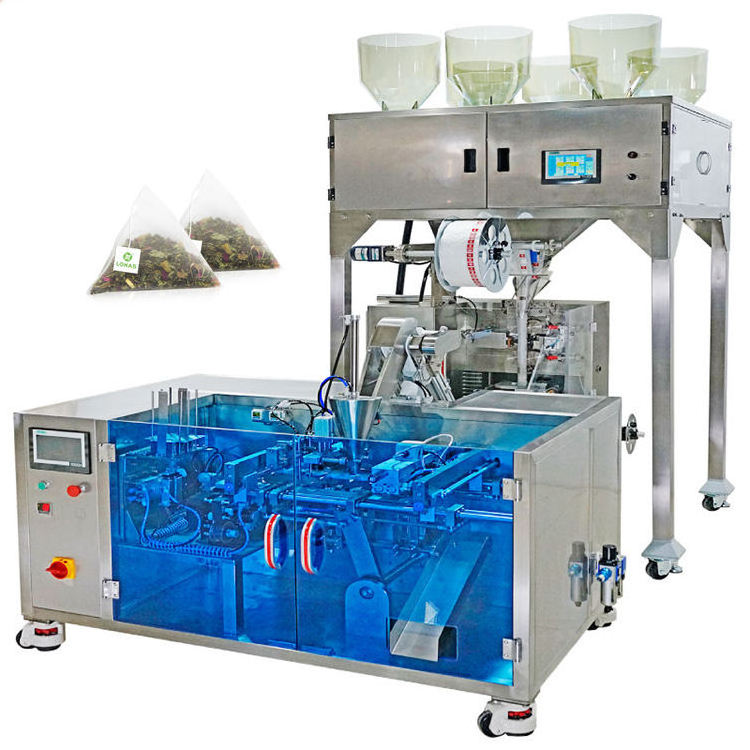

This machine is applicable for food and medicine packaging industry, and suitable for green tea, black tea, scented tea, coffee,healthy tea, flower tea, herbal tea and other granules. It is a high technology, fully automatic equipment to make the new style pyramid tea bags.
Features:
* This machine is used for packing two kinds of tea bags :flat bags, dimensional pyramid bag.
* This machine can automatically complete feeding, measuring, bag making, sealing, cutting, counting and product conveying.
* Adopt accurate control system to adjust the machine;
* PLC control and HMI touch screen , for easy operation, convenient adjustment and simple maintenance.
* Bag length are controlled double servo motor drive, to realize stable bag length, positioning accuracy and convenient
adjustment.
* Imported ultrasonic device and electric scales filler for accuracy feeding and stable filling.
* Automatic adjust the packing material size.
* Fault alarm and shut down whether it has something trouble.
* This machine can automatically complete feeding, measuring, bag making, sealing, cutting, counting and product conveying.
* Adopt accurate control system to adjust the machine;
* PLC control and HMI touch screen , for easy operation, convenient adjustment and simple maintenance.
* Bag length are controlled double servo motor drive, to realize stable bag length, positioning accuracy and convenient
adjustment.
* Imported ultrasonic device and electric scales filler for accuracy feeding and stable filling.
* Automatic adjust the packing material size.
* Fault alarm and shut down whether it has something trouble.
