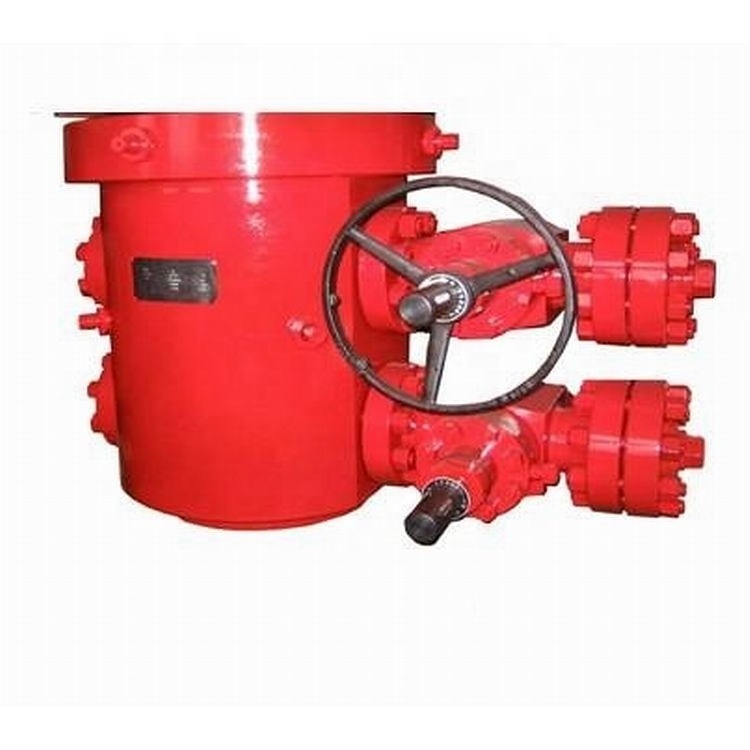

API 6A 9 5/8" wellhead casing head and tubing head assembly for oilfield

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: OilMan

Product name:: API 6A 9 5/8" wellhead casing head and tubing head assembly

Nominal Bore:: 7" - 20"

Working pressure:: 2000 ~20000psi

Working medium:: oil,natural gas and gas containing H2S,CO2

Specification level:: PSL1-4

Material Class:: AA,BB,CC,DD,EE,FF,HH

Certification:: API 6A

Quick Details

Weight (KG):: 700

Marketing Type:: Hot Sale Product

Place of Origin:: Shandong, China

Brand Name:: OilMan

Product name:: API 6A 9 5/8" wellhead casing head and tubing head assembly

Nominal Bore:: 7" - 20"

Working pressure:: 2000 ~20000psi

Working medium:: oil,natural gas and gas containing H2S,CO2

Specification level:: PSL1-4

Material Class:: AA,BB,CC,DD,EE,FF,HH

Certification:: API 6A

API 6A 9 5/8" wellhead casing head and tubing head assembly for oilfield

Product Description

The casing head, a component conne c ting the casing to the wellhead assembly of various types and sizes, is used to support the both the intermediate (protective) string and the production string ,and to seal up the annular space between the casings,thus providing a crossover connection for the installation of the bop ,the tubing head,the Christmas tree and other top wellhead components. It is also used to inject additional cement slurry or balance fluid,monitor the well sink,and execute other operati ng through both of the two bypass holes in the casing head body.

Connection Forms between Casing Head and Surface Casing
* Threaded bottom type
* Welded bottom type
* Slip bottom type

Technical Parameter

Product Name	Casing Head
Working Pressure	2000 ~ 2 0000psi
Nominal Bore	7" ~20"
Working Medium	oil, natural gas , mud and gas containing H2S , CO2
Working Temperature	-46°C~ 121°C ( Class LU )
Material Class	AA, BB , CC , DD , EE , FF , HH
Specification level	PSL1-4
