Quick Details
-
Input:
-
2x3G/HD/SD-SDI/DVB-ASI
-
Output:
-
8x3G/HD/SD-SDI/DVB-ASI
-
Function:
-
One 1x8 or two 1x4 distribution
-
Amplitude:
-
800mVp-p±10%
-
Switch:
-
Switch mode by dial switch
-
Feature:
-
Support power off pass through
-
Input Impedance:
-
75Ω
-
Connector:
-
BNC
-
Power:
-
AC 110~260V 50Hz/60Hz
-
Temperature Range:
-
0~40℃(operation), -20~80℃(storage)
Quick Details
-
Brand Name:
-
Yukuan
-
Model Number:
-
YUK506-V1
-
Place of Origin:
-
Beijing, China
-
Input:
-
2x3G/HD/SD-SDI/DVB-ASI
-
Output:
-
8x3G/HD/SD-SDI/DVB-ASI
-
Function:
-
One 1x8 or two 1x4 distribution
-
Amplitude:
-
800mVp-p±10%
-
Switch:
-
Switch mode by dial switch
-
Feature:
-
Support power off pass through
-
Input Impedance:
-
75Ω
-
Connector:
-
BNC
-
Power:
-
AC 110~260V 50Hz/60Hz
-
Temperature Range:
-
0~40℃(operation), -20~80℃(storage)
YUK506-V1

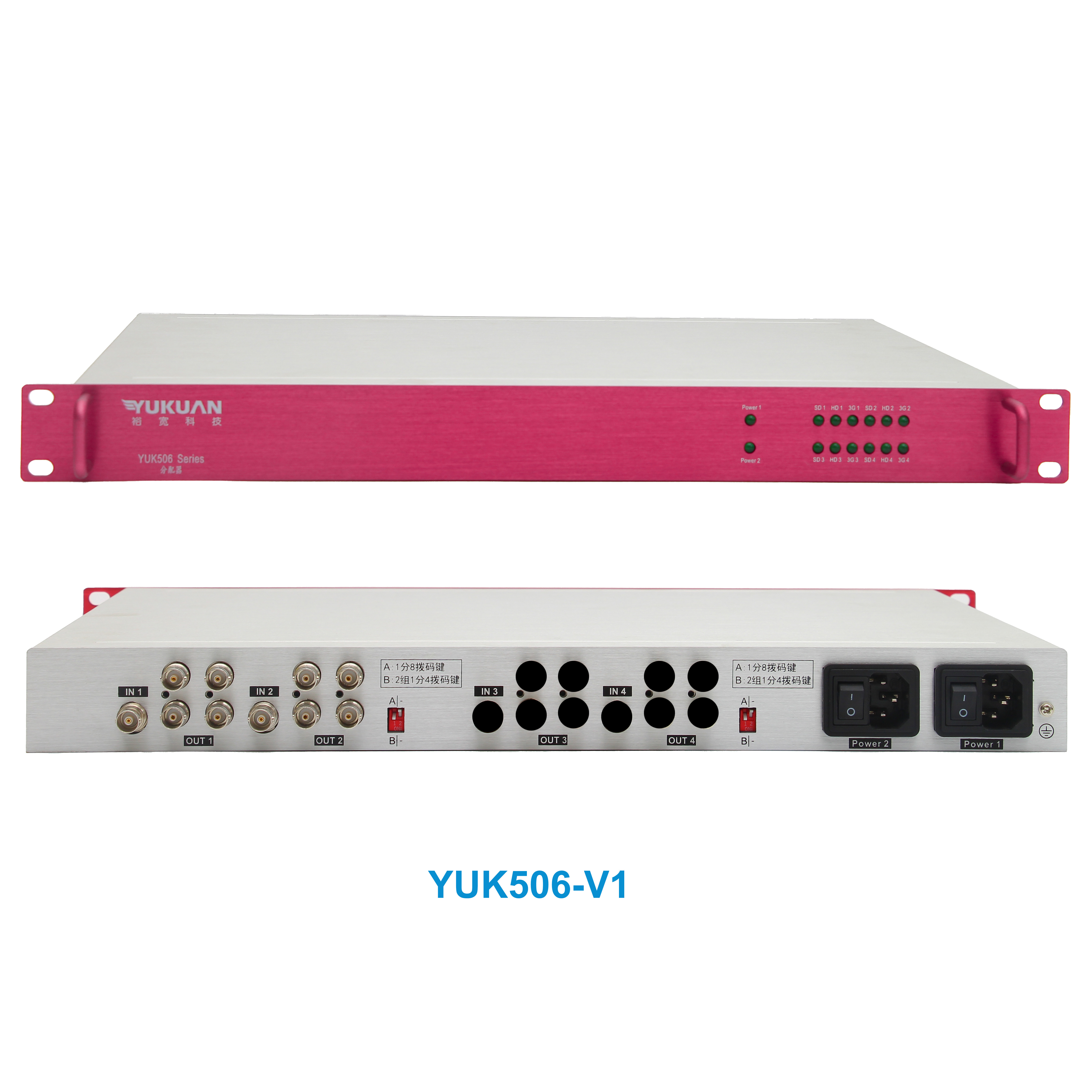

Broadcast One 1x8 or Two 1x4 Digital Video 3G/HD/SD-SDI/DVB-ASI Distributor Splitter 1U Rack
Product Overview
YUK506-V1 digital video distributor can perform 8-distribution or 4-distribution output of 3G-SDI/HD-SDI/SD-SDI/ASI signals, and use the dial switch to switch the mode. It maximum supports up to one 1*8 or two 1*4 distribution. If the power is off, one of the SDI OUT1(SDI OUT1 next to the SDI IN1) can still output SDI input(IN1) normally.
Product Feature
* One 1*8 distribution or two 1*4 distribution, switch mode by dial switch
* Support power off pass through. If the power is off, one of the SDI OUT1(SDI OUT1 next to the SDI IN1) can still output
* Support 3G-SDI, HD-SDI,SD-SDI, DVB-ASI signal, SMPTE 259M, SMPTE 292M format signal, and digital signals with bit
* Support power off pass through. If the power is off, one of the SDI OUT1(SDI OUT1 next to the SDI IN1) can still output
SDI input(IN1) normally
* Support 3G-SDI, HD-SDI,SD-SDI, DVB-ASI signal, SMPTE 259M, SMPTE 292M format signal, and digital signals with bit
rate between 10Mbps and 1.485Gbps
Specification
|
Parameter
|
Typical Value
|
|
|
Input
|
|
|
|
Signal Format
|
3G-SDI, HD-SDI, SD-SDI, DVB-ASI
|
|
|
Return Loss
|
>15dB@2970Mbps >15dB@1485Mbps
|
|
|
Input Automatic Cable Equalization
|
>250m@270Mbps (Equivalent Belden1694A cable)
>100m@1485Mbps (Equivalent Belden1694A cable) |
|
|
Impedance
|
75Ω
|
|
|
Connector
|
BNC
|
|
|
Output
|
|
|
|
Signal Format
|
3G-SDI, HD-SDI, SD-SDI, DVB-ASI
|
|
|
Impedance
|
75Ω
|
|
|
Connector
|
BNC
|
|
|
Amplitude
|
800mVp-p±10%
|
|
|
Index
|
|
|
|
Shaking
|
＜0.2UI
|
|
|
Overshoot
|
＜10% range
|
|
|
Rise/Fall Time
|
<270ps@1485Mbps <800ps@270Mbps
|
|
|
Power Consumption
|
4W
|
|
|
Operation Environment
|
|
|
|
Operation Temperature
|
0 ~ +55℃
|
|
|
Power
|
AC 110~260V 50Hz/60Hz
|
|
|
Relative Humidity
|
10% ~ 90%
|
|
