Quick Details
-
Material:
-
1.0mm cold rolled steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WALITON
-
Model Number:
-
WLT-17008
-
Usage:
-
small projects DVD cases or keyboard tray
-
PRODUCT NAME:
-
17mm Grooved Drawer Runners
-
CLOSE lENGTH RANGE:
-
200mm -500mm
-
EXTENSION TRAVEL:
-
Single Extension
-
DRAWER SLIDE INSTALLATION CLEARANCE:
-
9.8mm (Side Mount clearance )
-
DRAWER SLIDE CROSS-SECTION WIDTH:
-
17mm
-
FINISH:
-
Clear Zinc Plated
-
SPECIAL FEATURES:
-
Bent down tabs providing bottom mount
-
DWAWER SLIDE MATERIAL THICKNESS:
-
1.0 x 1.0
-
LOADING RATE:
-
10kgs / 22lbs
-
CYCLE TESTING:
-
20000
Quick Details
-
Application:
-
Kitchen, Bathroom, Home Office, Living Room, Bedroom, Hotel, Apartment, Hospital, School, tool box drawers, tool chest drawers, WOODWORKING INDUSTRIES, Jewelry Boxes, DVD storage cases
-
Design Style:
-
Modern
-
Type:
-
Bent Down Tabs Mount Ball Bearing
-
Material:
-
1.0mm cold rolled steel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WALITON
-
Model Number:
-
WLT-17008
-
Usage:
-
small projects DVD cases or keyboard tray
-
PRODUCT NAME:
-
17mm Grooved Drawer Runners
-
CLOSE lENGTH RANGE:
-
200mm -500mm
-
EXTENSION TRAVEL:
-
Single Extension
-
DRAWER SLIDE INSTALLATION CLEARANCE:
-
9.8mm (Side Mount clearance )
-
DRAWER SLIDE CROSS-SECTION WIDTH:
-
17mm
-
FINISH:
-
Clear Zinc Plated
-
SPECIAL FEATURES:
-
Bent down tabs providing bottom mount
-
DWAWER SLIDE MATERIAL THICKNESS:
-
1.0 x 1.0
-
LOADING RATE:
-
10kgs / 22lbs
-
CYCLE TESTING:
-
20000
Products Description
|
THE PRODUCTS SPECIFICATIONS
|
|
|
|
Product Name
|

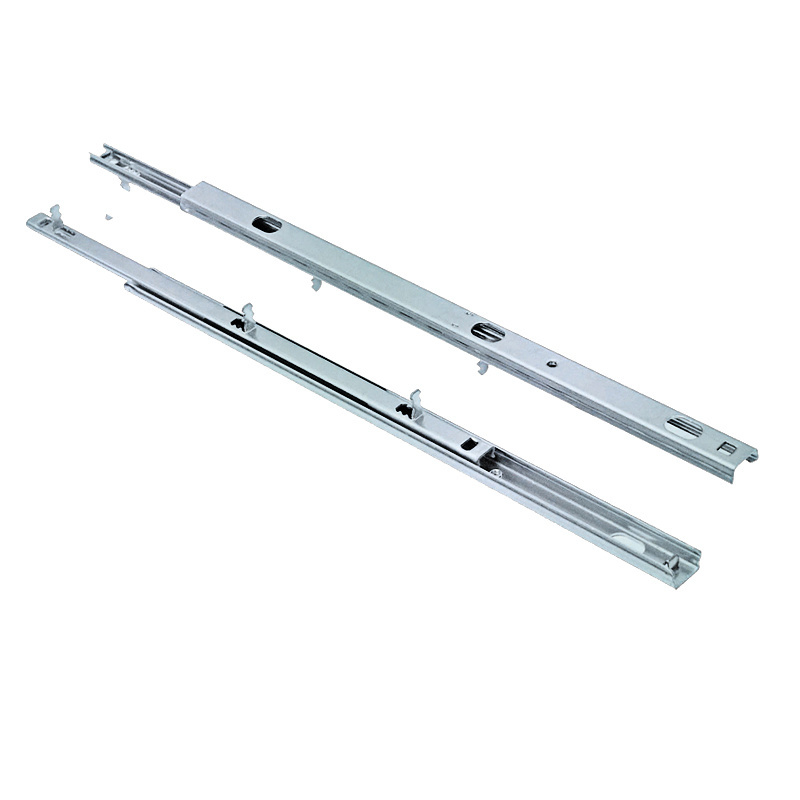

Bent Down Tabs Mount Slim-Line Drawer Accessories Sliding Under-Desk Pencil 17mm Grooved Drawer Runners
|
|
|
Item No.
|
WLT-17008
|
|
|
Drawer Slide Cross-Section Profile Width
|
17mm
|
|
|
Drawer Slide Section Steel Thickness
|
1.0 x 1.0mm
|
|
|
Drawer Slide Rail Load Rate
|
10kgs / 22lbs
|
|
|
Extension
|
Single extension
|
|
|
Finish
|
Clear Zinc Plated
|
|
|
Feature
|
17mm height Grooved Mounted Drawer Runners,bent down tabs for bottom mount
|
|
|
Applications
|
small projects jewelry boxes or DVD storage cases, institutional furniture applications store fixtures, KV Desk Pencil Drawer,
Partial Extension Shallow Drawer. under desk keybaord tray |
|
Recommend Products
Manufacturing and Packaging
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The Drawer Slides Production Manufacturing
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The Drawer Slides Production Packaging
As usually, one sets drawer slide will be packed in a PE bag,
20
PE bags packed in a Carton.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
