Quick Details
-
Brand Name:
-
SUCHEN
-
Model Number:
-
ATSQ2Y
-
Max. Current:
-
800A
-
Rated current:
-
10~1250A
-
Poles:
-
3P/4P
-
Warranty:
-
1 Year
-
Material:
-
Class CB
-
Handle:
-
YES
-
OEM:
-
Yes
-
Type:
-
Mould Case Circuit Breaker
-
Package:
-
Standard Export Packing
-
Express:
-
DHL,TNT, EMS, FEDEX or as your request
-
Product name:
-
Intelligent double power automatic transfer switch
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUCHEN
-
Model Number:
-
ATSQ2Y
-
Max. Current:
-
800A
-
Rated current:
-
10~1250A
-
Poles:
-
3P/4P
-
Warranty:
-
1 Year
-
Material:
-
Class CB
-
Handle:
-
YES
-
OEM:
-
Yes
-
Type:
-
Mould Case Circuit Breaker
-
Package:
-
Standard Export Packing
-
Express:
-
DHL,TNT, EMS, FEDEX or as your request
-
Product name:
-
Intelligent double power automatic transfer switch
-
Certification:
-
CE
Thanks for using our company products. We will provide reliable quality and dedicated service to allow you to rest assured to use our company products. Before installation, circuit connection, running and maintenance, please make sure to read carefully the user manual, to ensure the correct using, during using please also make sure know very well of relative safety and caution items.

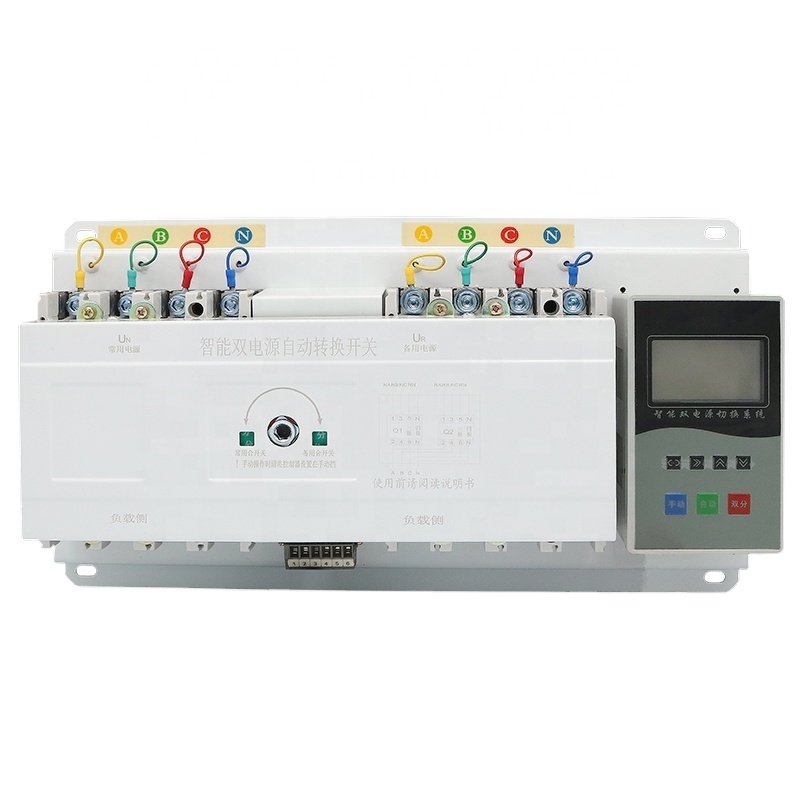

RH-ATSQ2Y dual power automatic transfer switch (hereinafter referred to as A.T.S) for 50Hz / 60Hz, the rated operating voltage is 380V (3P, 4P), and the rated current is 10A~1250A (double loop power supply system). It can convert the normal power and reversed power automatically to ensure the reliability of the power, mainly for high -rise buildings, shopping malls, fire pumps, smoke fans, elevators, life water pumps, accident lighting and other places. This product complies with GB/T14048.11 standard.
| Model / Size | W | W1 | L | L1 | H |
| ATSQ2Y-63/3P | 380 | 345 | 240 | 220 | 140 |
| ATSQ2Y-63/4P | 380 | 345 | 240 | 220 | 140 |
| ATSQ2Y-100/3P | 420 | 385 | 240 | 220 | 140 |
| ATSQ2Y-100/4P | 420 | 385 | 240 | 220 | 140 |
| ATSQ2Y-225/3P | 470 | 435 | 240 | 220 | 150 |
| ATSQ2Y-225/4P | 470 | 435 | 240 | 220 | 160 |
| ATSQ2Y-400/3P | 615 | 555 | 330 | 300 | 200 |
| ATSQ2Y-400/4P | 615 | 555 | 330 | 300 | 200 |
| ATSQ2Y-630/3P | 680 | 620 | 330 | 300 | 200 |
| ATSQ2Y-630/4P | 740 | 680 | 330 | 300 | 200 |
| ATSQ2Y-800/3P | 725 | 670 | 330 | 300 | 200 |
| ATSQ2Y-800/4P | 790 | 735 | 330 | 300 | 200 |
