Quick Details
-
Dimension(L*W*H):
-
ACCORDING TO DIFFERENT MODEL
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
20000 KG
-
Easy structure:
-
Reasonable
-
Certificate:
-
CE
-
Identification:
-
ISO9001:2000
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qingdao guangyue
-
Voltage:
-
380v 220v
-
Dimension(L*W*H):
-
ACCORDING TO DIFFERENT MODEL
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
20000 KG
-
Easy structure:
-
Reasonable
-
Certificate:
-
CE
-
Identification:
-
ISO9001:2000

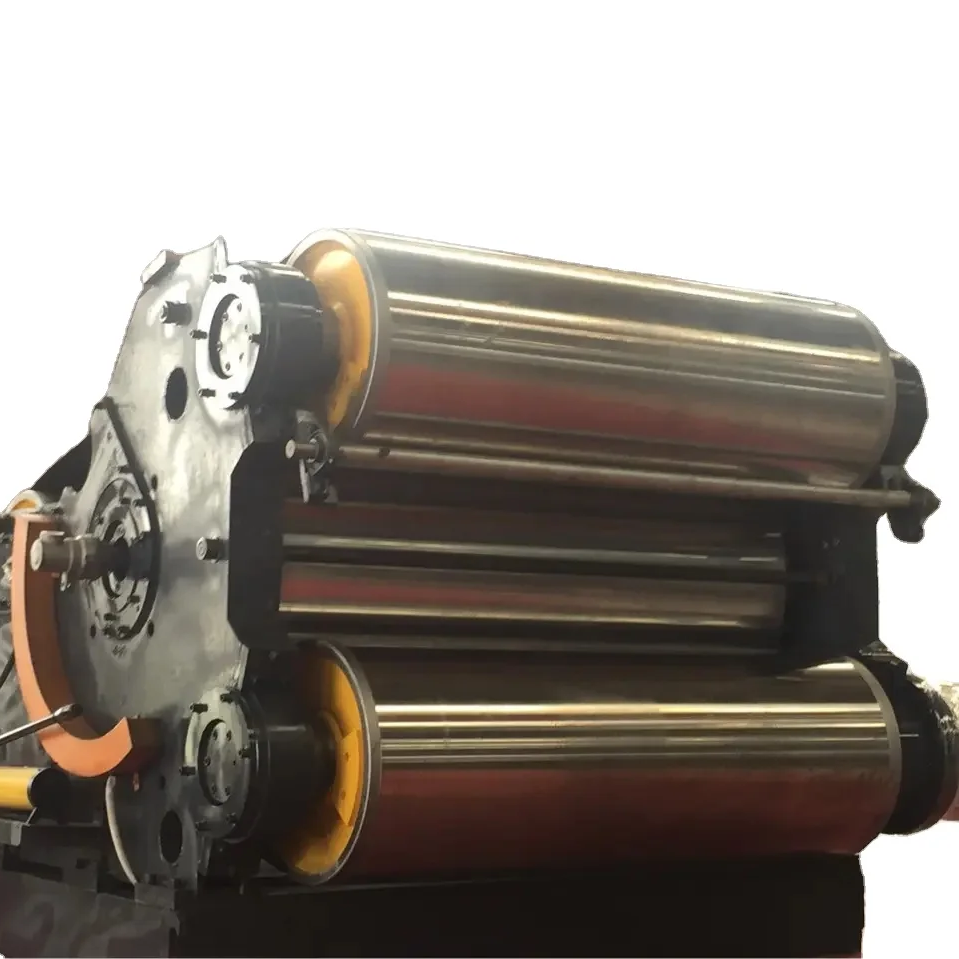

Rubber Rotocure vulcanizer Press machine for rubber conveyor belt
Rubber machine (Rotocure) is suitable for continuous vulcanization of various kinds of rubber blanket; rubber sheet, light conveyer belt (circular belt) ; printing blanket; rubber and plastic blanket; etc.
|
model Item |
DLG700×1400-1800 |
DLG1100×2000 |
DLG1500×2000-2500 |
DLG2000×2500-4200 |
||
|
Max. product width |
mm |
1200-1600 |
2000 |
2000-2500 |
2500-4200 |
|
|
Max. product thickness |
mm |
0.5-5 |
0.756 |
16 |
16 |
|
|
Drum dia. |
mm |
700 |
1100 |
1500 |
2000 |
|
|
Drum working width |
mm |
1400-1800 |
2200 |
2350-2750 |
2750-4200 |
|
|
Total pulling force of steel belt |
T |
38-49 |
90 |
93.6-117 |
120-144 |
|
|
The linear speed of vulcanizing drum |
r/min |
1.12-0.04 |
0.06-1.8 |
0.175-3.14 |
0.24-4.7 |
|
|
Steam pressure |
MPa |
0.6 |
≤0.8 |
≤1 |
≤1 |
|
|
Vulcanizing temperature |
|
1140-160 |
140-160 |
160-180 |
160-180 |
|
|
Main motor power |
KW |
5.5 |
7.5 |
7.511 |
1530 |
|
|
Overall dimensions |
L |
mm |
8300 |
10000 |
1350 |
18600 |
|
W |
mm |
4400-4830 |
4900 |
5200 |
4650-6200 |
|
|
H |
mm |
2100 |
2600 |
6085 |
6285 |
|
|
About weight |
T |
20-30 |
42 |
79 |
80-126 |
|
