Quick Details
-
Voltage:
-
380V/50HZ/3P
-
Disc Dia.:
-
250
-
No Load Speed:
-
0.25-0.35m/s, 0.25-0.35m/s
-
Place of Origin:
-
Guangdong CHINA
-
Brand Name:
-
BWD
-
Model Number:
-
BWD-65
-
Warranty:
-
12 MONTHS
-
Model:
-
BWD-65
-
USAGE:
-
PAINTING & BAKING
-
COLOR:
-
CUTOMIZED
-
Wall Panel:
-
EPS or Rock Wool
-
Metal basement:
-
YES
-
WATER-BASED PAINTING:
-
CUTOMIZED
-
Certification:
-
CE
Quick Details
-
Power:
-
15KW
-
External Size:
-
7110*5570*3810 MM
-
Internal Size:
-
7000*4000*2700 MM, 7000*4000*2700 MM
-
Voltage:
-
380V/50HZ/3P
-
Disc Dia.:
-
250
-
No Load Speed:
-
0.25-0.35m/s, 0.25-0.35m/s
-
Place of Origin:
-
Guangdong CHINA
-
Brand Name:
-
BWD
-
Model Number:
-
BWD-65
-
Warranty:
-
12 MONTHS
-
Model:
-
BWD-65
-
USAGE:
-
PAINTING & BAKING
-
COLOR:
-
CUTOMIZED
-
Wall Panel:
-
EPS or Rock Wool
-
Metal basement:
-
YES
-
WATER-BASED PAINTING:
-
CUTOMIZED
-
Certification:
-
CE
|
SPECIFICATION
|
|
|
|
MODEL
|

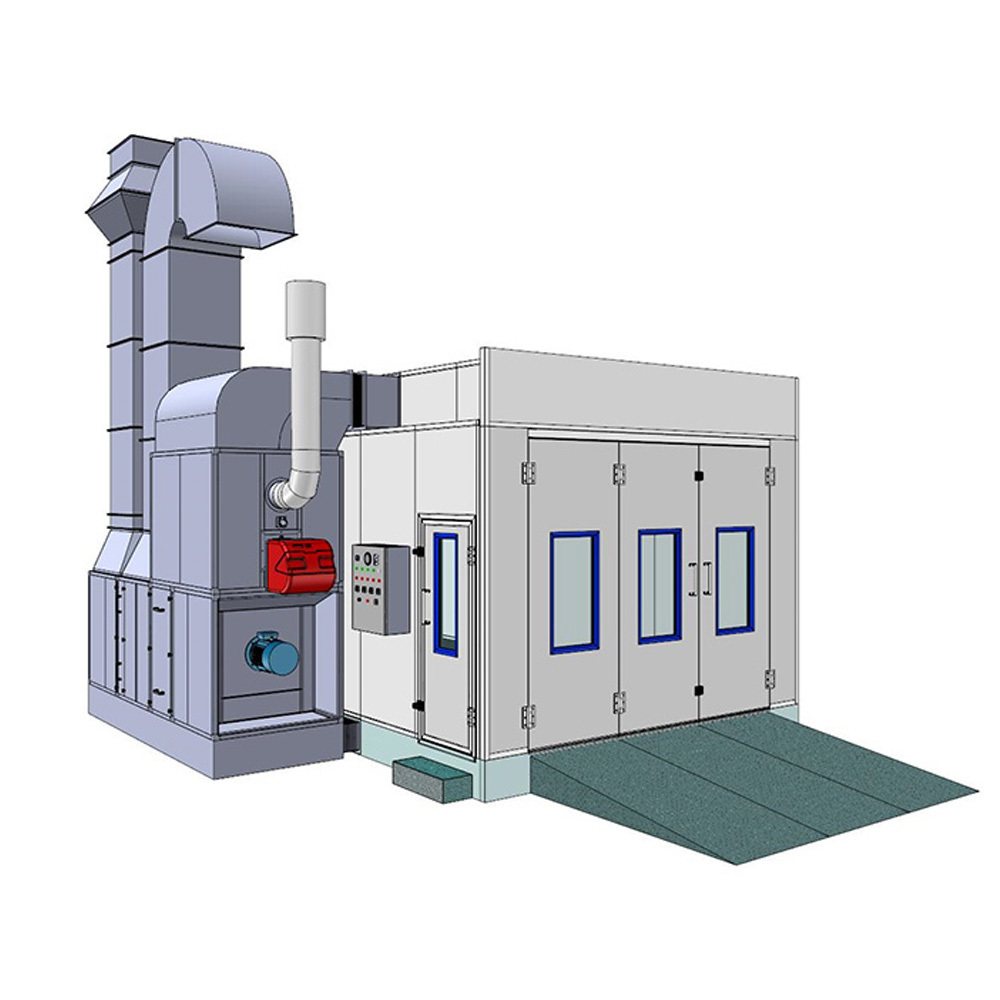

STANDARD SPRAY BOOTH BWD-65
|
|
|
BOOTH DIMENSIONS
|
|
|
|
EXTEMAL SIZE (L*B*H)
|
7110*5570*3810 mm
|
|
|
INTERAL SIZE(L*B*H)
|
7000*4000*2700 mm
|
|
|
FOUNDTION AND FLOOR
|
|
|
|
FOUNDTION
|
FULL METAL FOUNDATION, TWO ROWS FLAT STEEL GRIDS AND THREE ROWS METAL NON-SLIP DIAMOND PLATES
|
|
|
SURFACE AREA OF FOUNDATION
|
10M2(AREA OF GRIDS)
|
|
|
DRIVE- IN RAMPS
|
3 UITS, EACH SIZE:2000*1030 mm, DIAMOND PLATE CONSTRUCTION
|
|
|
METAL BASEMENT
|
350mm HEIGHT, THE VENTILATION EFFECT IS BETTER THAN TRADITIONAL SPRAY BOOTH
|
|
|
WALL AND DOOR
|
|
|
|
WALLBOARD AND ROOF PANEL
|
SIDE WALL PANELS ADOPT HIGHT QUALITY DOUBLE CONSTRUCTION FIREPROOF EPS INSULATION METERIALS,THICKNESS IS 50MM,
|
|
|
ROOF PANEL
|
ROOF PANELS ADOPT GALVANIZED STEEL PLATE BENDING FORMING
|
|
|
3-FOLDED ENTRANCE DOOR WITH SAFETY GLASS WINDOW
|
1 SET,SIZE:3200*2700 mm (B * H),SIZE IS BIGGER THAN TRADITIONAL SPRAY BOOTH
|
|
|
OPERATOR'S DOOR WITH SAFETY GLASS WINDOWS
|
ONE SET,700*2000 mm (B*H),HAND-MADE,TEMPERING GLASS OBSERVATION WINDOW
|
|
|
LIGHTING
|
|
|
|
CEILING LIGHTINGS
|
8 SSETS , EACH SET 4 * 36W,TOTAL 1152W , GRADE OF LIGHTING BOX'S DUSTPROOF AND WATERPROOF REACH IP54 GRADE.
|
|
|
SIDE LIGHTING
|
8 UNITS, EACH SET 2*36W,TATAL 576W, GRADE OF LIGHTING BOX'S DUSTPROOF AND WATERPROOF REACH IP54 GRADE.
|
|
|
BRIGHTNESS
|
≥1000 LUX
|
|
|
FILTRATION SYSTEM
|
|
|
|
PRE-FILTERS
|
GRADE EU3 PLATE TYPE FIBR GLASS FILTER
|
|
|
CEILING FILTERS
|
EU5 GRADE HIGH EFFICIENT FILTER
|
|
|
EXHAUST FILTEERS & BOTTOM FILTER
|
FIBREGLASS PAINT-STOP FILTER
|
|
|
VENTILATION SYSTEM
|
|
|
|
DIRECT DRIVE MOTOR(INLET FAN)
|
ADOPT BIG IMPELLER TURBO FAN,7.5KW
|
|
|
OUTLET FAN
|
ADOPT BIG IMPELLER TURBO FAN,7.5KW
|
|
|
PAINTING AND BAKING EXCHANGE SYSTEM
|
SOLENOID VALVE + PRESSURE REGULATOR TO CONTROL THE CYLINDER DRIVE DAMPER EXCHANGE
|
|
|
FAN CAPACITY
|
25000 m3/H
|
|
|
AIR FLOW SPEED
|
0.23m/s IN EMPTY BOOTH,0.25-0.35m/s IN LOADED BOOTH
|
|
|
HEATING SYSTEM
|
|
|
|
HEATING EXCHANGER
|
ADOPT HIGH EFFICIENT HEAT-RESISTANT STAINLESS STEEL AS CYCLING HEAT EXCHANGER
|
|
|
HEATING TIME
|
4-6 MINUTES(FROM 20 TO 60OC)UNDER BAKING STATUS,MAX BAKING TEMPERATURE IS 80OC
|
|
|
BURNER MODEL
|
ADOPT ITALY RIELLO DIESEL BURNER RG5S (260000 KCAL/H)
|
|
|
CONTROL BOX
|
STANDARD Y/∆ STEP-DOWN START CONTROL SYSTEM
|
|
|
PLC CONTROLLER
|
PLC CONTROL , MORE RELIABLE AND LOWER BREAKDOWN CABIN
|
|
|
PRESSURE TESTING
|
THE PRESSURE GAUGE INDICATE THE PRESSURE INSIDE CABIN
|
|
|
CONTROL SYSTEM
|
PAINTING ,WARM PAINTING,BAKING,LIGHTING, EMERGENCY STOP SWITCH, FAILURE INDICATION,OVER-TEMPERATURE ALARM INDICATION BAKING DELAY
STOP PROTECTION |
|
