Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIAN HONGYUAN
-
Model Number:
-
GG
-
Type:
-
500*500*40
-
Material:
-
HDPE
-
Keyword:
-
HDPE Grass Paving Grids
-
Color:
-
Customized
-
Function:
-
Protect Turf
-
Usage:
-
Greening System
-
Height:
-
40mm 50mm 70mm
-
Length:
-
500MM
-
Advantage:
-
Easy Set
-
Width:
-
410mm-500mm
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIAN HONGYUAN
-
Model Number:
-
GG
-
Type:
-
500*500*40
-
Material:
-
HDPE
-
Keyword:
-
HDPE Grass Paving Grids
-
Color:
-
Customized
-
Function:
-
Protect Turf
-
Usage:
-
Greening System
-
Height:
-
40mm 50mm 70mm
-
Length:
-
500MM
-
Advantage:
-
Easy Set
-
Width:
-
410mm-500mm
Products Description

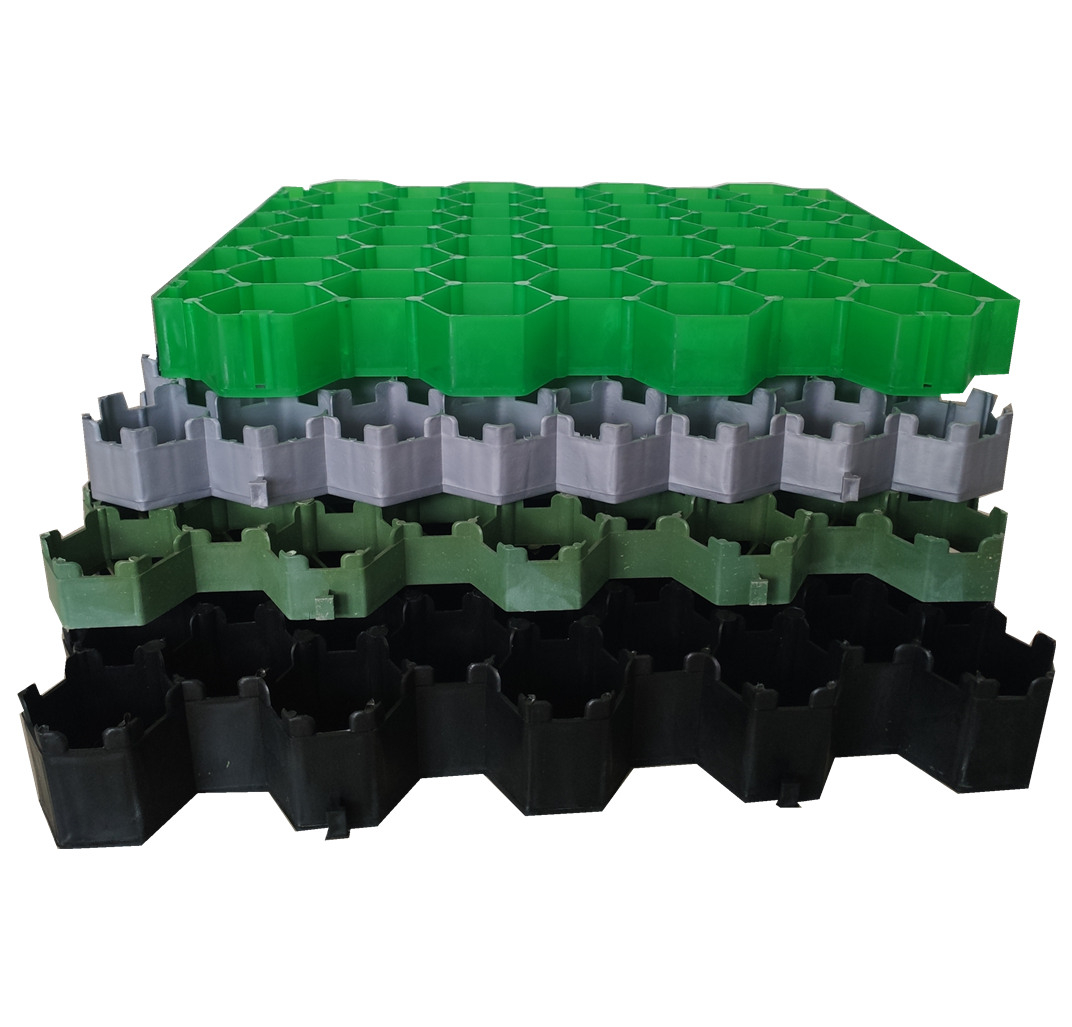

Grass paver grid
The grass planting grid uses modified high molecular weight HDPE as raw material, which is green and environmentally friendly and fully recyclable: it perfectly realizes the combination of lawn and parking lot.The grass planting grid is pressure-resistant, wear-resistant, impact-resistant, anti-aging and corrosion-resistant, which improves the quality and saves investment; the unique flat-plug lap joint is labor-saving and fast, and the expansion joints can be adjusted.
Function
1. Environmentally friendly, non-toxic, non-polluting, impact-resistant, anti-aging, anti-ultraviolet;
2. Good wear resistance, corrosion resistance and flame retardancy, and strong grass planting function;
3. Reduce ground reflection and ground heat radiation;
4. Reduce ground sound wave transmission and reduce noise pollution;
5. Rainwater leaks naturally, no soil loss, no water accumulation
6. Reduce dust and purify the air:
7. Natural circulation of water, air and fertilizer to keep the soil layer soft;
8. Increase green area, simple construction and light weight:
9. Good load-bearing effect: can bear more than 200T/m2 weight
10. It can be freely combined and disassembled, and can be reused:
Features
1. Complete greening: The grass grid provides more than 95% of the grass planting area. The complete greening effect can absorb sound and dust, which significantly improves the quality and taste of the environment.
2. Saving investment: The grass-planting grid combines the functions of parking and greening into one, which can save the valuable investment of developers in a city where every inch of land is expensive.
3. Flat and complete: The unique and stable flat-plug lap joint of the grass planting grid makes the entire paving surface connect into a flat whole, avoiding partial depressions, and the construction is extremely convenient.
4. High strength and long service life: The grass planting grid adopts special materials with patented technology, and the compressive capacity is up to 200 tons/square meter, which is greater than the standard requirement of 32 tons/square meter for the fire-fighting climbing surface.
5. Performance stability, UV resistance, acid and alkali corrosion resistance, abrasion resistance, weather resistance -40"C-90"C.
6. Excellent drainage: The crushed stone load-bearing layer provides a good water intake function, which is convenient for the discharge of excess precipitation.
7. Lawn protection: The gravel load-bearing layer provides a certain water storage function, which is beneficial to the growth of the lawn, and the grass roots can grow to the gravel layer.
8. Green and environmental protection: The grass planting grid is safe and stable, recyclable, absolutely pollution-free, and comprehensively cares for the lawn.
9. Lightweight and economical grass planting grid is 5 kg per square meter, which is extremely lightweight, quick to install, labor-saving, and construction period shortened.
Product Paramenters
Specification
500mm*500mm*40mm
500mm*500mm*50mm
430mm*405mm*70mm
415mm*395mm*50mm
500mm*500mm*70mm
|
Grass Grid Technical Parameter (GB standard)
|
|
|
|
Pressure Strength
|
200ton/sqm-250ton/sqm
|
|
|
Material
|
HDPE(High-desity polyethylene)
|
|
|
Product Type
|
Virign material and Recycled Material
|
|
|
Durability
|
at least 4 years in natural ground of 4
|
|
|
Working Temprature
|
Apply in temperature of -10℃tp 50℃
|
|
|
Anti HCL
|
30%x24h,no visible change
|
|
|
Thermal Aging
|
70ICX24h,no visible change
|
|
|
Anti UV
|
UPE>30T(UVA)AV
|
|
Application Scenarios
Application
1、Parking lot,
2、fire lane,
3、highway slope protection,
4、river slope protection,
5、fire climbing surface,
6、golf lane,
7、convention and exhibition center,
8、modern workshop,
9、noble living community,
10、roof garden, etc.
Packing & Delivery
FAQ
1. who are we? We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid East(10.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Can provide third-party quality inspection reports；
3. How about the delivery time?
General within 3-7 days after received the deposit.
4. Can you produce the product according to customers' requirements?
Sure, we are professional manufacturer, OEM and ODM are both welcome.
