- Product Details
- {{item.text}}
Quick Details
-
Design Printing:
-
Offer Printing
-
Material:
-
No Substrate(adhesive)
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
3M
-
Model Number:
-
9485PC
-
Product Name:
-
Adhesive Transfer Tape
-
Thickness:
-
0.127 mm
-
Length:
-
55M
-
Width:
-
1219MM(could be customized)
-
Maximum Operating Temperature (Celsius):
-
232 ℃
-
Minimum Operating Temperature (Celsius):
-
-40 ℃
-
Application:
-
Emblem Attachment, Mounting & Trim Attachment
-
Primary Liner:
-
58# Polycoated Kraft Paper
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
Offer Printing
-
Material:
-
No Substrate(adhesive)
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
3M
-
Model Number:
-
9485PC
-
Product Name:
-
Adhesive Transfer Tape
-
Thickness:
-
0.127 mm
-
Length:
-
55M
-
Width:
-
1219MM(could be customized)
-
Maximum Operating Temperature (Celsius):
-
232 ℃
-
Minimum Operating Temperature (Celsius):
-
-40 ℃
-
Application:
-
Emblem Attachment, Mounting & Trim Attachment
-
Primary Liner:
-
58# Polycoated Kraft Paper

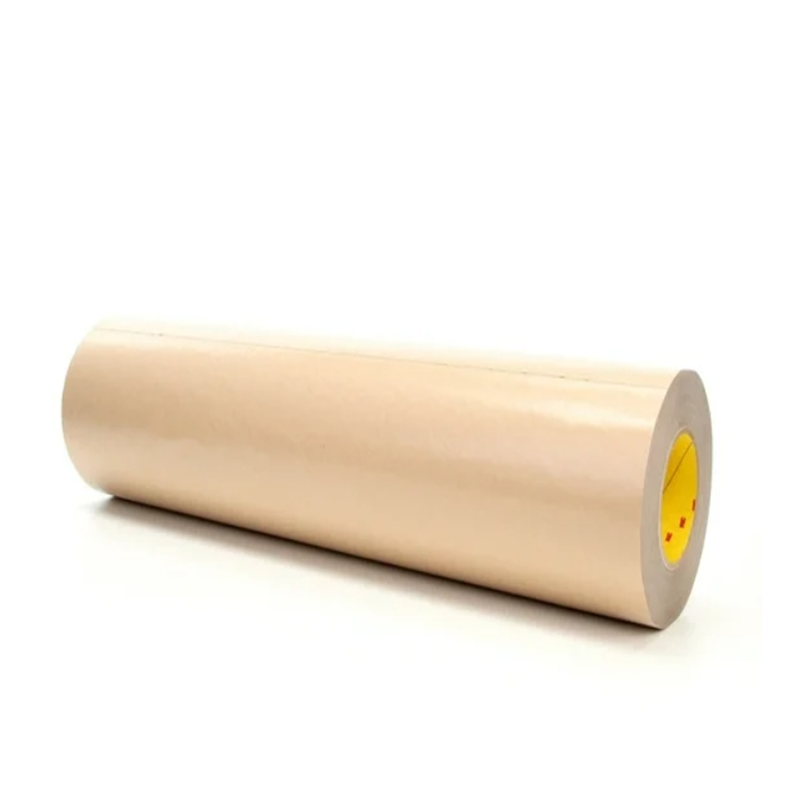

Adhesive Transfer High Temperature Resistant Tape 9485PC for Bonding F oams
3M 9485PC Adhesive Transfer Tape with 3M Adhesive 350 is a modified acrylic adhesive ideal for very high-bond strength to many surfaces. It has excellent chemical resistance and bold strength even at elevated temperatures. This tape is offered with a fiber reinforced adhesive which is important for roll stability in narrow widths. Tapes using adhesive 350 are designed for temperature exposure to 450°F (232°C) for short periods of time and up to 300°F (149°C) over long time frames. This adhesive is a good choice for applications which require adhesion to Low Surface Energy plastics, powder coatings and oily metals.
Specification
| Property | Value |
| Product name | Adhesive Transfer tape |
| Model No. | 3m 9485PC |
| Thickness | 0.127(5mil) |
| Adhesive Type | Acrylic |
| Length | 55m |
| Width | 1219mm |
| Application | Emblem Attachment, Mounting & Trim Attachment |
Features
- High Temperature Resistant : temperature exposure up to 450°F (232°C) and long term 300°F (149°C).
- Excellent chemical resistance and shear and peel strength even at elevated temperatures.
- H igh bond to low surface energy substrates and powder coated paints.
- . 58 lb. PCK (polycoated kraft) paper liner provides moisture resistance and minimizes wrinkles.
- . Adhesive is fiber reinforced for roll stability in narrow widths and to resist oozing.
- Low odor for improved working environment.
Application
· Bonding high and low surface energy materials and powder coated paints.
· Bonding foams to low surface energy materials (LSE) while offering elevated temperature performance.
· Foam and gasket attachment.
· Holding and fixturing in product assembly.
· Bond thin metal panels.
