Quick Details
-
Product name:
-
Gravity Safety Door Lock
-
Application:
-
Express, financial, high security industries
-
Packing:
-
Carton
-
Feature:
-
Durable
-
Electrical parameters:
-
VDC 24, 2-3A.Other models can be customized
-
working temperature:
-
-25℃-80℃
-
Size:
-
84mm*63mm*24mm
-
Weight:
-
325g
Quick Details
-
Place of Origin:
-
Guangdong, China, Guangdong, China
-
Brand Name:
-
KSJ
-
Product Name:
-
KSJ-245
-
Product name:
-
Gravity Safety Door Lock
-
Application:
-
Express, financial, high security industries
-
Packing:
-
Carton
-
Feature:
-
Durable
-
Electrical parameters:
-
VDC 24, 2-3A.Other models can be customized
-
working temperature:
-
-25℃-80℃
-
Size:
-
84mm*63mm*24mm
-
Weight:
-
325g
Product Name: Smart Express Cabinet Lock
1. Product Features of Smart Express Cabinet Lock
A variety of unlock methods: WiFi APP access (optional), mobile phone sweep, BLE APP access, fingerprint unlock, PIN code, card, mechanical key unlock, forced unlock pull rod;
For cabinet doors, drawers, safety doors, all door thickness;
Easy wiring, easy installation. You can complete the product installation in 5 minutes;
We have a Tuya and TTlock smart lock management system for you to choose from, you can manage smart locks anywhere through your smartphone;
Matte black, electroplated silver to choose from;
Quality is reliable, our lock has passed 100,000 service life tests and 48 hours salt spray test;
Through Google Assistant and Amazon Alexa voice commands;
FPC fingerprint readers provide you with the best security experience;
In case of power failure, the lock can be unlocked in an emergency;
We can customize production according to your requirements, OEM / ODM;
Waterproof locks can be customized on demand, suitable for damp and rainy scenes.
2. Product details of smart express cabinet lock
|

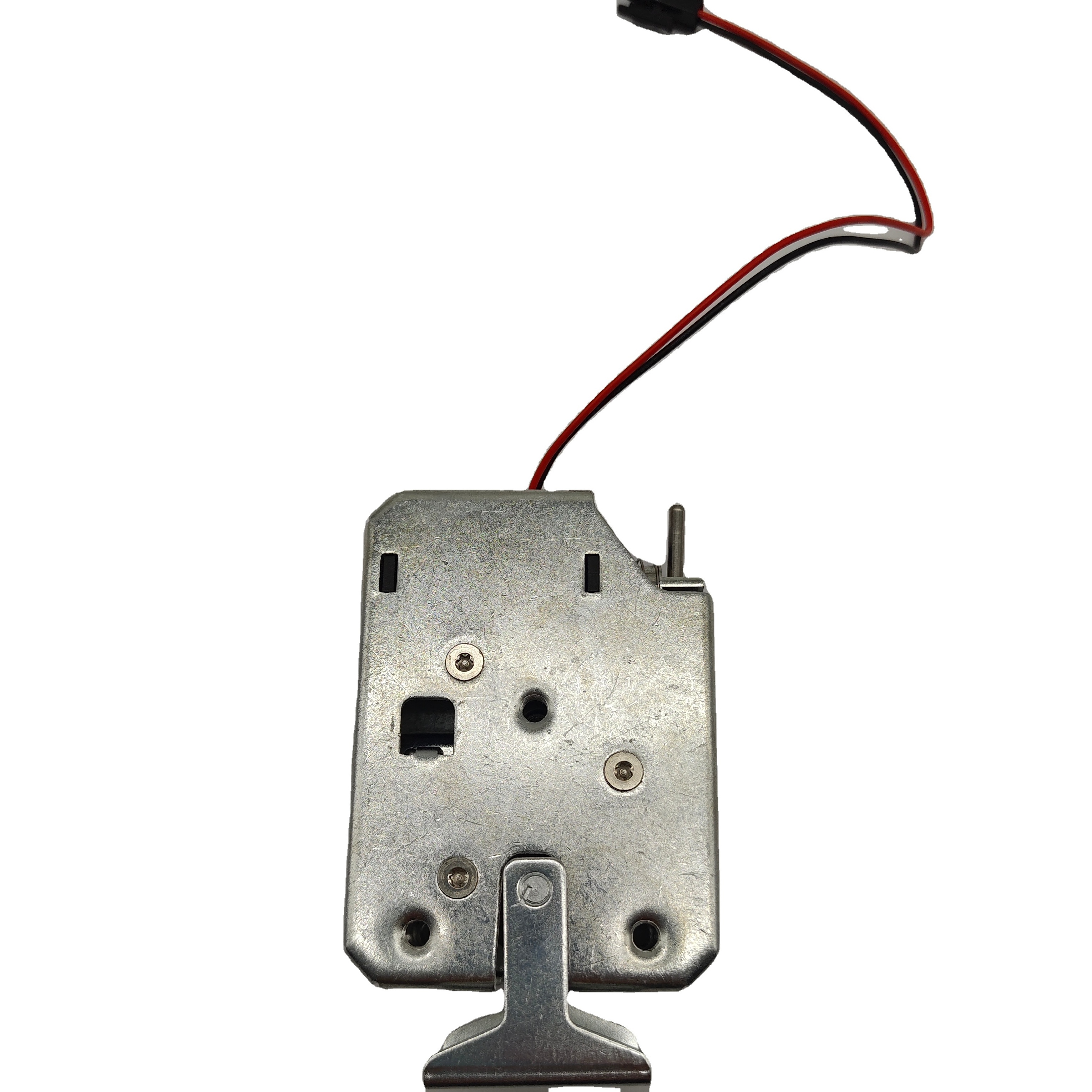

product name |
KSJ-245 Gravity Safety Door Lock |
|
product weight |
325g |
|
Standard sizes |
Length: 84mm; width: 63mm; thickness only: 24mm. |
|
Way of working |
It adopts the working mode of closing the door (power off) to lock, and turning on the power (24V) to trigger the unlocking in an instant. |
|
Emergency unlock |
The lock body has an emergency unlocking method in various positions, and the cabinet can be unlocked without damaging the cabinet in an emergency. A mechanical key can be installed, and it can also be unlocked externally with a mechanical key, which is simple and convenient to operate. The mechanical key can be opened or unlocked as required. |
|
Energy saving |
The power-on time at the moment of unlocking is less than 1 second. Usually, when the door is closed and locked, it does not consume 12V voltage, which is a safe voltage. (Various voltage models of 5V~44V can be customized according to customer needs) |
|
Electrical parameters |
VDC 24,2-3A. Other models can be customized; (such as: 12V,3A-4A;48V,1A-3A and other specifications) |
|
Insulation resistance
|
100MΩ between coil and shell (DC500V normal temperature/humidity) |
|
Withstand voltage temperature rise |
AC1200V (50/60Hz) 5Min AT DC6V temperature rise 80℃Max |
|
The elasticity of opening the door |
Can Pop open the cabinet doors above 3KG, you can also increase the elasticity according to customer needs |
|
Working temperature, humidity |
-25℃-80℃ 5%RH-85%RH |
|
Outgoing the way |
The red and black wires are the positive and negative poles of the power supply, and the blue and white wires are the signal feedback. Connector Can be customized on demand. |
|
Save material |
Ultra-thin design saves materials, and at the same time provides larger and more flexible storage space for the cabinet. |
|
long life |
Long service life,Can ensure switch achieve 1 million times. |
|
Output status |
Equipped with lock status output detection signal, used to detect the (open, closed) working status of the door. |
|
public Sex |
There is no front and back design, suitable for all sizes of cabinets and drawers in the left, right, up and down door opening directions. |
|
safety |
It is superior to other similar locks in sensitivity, shock resistance and prying resistance, and is suitable for: express delivery, finance, and high-security industries. |
|
Craft |
The external process adopts electro-galvanized sheet, which is small and beautiful in appearance, small in space, and strong in corrosion resistance. |
3.Company introduction
Dongguan Kaisijin Intelligent Technology Co., Ltd. is a leading expert specializing in intensive intelligent cabinet electronic control locks. Our company focuses on electronic control locks, smart locks, express cabinet locks, face locks, fingerprint locks, fingerprint password locks, Home door locks, hotel door locks research and development and sales market. Obtained ISO9001 certification.
In raw materials purchase, product design, process processing, quality testing are strictly controlled; adhere to provide customers with high safety, quality stability, advanced technology products.
4.Packaging and Delivery
Inner box: blister Plastic box
Main carton size: 30X30.5X14CM 100 pcs/carton
delivery cycle
|
Quantity/piece) |
1-100 |
100-1000 |
>1000 |
|
Delivery time (days) |
15 |
25 |
Waiting for discussion |
5.FAQ
Q1:How do you differ from other suppliers?
Answer: We have a R&D team with more than 10 years of experience and professional production and testing equipment in this field. Configure a powerful QC department and R&D department to ensure that the quality of each product is under strict control standards.
Q2:How is your production capacity?
Answer: We have 6 production lines with a monthly production capacity of about 30,0000 pieces.
Q3:What is your minimum order quantity?
Answer: Our minimum order quantity is 100 pieces.
Q4:Can you help me with the product I designed?
Answer: Yes, we can provide OEM / OEM service to get the best solution for their market.
Q5:What are your payment terms?
Answer: 6 0% deposit is paid in advance, and the balance before shipment is 40%.
