Quick Details
-
Internet:
-
10/100M Self-adaption
-
Main display:
-
10.1Inch LED Screen
-
Touch type:
-
10 Points Capactive Touch
-
Resolution:
-
800*1280
-
Color:
-
gray and white
-
Printer:
-
Built in 58mm printer
-
Factory Tour:
-
support
-
Optional functions:
-
wifi/speaker/camera/scanner/NFC/IC/ID card reader
-
Certification:
-
FCC CE RoHS
-
Operation System:
-
Android7.1
-
CPU:
-
RK3288
-
Hard Disk Capacity:
-
8GB
Quick Details
-
Brand Name:
-
Zhaohe
-
Place of Origin:
-
Guangdong, China
-
memory:
-
2GB
-
Internet:
-
10/100M Self-adaption
-
Main display:
-
10.1Inch LED Screen
-
Touch type:
-
10 Points Capactive Touch
-
Resolution:
-
800*1280
-
Color:
-
gray and white
-
Printer:
-
Built in 58mm printer
-
Factory Tour:
-
support
-
Optional functions:
-
wifi/speaker/camera/scanner/NFC/IC/ID card reader
-
Certification:
-
FCC CE RoHS
-
Operation System:
-
Android7.1
-
CPU:
-
RK3288
-
Hard Disk Capacity:
-
8GB

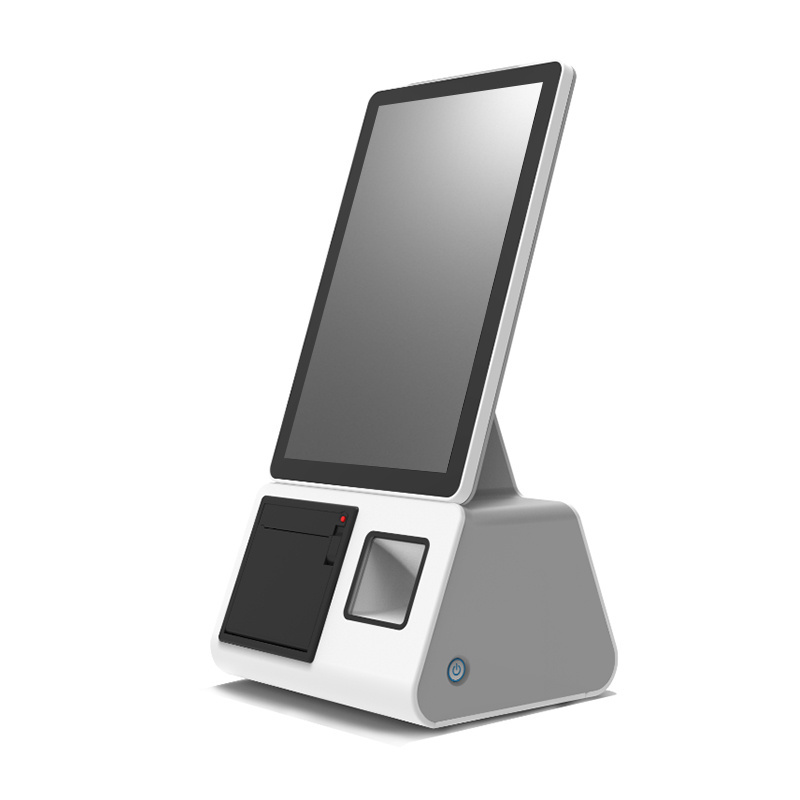

1.The T101A self service kiosk features:
♦T30 is a a sleek, modern self service kiosk at an affordable price.
♦All in one design,Multiple module options,including camera,58mm printer,IC/ID/NFC card reader/barcode or QR scanner
♦Dazzling 10.1'' diagonal IPS touchscreen ,Support horizontal and vertical screen
♦Provide SDK development guide documents
♦ One-year Zhaohe limited warranty.
♦ Increase sales by providing an additional sales channel for your customers to order.
| Specification | |
| Part No. |
ZH-T101A |
| Series Type | ZH-T101 Series |
| Operating System | Android 7.1 |
| Processor | RK3288 Cortex-A17(Quad core) |
| Maximum memor y | 2GB |
| Internal storage |
8GB |
| Printer |
Built in 58mm thermal printer |
| Scanner |
Built in 1D/2D scanner |
| Internet | 10/100M Self-adaption |
| Screen | |
| Main display |
10.1'' diagonal IPS LED-backlit touch screen |
| Resolution Ratio: 800*1280 | |
| Touch panel:Capacitive multi-touch screen | |
| I/O Interface | |
| External interface | Micro USB*1,RJ11*1,USB*2,HDMI*1,DC IN*1,RJ45*1,TF card*1(Maximum support 64G) |
| Power supply | DC 12V/4A |
| Wifi | Support 802.11b/g/n |
| BT | Support BT 2.1/3.0/4.0 |
| Speaker | 3W |
| Other info | |
| Environmental Operating temperature: | 10 to 40°C; Operating humidity: 20 to 85% RH |
| Color | White and gray |
| Product dimension | 180*155*370mm |
| Package dimension | 460*220*210mm |
| Gross weirht | 3KG |
| Warranty | 1 YEAR |
| Optional functions | Built in face recognition camera/QR or barcode scanner |
| IC/ID/NFC card reader | |
| Built in 80mm receipt thermal printer | |
| Label printer | |
| Cash drawer | |
