Quick Details
-
Application:
-
Towel production
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TONGDA
-
Dimension(L*W*H):
-
4706x1936x2220mm (230cm/90")
-
Weight:
-
2700 KG
-
Power:
-
2200--2600w, 2.2-2.6 KW
-
Reed Width:
-
180(74") 200(78") 230(90") 250(98") 280(110") 330(130")
-
Rotation Speed(RPM):
-
240 rpm (78'')
-
Weft Selection:
-
6,8 colors
-
Shedding Mechanism:
-
upper-placed electric
-
Height of Terry (mm):
-
Step less adjustment from 2 to 12 times
-
Terry raising type:
-
Cam type movable reed terry raising
-
Weft stop:
-
Piezoelectric control
-

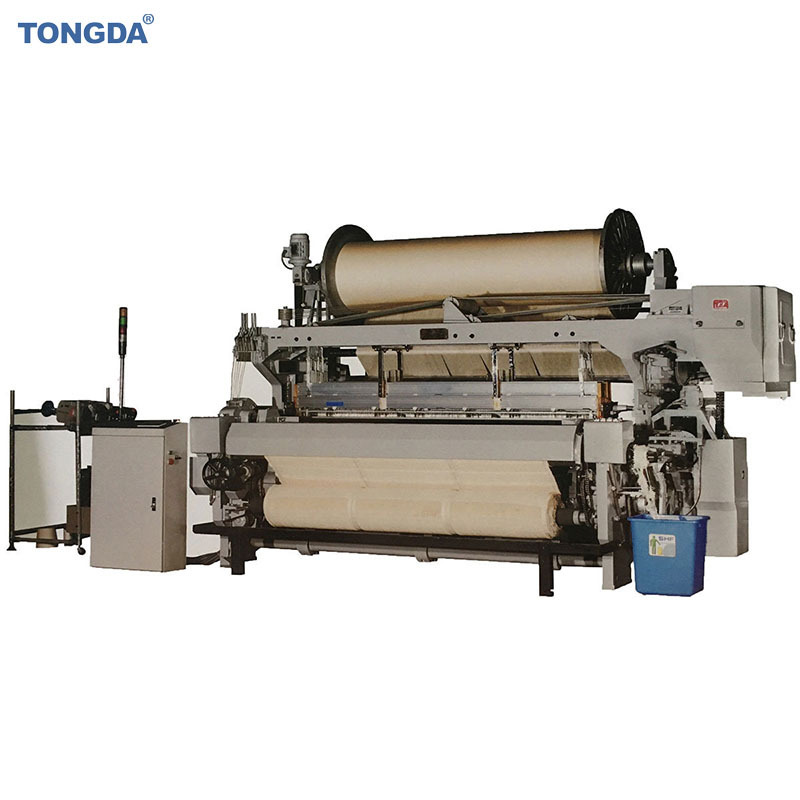

Product name:
-
Terry Towel Rapier Loom
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Type:
-
Rapier Loom
-
Production Capacity:
-
99.99%
-
Marketing Type:
-
Hot Product 2022
-
Application:
-
Towel production
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TONGDA
-
Dimension(L*W*H):
-
4706x1936x2220mm (230cm/90")
-
Weight:
-
2700 KG
-
Power:
-
2200--2600w, 2.2-2.6 KW
-
Reed Width:
-
180(74") 200(78") 230(90") 250(98") 280(110") 330(130")
-
Rotation Speed(RPM):
-
240 rpm (78'')
-
Weft Selection:
-
6,8 colors
-
Shedding Mechanism:
-
upper-placed electric
-
Height of Terry (mm):
-
Step less adjustment from 2 to 12 times
-
Terry raising type:
-
Cam type movable reed terry raising
-
Weft stop:
-
Piezoelectric control
-
Product name:
-
Terry Towel Rapier Loom
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Display
Application
|
Model
|
TD737
|
|
Reed Width (cm)
|
180(74") 200(78") 230(90") 250(98") 280(110") 330(130")
|
|
Rotation Speed(RPM)
|
240RPM(78'')
|
|
Weft Selection
|
6,8 colors
|
|
Yarn Count
|
Cotton:6Ne-80Ne,Wool:10Ne-135Nm,Chemical Fabric:900D-70D
|
|
Dia. of Warp Beam
|
Terry 800mm or 600mm, ground 680mm or 600mm
|
|
Dia. Of Rolling-Up
|
600mm
|
|
Let-Off Type
|
Up positive electric let-off down;electric let-off
|
|
Terry Raising Type
|
Cam type movable reed terry raising
|
|
Height of Terry(mm)
|
Stepless adjustment from 2 to 12 times
|
|
Shedding Mechanism
|
Upper-placed electric
|
|
Number of Heddle Frame
|
16 pages
|
|
Weft Stop
|
Piezoelectric Ceramic Sensor Control Weft Stop
|
|
Warp Stop
|
2 rows electric warp stop
|
|
Color Selection
|
Electrical color selector 6 Color
|
|
Electric Control System
|
PLC
|
|
Power
|
2.2-2.6 KW
|
|
Weight
|
3200-3500KG
|
|
Overall Size
|
4706x1936x2220(230cm/90'')
|
