Quick Details
-
Belt width:
-
800mm
-
Tare weight:
-
1380kgs
-
Wheel Base:
-
3800mm
-
Capacity:
-
600kgs/m
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GW
-
Product name:
-
Airport Conveyor Belt Loader
-
Belt width:
-
800mm
-
Tare weight:
-
1380kgs
-
Wheel Base:
-
3800mm
-
Capacity:
-
600kgs/m

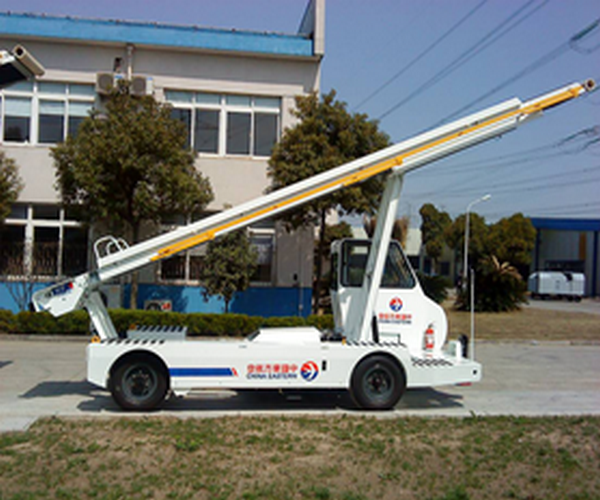

Self-Propelled Diesel Conveyor Belt Loader Aircraft Baggage Cargo Conveyor Belt Loader Tractor For Airport
Engine: kubota z482-E3B
Transmission: Imported from Japan Okamura automatic
The whole unit is using electromagnetic valve control hydraulic system.
All of these make the belt running smoothly, easy operating, easy to maintain and suitable for all types of known aircraft.
| Model No. | GW-AE09 |
| Overall Dimension | L 7550 * W 1524 * H1580mm |
| Belt width | 800mm |
| Booming height front | Min 900mm -- Max 3400mm |
| Booming height rear | Min 650mm --- Max 760mm |
| Max Belt Transfer Speed | 12-30m/min |
| Max Payload | 600kgs/M |
| Turning Radius | 6.5m |
| Tare Weight | 1380kgs |
| Wheel base | 3800mm |
| Converyor Frame | 6000mm |
| Tread Front | 1320mm |
| Tread Rear | 585mm |
| Brake system | Upright and Laydown the towbar |
| Towing Speed(by tractor) | Max 25km/h |
| Engine(small) |
Kubota Z482--E3B |
| Transmission(auto) | Okamura Y43240 |
