Quick Details
-
Brand Name:
-
SUMMITEK
-
Use:
-
FTTH
-
Warranty Time:
-
3 years
-
Product name:
-
Network Cable Tester SC8108
-
Application:
-
Cable length measurement,cable faults testing,PoE testing
-
Cable type:
-
CAT5,CAT6 (STP & UTP)
-
LCD display:
-
128*64 Dot-matrix with backlight
-
Certification:
-
FCC,CE,RoHS
-
PoE type:
-
IEEE 802.3af/at
-
Frequency:
-
130KHz
Quick Details
-
Type:
-
RJ45 Cable Tester
-
Model Number:
-
SMT04HBANF8108
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SUMMITEK
-
Use:
-
FTTH
-
Warranty Time:
-
3 years
-
Product name:
-
Network Cable Tester SC8108
-
Application:
-
Cable length measurement,cable faults testing,PoE testing
-
Cable type:
-
CAT5,CAT6 (STP & UTP)
-
LCD display:
-
128*64 Dot-matrix with backlight
-
Certification:
-
FCC,CE,RoHS
-
PoE type:
-
IEEE 802.3af/at
-
Frequency:
-
130KHz

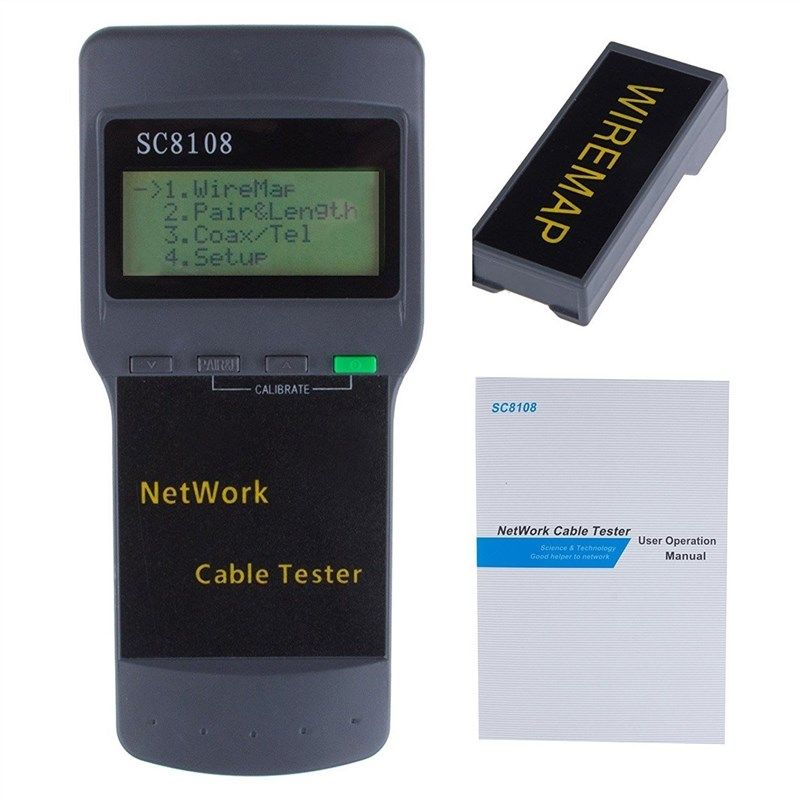

NOYAFA NF8108 Network Cable Tester
SC8108
LAN Phone Wire Meter Cat5 RJ45 Mapper Far End Test Jack Grey
Features
:
* 5E, 6E, step/up network cable, coaxial cable and telephone line
* Testing for open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
* Measure cable length and determine the distance of open circuit and short circuit
* Dynamically calibrate cable length and make length measurement as accurate as 97 percent
* Self checking function and auto compensate any change in battery capacity or ambient temperature
* 5E, 6E, step/up network cable, coaxial cable and telephone line
* Testing for open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
* Measure cable length and determine the distance of open circuit and short circuit
* Dynamically calibrate cable length and make length measurement as accurate as 97 percent
* Self checking function and auto compensate any change in battery capacity or ambient temperature
Specification
|
NF-8108M Transmitter specifications
|
|
|
|
Indictor
|
LCD 53x25 mm
|
|
|
Max. distance of cable map
|
500m
|
|
|
Max. working current
|
Less than 70mA
|
|
|
Compatible connectors
|
RJ45
|
|
|
Faults LCD display
|
LCD display
|
|
|
Low battery display
|
LCD ( 6.5V)
|
|
|
Voltage protection
|
AC 60V/DC 42V
|
|
|
Battery Type
|
DC 4x1.5v
|
|
|
Dimension(LxWxD)
|
184×84×46mm
|
|
|
NF-8108M Receiver specifications
|
|
|
|
Cable hunting
|
RJ45
|
|
|
Remote units
|
8pcs
|
|
|
Dimension(LxWxD)
|
78×33×22mm
|
|
