Quick Details
-
Filling Accuracy:
-
±0.5%, ±0.5%
-
Voltage:
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cosmati
-
Dimension(L*W*H):
-
105*35*35cm
-
Weight:
-
50 KG
-
Products name:
-
Pneumatic piston paste filling machine
-
Keywords:
-
Paste Filling Machine,cream filling machine
-
Filling volume:
-
5-60; 10-100, 25-250,50-500ml
-
Air pressure:
-
0.4-0.6Mpa
-
Material:
-
Stainless Steel 304/316L
-
Dosing type:
-
piston
-
Suitable for:
-
cream, lotion, shampoo, paste
-
Capacity:
-
20-30BPM
-
Nozzle diameter:
-
3/4/6/8/9/10 mm
Quick Details
-
Machinery Capacity:
-
1000BPH, 600BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±0.5%, ±0.5%
-
Voltage:
-
0
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cosmati
-
Dimension(L*W*H):
-
105*35*35cm
-
Weight:
-
50 KG
-
Products name:
-
Pneumatic piston paste filling machine
-
Keywords:
-
Paste Filling Machine,cream filling machine
-
Filling volume:
-
5-60; 10-100, 25-250,50-500ml
-
Air pressure:
-
0.4-0.6Mpa
-
Material:
-
Stainless Steel 304/316L
-
Dosing type:
-
piston
-
Suitable for:
-
cream, lotion, shampoo, paste
-
Capacity:
-
20-30BPM
-
Nozzle diameter:
-
3/4/6/8/9/10 mm

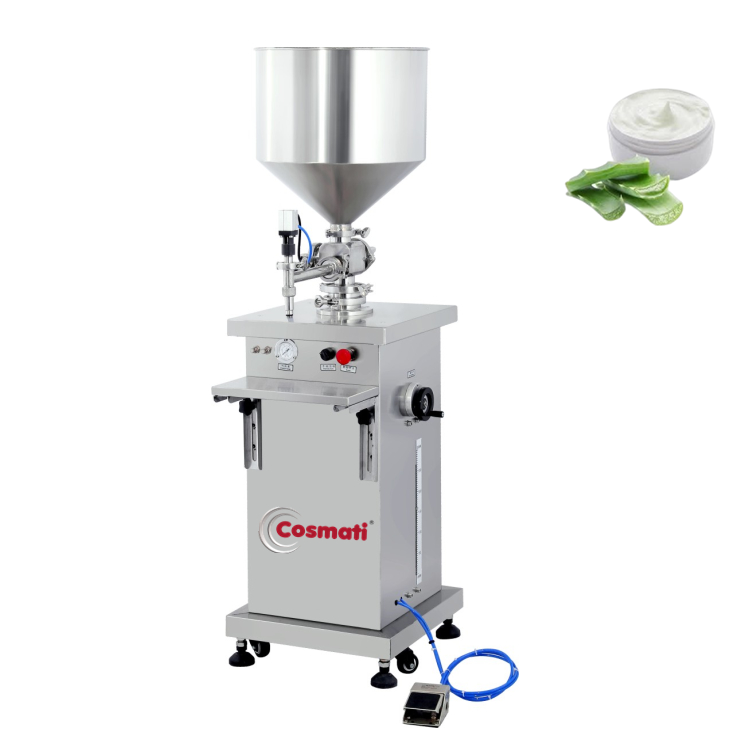

Semi-automatic Very Viscous Liquid Material Packaging Equipment Cream Paste Filling Machine
Products Description
Introduction
The paste filling machine uses compressed air as power and is composed of precision pneumatic components to form an automatic filling system. It has simple structure, sensitive and reliable action, and convenient adjustment. It is suitable for various liquids, viscous fluids and paste filling. It is also suitable for easy filling. Working in flammable and explosive environments, it is the most ideal filling equipment for pharmaceutical, chemical, food, cosmetics and other industries.
Features
1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.
Technical Data
|
Model
|
Filling Volume
|
Filling Speed
|
Pressure Supply
|
|
CM-GT-5
|
5-60ml
|
10-45 bpm
|
0.2-0.6 Mpa
|
|
CM-GT-10
|
10-120ml
|
10-35 bpm
|
0.2-0.6 Mpa
|
|
CM-GT-25
|
25-250ml
|
10-30 bpm
|
0.2-0.6 Mpa
|
|
CM-GT-50
|
50-500ml
|
10-30 bpm
|
0.2-0.6 Mpa
|
|
CM-GT-100
|
100-1000ml
|
10-25 bpm
|
0.2-0.6 Mpa
|
|
CM-GT-250
|
250-2500ml
|
5-18 bpm
|
0.2-0.6 Mpa
|
|
CM-GT-500
|
500-5000ml
|
5-12 bpm
|
0.2-0.6 Mpa
|
