First Layer
: Anti-oxidation layer (insulation, anti-rust)
Second-Sixth Layers:
5 isolation layers with high quality materials, and sintered 5 times.
Seventh Layer
: Palladium-silver heating film (Quickly Heating, High Heat Utilization, Saving Power)
Eighth Layer
: Silver conductor
Ninth Layer
: Coating high quality isolation glazes in high temperature (protect surface and isolation)
8
times sintering in high temperature
- Product Details
- {{item.text}}
Quick Details
-
Power Source:
-
Electric
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Andetong
-
Model Number:
-
JD30/2200W/OD16/S
-
Feature:
-
Water Flow inside tube, Electrict Circuit on tube surface
-
Other Name:
-
PTC Instant Electric Water Heating Element
-
Technology:
-
Thick Film Electric Heating
-
Service:
-
Engineers available to service machinery overseas
-
Certificates:
-
CQC, RoHS
-
Service Life:
-
>10,000 hours
-
Heating Materials:
-
Stainless Steel Tube (SUS430)
-
Power:
-
2,200W
-
Dimention:
-
167*60*46mm
Quick Details
-
After-sales Service Provided:
-
None
-
Warranty:
-
None
-
Application:
-
Car, Hotel, Commercial, Household
-
Power Source:
-
Electric
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Andetong
-
Model Number:
-
JD30/2200W/OD16/S
-
Feature:
-
Water Flow inside tube, Electrict Circuit on tube surface
-
Other Name:
-
PTC Instant Electric Water Heating Element
-
Technology:
-
Thick Film Electric Heating
-
Service:
-
Engineers available to service machinery overseas
-
Certificates:
-
CQC, RoHS
-
Service Life:
-
>10,000 hours
-
Heating Materials:
-
Stainless Steel Tube (SUS430)
-
Power:
-
2,200W
-
Dimention:
-
167*60*46mm
Product Description

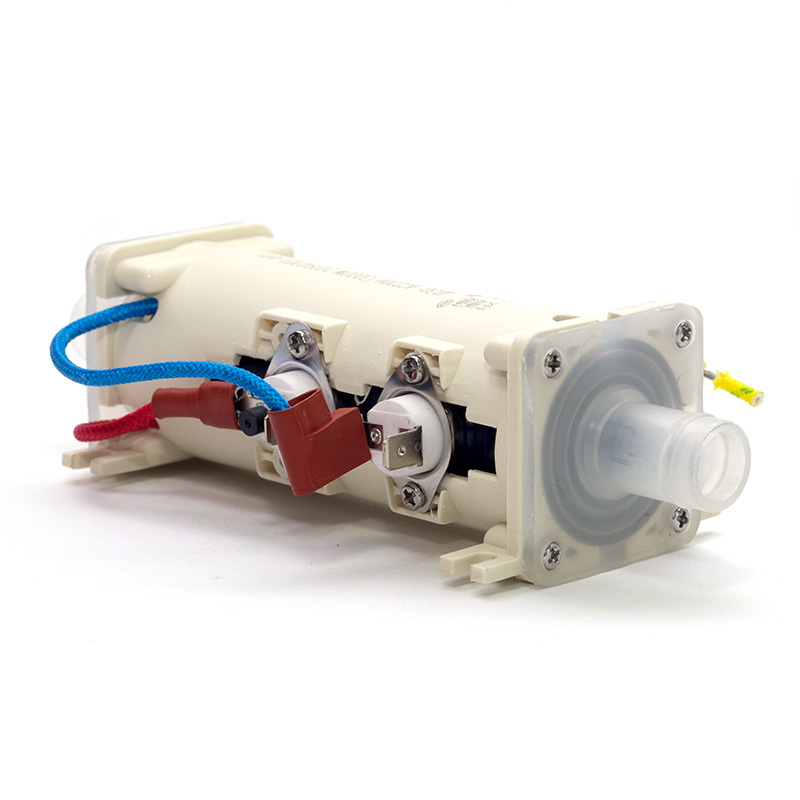

2200 watt PTC Thermistor Thick Film Stainless Steel Instant Electric Water Heating Element
The thick film heating tubes/elements are produced by screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900℃.
With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside.
For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass).
This electric heating element can be matched with thermostats (automatic reset and/or manual reset) & circuit control board.
Thermostat can directly access heating power supply circuit to control it connection or disconnection.
Circuit Control Board can adjust the outlet water in multiple temperature levels.
With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside.
For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass).
This electric heating element can be matched with thermostats (automatic reset and/or manual reset) & circuit control board.
Thermostat can directly access heating power supply circuit to control it connection or disconnection.
Circuit Control Board can adjust the outlet water in multiple temperature levels.
|
Outside Dimension
|
167mm*60mm*46mm
|
|
Heat Density
|
＞60W/cm²
|
|
Ramp-Up Rate
|
80℃/s
|
|
Thermal Efficiency
|
＞96%
|
|
Heating Power
|
2,200W
|
|
Service Life
|
＞10,000 hours
|
|
Rated Voltage
|
220v
|
|
Certificate
|
CQC, RoHS
|
|
Dielectric Strength
|
1,500V/5mA/60s
|
|
Power Deviation
|
-10% - +5%
|
|
Leakage Current
|
≤0.25mA
|
|
Insulation Resistance
|
≥200MΩ
|
|
Shield
|
PA66+ glass fibre, temperature resistance≥250℃
|
|
Snap Action Thermostat
|
16A, installed close to the heating tube’s heating circuit
|
|
Thermistor Type
|
PTC
|
|
Grounding Type
|
Spot-Weld
|
|
Water Inlet & Outlet
|
Φ16mm
|
|
Heating Tube Dimention
|
Φ30mm*110mm
|
Main Features
1.
Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications
Thick Film Tube Structure
Thick Film Stainless Steel Tube
1)
. Electric Circuit printed on tube surface, to heating the water flow inside.
2)
. Compact size, high heat utilization
3)
. Available Power 2.2KW
4)
. SUS430 Stainless Steel
CustomerApplications
It’s called “the most compact instant type heating element”. It’s the ideal heating element for novel and fashionable home appliances such as
Water Dispenser
,
Water Purifier
,
Coffee Maker
,
Milk Machine
, etc.
The majority of our Thick Film products are individual customer solutions which are designed to match our customers’ individual and specific requirements. During the development and application stages we work closely together with our customers in a partnership based on trust and mutual confidence.
