Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Carin
-
Model Number:
-
L9
-
Product name:
-

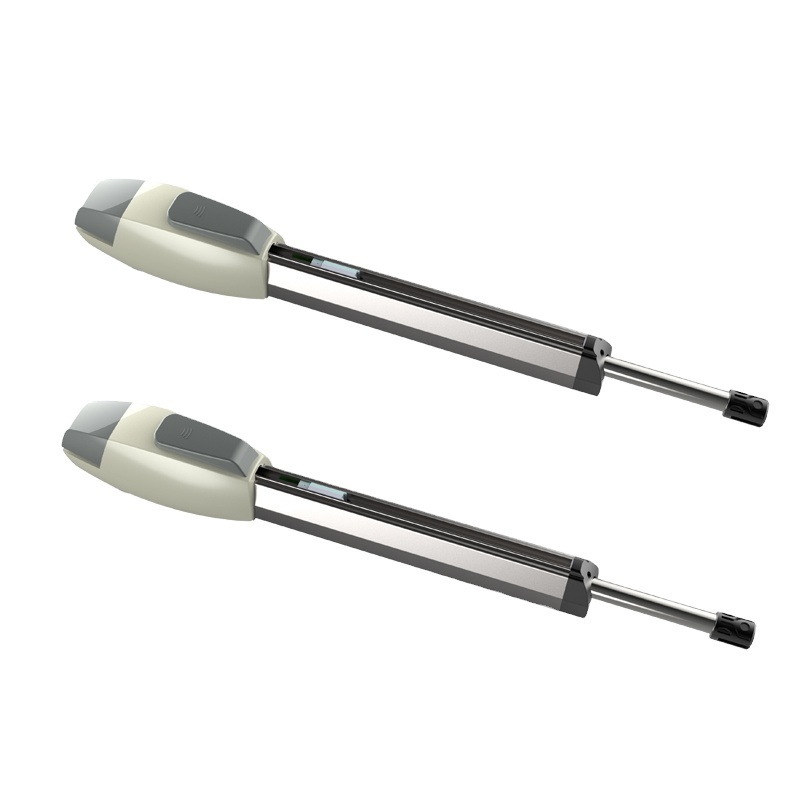

Swing Arms Motor Operator L9
-
Power supply:
-
AC 120V~240V 50/60Hz
-
Max single leaf Gate Weight:
-
500kg
-
Material:
-
Aluminum Alloy
-
Protection Class:
-
IP45
-
Certificate:
-
CE Approved
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Villa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Carin
-
Model Number:
-
L9
-
Product name:
-
Swing Arms Motor Operator L9
-
Power supply:
-
AC 120V~240V 50/60Hz
-
Max single leaf Gate Weight:
-
500kg
-
Material:
-
Aluminum Alloy
-
Protection Class:
-
IP45
-
Certificate:
-
CE Approved
Products Description
L9 MAIN FEATURE
Automation for gates leaves up to 4m 500KG
L9 is particularly intended for residential applications. The shape is beautiful and graceful and it’s dimensions allow it to be installed in areas where limited space is available.
The actuator is self-locking and can be unlocked easily in case of electrical blackout by means of the supplied unlocking key. Moreover, the 24V version can be operated even in absence of electricity by means of the optional backup battery unit.
Thanks to the sturdiness of materials used during production, L9 is almost free to maintain and designed to last long.
Details Images
Product Paramenters
|
Model
|
L9-DC-400
|
L9-DC-600
|
L9-AC-400
|
L9-AC-600
|
|
Power Supply
|
AC110/220
|
AC110/220
|
AC110/220
|
AC110/220
|
|
Motor
|
24V
|
24V
|
110/220
|
110/220
|
|
Current
|
4A
|
4A
|
2A/1A
|
2A/1A
|
|
Absorbed Power
|
50W
|
50W
|
200W
|
200W
|
|
Max leaf Length
|
2.5M
|
3M
|
3.5M
|
4M
|
|
Max leaf Weight
|
400KGS
|
400KGS
|
500KGS
|
500KGS
|
|
Open Speed
|
1.6CM/S
|
1.6CM/S
|
1.6CM/S
|
1.6CM/S
|
|
Thrust
|
1400N
|
1400N
|
2500N
|
2500N
|
|
Stroke
|
400MM
|
600MM
|
400MM
|
600MM
|
|
Working Temp.
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
|
Duty
|
95%
|
95%
|
40%
|
40%
|
|
Protection Class
|
IP45
|
IP45
|
IP45
|
IP45
|
|
Capacitor
|
---
|
---
|
25uf/8uf
|
25uf/8uf
|
|
Open Angle
|
0~120
|
0~120
|
0~120
|
0~120
|
|
Limit Switch
|
Stopper
|
Stopper
|
Stopper
|
Stopper
|
