Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ZeQi
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
****
-
Weight:
-
3200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Capacity:
-
100-750kg/h
-
Screw type:
-
Conical twin screw
-
Material:
-
PVC
-
Features:
-
Long life use
-
Advantage:
-
Newly technology on the world
-
Service:
-
Good after sale service systmen
-
Control:
-
Cumputer or handle can option
-
Power:
-
18.5-110KW
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
Unapplicable
-
Screw Speed (rpm):
-
36 rpm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ZeQi
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
****
-
Weight:
-
3200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Capacity:
-
100-750kg/h
-
Screw type:
-
Conical twin screw
-
Material:
-
PVC
-
Features:
-
Long life use
-
Advantage:
-
Newly technology on the world
-
Service:
-
Good after sale service systmen
-
Control:
-
Cumputer or handle can option
-
Power:
-
18.5-110KW
Products Description
PVC pipe production line
three-claw, four-claw, six-claw and eight-claw
hauler to be chosen form.
Plastic Pipe Line for production's Saw cutter or planet cutter is optional which is equipped with length meter and incrassation devices. Plastic Pipe Line for production whole line works stably and efficiently.
We can allocate exclusive to produce inner spiral pipes, hollow spiral pipes and core layer foam pipes.
The planet cutter is controlled by digital computer which convenient to operate.
SPECIFICATION:
1.Suitable for extruding all kinds of PVC power.
2.Different molds and auxiliary machine can produce different PVC pipe, profiled, plate, slice bar
Plastic Pipe Line for production's Saw cutter or planet cutter is optional which is equipped with length meter and incrassation devices. Plastic Pipe Line for production whole line works stably and efficiently.
We can allocate exclusive to produce inner spiral pipes, hollow spiral pipes and core layer foam pipes.
The planet cutter is controlled by digital computer which convenient to operate.
SPECIFICATION:
1.Suitable for extruding all kinds of PVC power.
2.Different molds and auxiliary machine can produce different PVC pipe, profiled, plate, slice bar
and granulation
3.Changing special barrel also can produce PP, PE material.
4.Advantage technology of the machine
5.Stable and safe.

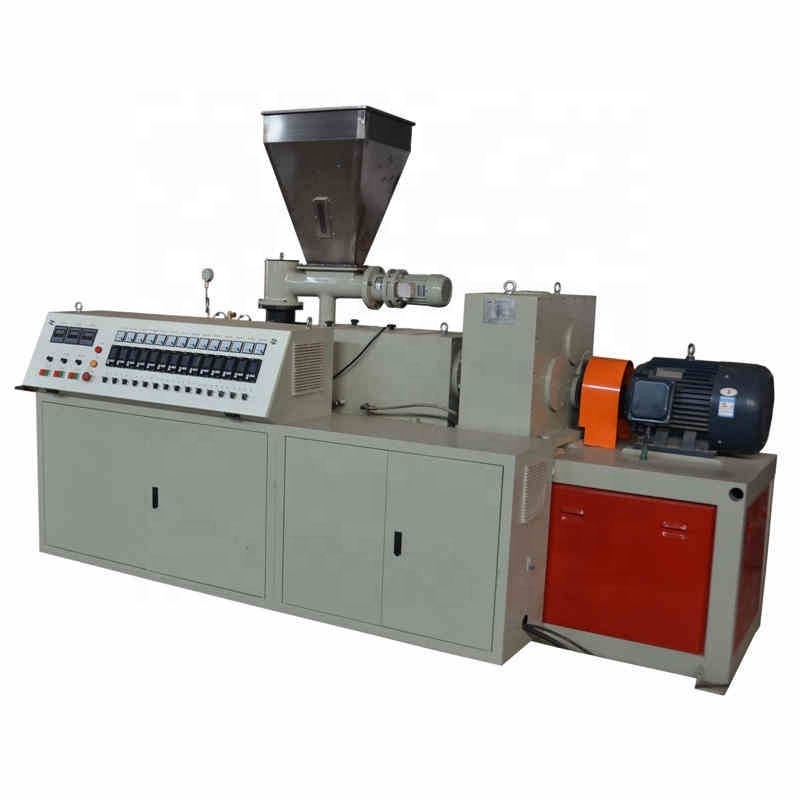

Main technical parameter of the extruder
3.Changing special barrel also can produce PP, PE material.
4.Advantage technology of the machine
5.Stable and safe.
Main technical parameter of the extruder
|
Model
|
SJSZ45/100
|
SJSZ51/105
|
SJSZ55/120
|
SJSZ65/132
|
SJSZ80/156
|
SJSZ92/188
|
|
Power of drive motor
(kw) |
15
|
18.5
|
22
|
37
|
55
|
110
|
|
Screw diameter
(mm) |
Ø45/Ø100
|
Ø51/Ø105
|
Ø55/120
|
Ø65/Ø132
|
Ø80/Ø156
|
Ø92/188
|
|
No.of screw
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Rotational speed
|
36
|
36
|
36
|
36
|
36
|
36
|
|
Nm torsional moment of screw
|
3148
|
6000
|
7000
|
10000
|
14000
|
32000
|
|
Capacity PVC powder
(kg/h) |
70
|
100
|
150
|
250
|
400
|
750
|
|
Central height(mm)
|
1000
|
1000
|
1000
|
100
|
1000
|
1100
|
Main technical parameters of the auxiliary
|
Main extruder
|
SJSZ51/105
|
SJSZ65/132
|
|
|
SJSZ80/156
|
|
SJSZ92/188
|
|
||||
|
pipe diameter(mm)
|
16-63
|
16-63
|
50-160
|
50-250
|
110-250
|
200-400
|
200-400
|
315-630
|
||||
|
die head
|
double outlet
|
quadruple
outlet
|
single outlet
|
single outlet
|
single outlet
|
single outlet
|
single outlet
|
single outlet
|
||||
|
down-stream equipment
|
GF-63X2
|
GF-63X4
|
GF-160
|
GF250
|
GF-250
|
GF-400
|
GF-400
|
GF-630
|
||||
|
total power(kw)
|
60
|
91
|
85
|
86.5
|
114
|
131
|
212
|
220
|
||||
