Quick Details
-
Memory Type:
-
DDR4
-
Brand Name:
-
Advantech
-
Place of Origin:
-
China
-
Product Name:
-
AIMB-586QG2-00A1E
-
BIOS:
-
AMI EFI 256 Mbit SPI
-
Max Capacity:
-
128 GB
-
USB:
-
4*USB3.0+4*USB2.0
-
Memory:
-
Dual Channel DDR4 2400/2666MHz
-
Graphics cards:
-
Intel HD Graphics Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1
-
Operating Temperature:
-
0 ~ 60 °C (14 ~ 158° F), depends on CPU speed and cooler solution
-
Dimension (L x H):
-
244 mm x 244 mm (9.6" x 9.6")
-
CPU:
-
Intel Xeon 8th / 9th Gen Core i7/i5/i3
Quick Details
-
Maximum Ram Capacity:
-
32GB
-
Application:
-
Industrial computer
-
Form Factor:
-
Micro-ATX
-
Memory Type:
-
DDR4
-
Brand Name:
-
Advantech
-
Place of Origin:
-
China
-
Product Name:
-
AIMB-586QG2-00A1E
-
BIOS:
-
AMI EFI 256 Mbit SPI
-
Max Capacity:
-
128 GB
-
USB:
-
4*USB3.0+4*USB2.0
-
Memory:
-
Dual Channel DDR4 2400/2666MHz
-
Graphics cards:
-
Intel HD Graphics Supports DirectX11.1, OpenGL 5.0 and OpenCL 2.1
-
Operating Temperature:
-
0 ~ 60 °C (14 ~ 158° F), depends on CPU speed and cooler solution
-
Dimension (L x H):
-
244 mm x 244 mm (9.6" x 9.6")
-
CPU:
-
Intel Xeon 8th / 9th Gen Core i7/i5/i3
Products Description
Advantech

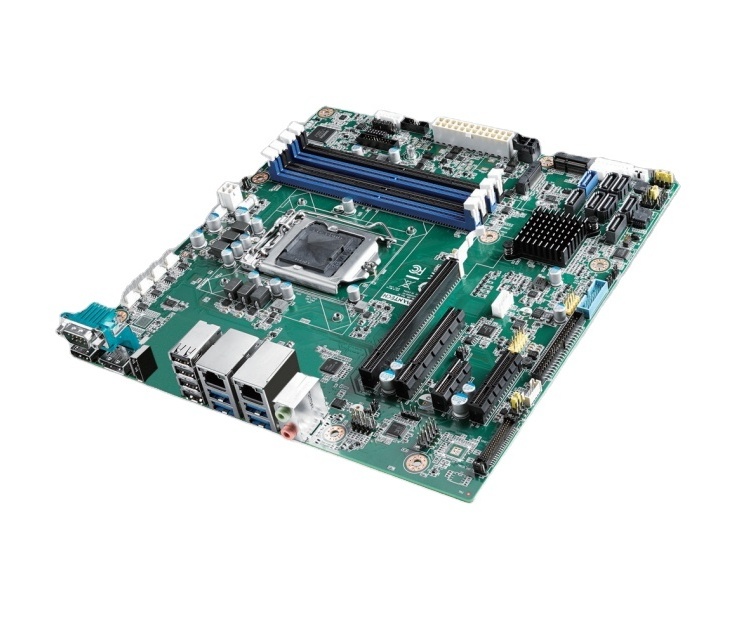

AIMB-586 LGA1151 8th/9th Generation Intel xeon core i7/i5/i3 mATX Motherboard
Features
* Supports
LGA1151 8th/9th Generation Intel xeon core i7/i5/i3
processor with Q370/ C246/H310 chipset
mATX Motherboard
* Four DIMM sockets up to 128 GB DDR4
2400/2666MHz
* Triple display (HDMI, 2DP++, eDP or LVDS display)
* PCIe Gen3, max up to 4x USB 3.1 (Gen2), 2x USB 3.0, 8x SATAIII, 4 GbE LAN, 2x M.2 (M & E Key)
* Intel AMT 12.0 and Intel vPro competent
* Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
* DeviceOn and Embedded Software APIs .
* Triple display (HDMI, 2DP++, eDP or LVDS display)
* PCIe Gen3, max up to 4x USB 3.1 (Gen2), 2x USB 3.0, 8x SATAIII, 4 GbE LAN, 2x M.2 (M & E Key)
* Intel AMT 12.0 and Intel vPro competent
* Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
* DeviceOn and Embedded Software APIs .
Specification
|
Expansion Slot
|
PCIe x1 (Gen3)
|
1 GB/s per direction, 1 slot (QG2/WG2 only)
|
|
|
PCIe x4 (Gen 3)
|
4 GB/s per direction, 1 slot
|
|
|
PCIe x8 (Gen 3)
|
8 GB/s per direction, 1 slot (Default on WG2 sku, BOM Option on QG2 sku
|
|
|
PCIe x16 (Gen 4)*
|
16 GB/s per direction, 1 slot (Only x8 Link on WG2 sku)
|
|
Memory
|
Technology
|
Dual Channel DDR4 2400/2666MHz Non-ECC SDRAM/ ECC SDRAM (WG2 only
|
|
|
Max Capacity
|
128 GB
|
|
|
Sockets
|
4 x 288 pin U DIMM (QG2)
|
|
Graphics
|
Controller
|
Intel HD Graphics
|
|
|
HDMI
|
1, Supports max resolution HDMI 1.2 1920 x 1200 @ 60 Hz (Colay HDMI 2.0a 4096 x 2160 @ 60 Hz, via BOM Option
|
|
SATA
|
Max Data Transfer Rate
|
600 MB/s Max. (SATA 3.0
|
|
|
Q'ty
|
6 (QG2)
|
|
|
|
|
Company Introduction
Feedback
Packing&Shipping
Why Choose Us
FAQ
1. Q: Are your Advantech, GETAC proudcts original?
A: Sure, we have been working with Advantech & GETAC more than 15 years, all our products are original and
brand new with standard Advantech or GETAC warranty
2. Q: How long is the warranty?
A: For Advantech or GETAC products, pls refer to Advantech or GETAC standard after sale policy. For our
own XINGTECH products, one year after shippment.
3. Q: Do you provide ODM/OEM or customized service?
A: Yes of course we support OEM&ODM service. Pls let me know the specification you require.
4. Q: What payment terms do you company support?
A: we support TT ,Paypal and Credit card by trade assurance order
5. Q: What is the MOQ?
A:
Sample testing
is acceptable, the price is negotiable for bulk order.
6. Q: When will you delivery?
A:
Stock products
shipped in 3days, if out of stock , will check and depends on the products and let you know
before the order
7. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
