2 Port OLT GPON 10G SFP Outdoor Ftth Fttx Mini GPON OLT

2 Port OLT GPON 10G SFP Outdoor Ftth Fttx Mini GPON OLT

FOB Reference Price: Get Latest Price

≥1 Sets

US $435

≥50 Sets

US $420

≥100 Sets

US $390

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Tometek/OEM/ODM

Use:: FTTx & FTTH

Warranty Time:: 1 Year

Chassis:: 1U 19Inch Rack Box

Uplink GE ports:: x2 RJ45

Uplink SFP ports:: x2 SFP+

GPON Ports:: x2 SFP Slots

Max Splitting ratio:: 1:128

Management Ports:: x1 Console, x1 USB

PON Port Upstream:: 1.244Gbps

PON Port Downstream:: 2.88Gbps

Supported PON module Level:: Class B+, C, C+, C++, C+++

Management Mode:: EMS, WEB, SNMP, Telnet, CLI

Quick Details

Type:: OLT

Model Number:: TLG-2DA

Place of Origin:: Guangdong, China

Brand Name:: Tometek/OEM/ODM

Use:: FTTx & FTTH

Warranty Time:: 1 Year

Chassis:: 1U 19Inch Rack Box

Uplink GE ports:: x2 RJ45

Uplink SFP ports:: x2 SFP+

GPON Ports:: x2 SFP Slots

Max Splitting ratio:: 1:128

Management Ports:: x1 Console, x1 USB

PON Port Upstream:: 1.244Gbps

PON Port Downstream:: 2.88Gbps

Supported PON module Level:: Class B+, C, C+, C++, C+++

Management Mode:: EMS, WEB, SNMP, Telnet, CLI

Product Description

Model Name			TLG-2DA
Chassis	Rack	1U 19 Inch Standard Box
Uplink Port	QTY	4
		RJ45(GE)	2
		SFP(GE)/SFP+(10GE)	2
GPON Port	QTY	2
		Physical Interface	SFP Slots
		Max Splitting ratio	1：128
Management Bandwidth (Gbps)			1x 10/100/1000 BASE-T out-band port 1x CONSOLE port 1x USB 2.0
Backplane Bandwidth (Gbps)			208
Port Forwarding Rate (Mpps)			40.176
PON Port Specification (Class C+++)	Transmission Distance	20KM
		GPON port speed	Upstream 1.244Gbps, Downstream 2.488Gbps
		Wavelength	TX 1310nm, RX 1490nm
		Connector	SC/UPC
		Fiber Type	9/125μm SMF
		Supported PON module level	Class B+, C, C+, C++, C+++, Class C++++
Management Mode			EMS, WEB, SNMP, Telnet , CLI

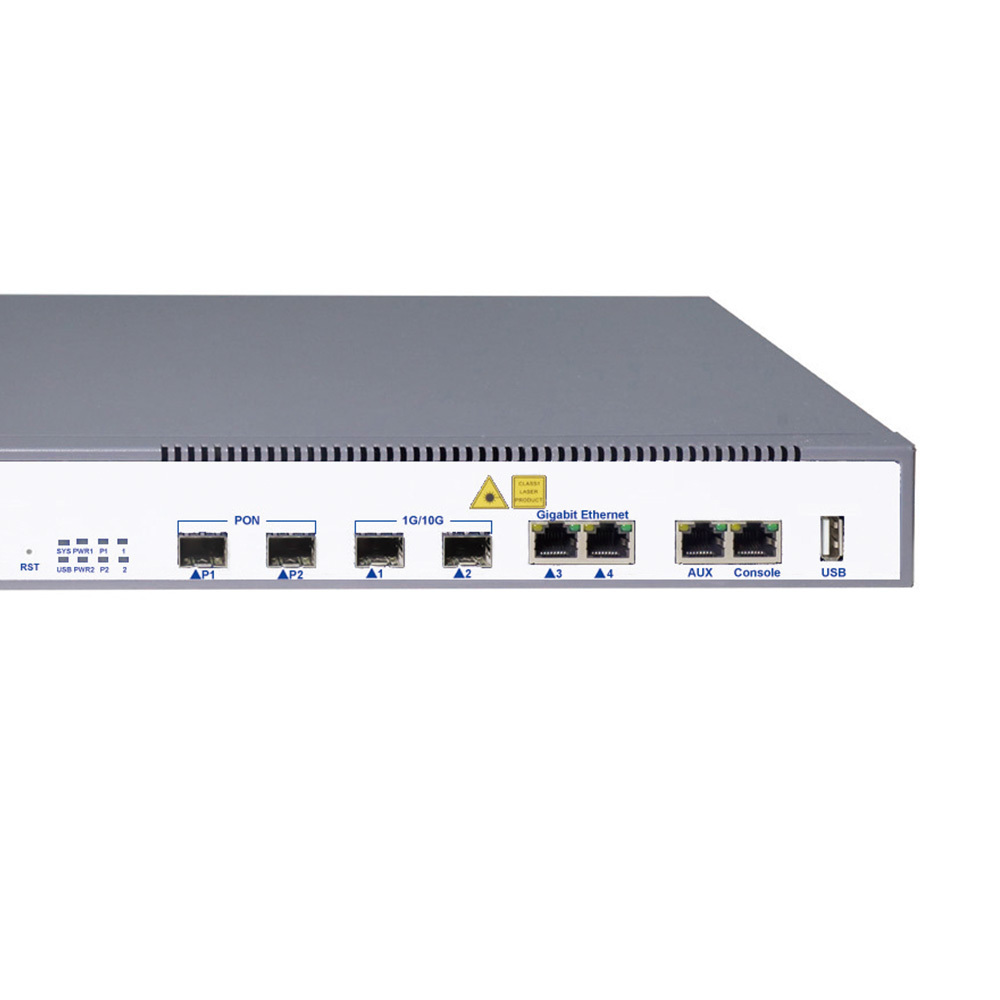

TLG-2DA Layer 3 GPON OLT

The TLG-2DA is a pizza-box GPON OLT with 2 GPON ports that meets flexible and fast FTTx access, suiting the scenarios such as
sparse/ remote/ cost-sensitive area,smart industrial park, commercial building and FTTM, etc.

Product Usage

Related Products

Packing&Shipping

Company Introduction

Shenzhen HaoXinDa Technology Co., Ltd. (HaoXinDa) was established in 2013 and is located in Shenzhen, China.

HXD focuses on the research and development of enterprise-level embedded devices, and provides professional Access Point, WiFi Router, CPE, Software Router, UWB, GPON, Radar application, Energy Storage products and total solution to telecom operators and industrial application system integrators in emerging markets.
HXD firmly believes that continuous investment in technological research and development are key factors in driving the world forward. Guided by customer needs, we continuously innovate products and services to provide customers with more intelligent and efficient solutions, thereby bringing value to society. More importantly, we are determined to resolve any issues that stand in the way of delivering quality products and achieving our mission. Our mission “ is to become the preferred partner for industrial and enterprise customers, provide customers with products and integrated solutions in the fields of communications, energy, sensing and detection, promote their business development and innovation, and contribute to the development of human society. “
HXD has excellent software, hardware, and engineering R&D team. Our team is motivated, experienced and honest. We understand the above challenges and we will make unremitting efforts for this!

FAQ

Q1: What is a GPON OLT?

A1: GPON (Gigabit Passive Optical Network) OLT (Optical Line Terminal) is a key component in a fiber optic network. It serves as the central point of control for connecting multiple end-users to the network.

Q2: What can I use a 2 port GPON OLT for?

A2: You can use it for various purposes, including providing internet access to homes, connecting small businesses, schools, hospitals, hotels, retail stores, government offices, remote workstations, wireless back haul for remote areas, and IoT deployments.
