Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
linkland
-
Model Number:
-
Welded Wire Mesh Panel
-
Wire Gauge:
-
0.6-4mm
-
Color:
-
Green
-
Product name:
-
welded wire mesh panel
-
Surface treatment:
-
Galvanized+PVC Coated
-
Certification:
-
ISO9001
-
Size:
-
Custom Made
-
Function:
-
Protective Fence Panel
-
Item:
-
Dip Galvanized
-
MOQ:
-
50Pieces
Quick Details
-
Material:
-
Low-Carbon Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
Fence Mesh
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
linkland
-
Model Number:
-
Welded Wire Mesh Panel
-
Wire Gauge:
-
0.6-4mm
-
Color:
-
Green
-
Product name:
-
welded wire mesh panel
-
Surface treatment:
-
Galvanized+PVC Coated
-
Certification:
-
ISO9001
-
Size:
-
Custom Made
-
Function:
-
Protective Fence Panel
-
Item:
-
Dip Galvanized
-
MOQ:
-
50Pieces

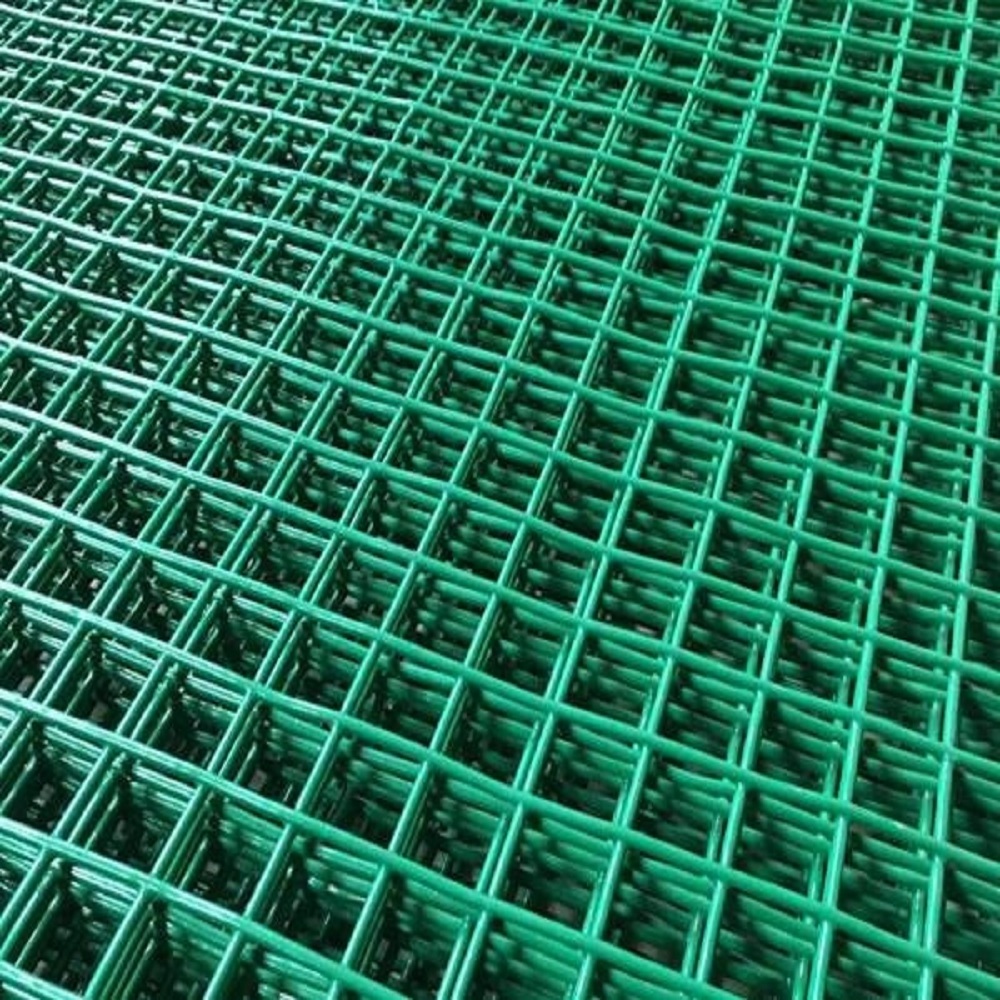

Product Introduction
Welded wire mesh panel selection of high-quality wire, made by precision automated mechanical welding, welded wire mesh forming galvanized (electro or hot-dipped); galvanized wire welded wire mesh panel selection of high-quality galvanized wire through sophisticated automated mechanical welding production. The above product mesh surface is flat, solid structure, strong overall, with strong corrosion resistance.
|
Specification List of Welded Wire Mesh
|
|
|
||
|
Opening
|
|
Wire Diameter
|
||
|
In "indh"
|
In Metric Unit (mm)
|
|
||
|
1/4" x 1/4"
|
6.4mmx 6.4mm
|
BWG22 -BWG24
|
||
|
3/8" x 3/8"
|
10.6mmx 10.6mm
|
BWG19-BWG22
|
||
|
1/2" x 1/2"
|
12.7mmx 12.7mm
|
BWG16-BWG23
|
||
|
5/8" x 5/8'
|
16mmx 16mm
|
BWG 18-BWG21
|
||
|
3/4" x 3/4"
|
19.1mmx 19.1mm
|
BWG16-BWG21
|
||
|
1"x 1/2"
|
25.4mmx 12.7mm
|
BWG 16-BWG21
|
||
|
1-1/2" x 1-1/2"
|
38mmx 38mm
|
BWG14-BWG 19
|
||
|
1"x2"
|
25.4mmx 50.8mm
|
BWG14-BWG16
|
||
|
2"x 2"
|
50.8mmx 50.8mm
|
BWG12-BWG16
|
||
|
Technical Note:
1,Standard Roll Length: 30m; Width: 0.5m- 2.0m 2,Packing: In waterproof paper in rolls. Qustom Sizes and Package available at request |
|
|
||
|
PVC Coated Welded Mesh
|
|
|
||
|
Opening
|
|
Wire Diameter
|
||
|
In inch
|
In Metric Unit (mm)
|
|
||
|
1/2" x1/2"
|
12.7mmx 12.7mm
|
BWG16-BWG21
|
||
|
3/4" x 3/4"
|
19mm x 19mm
|
BWG16-BWG21
|
||
|
1"x 1"
|
25. 4mmx 25.4mm
|
BWG1 S-BWG20
|
||
|
Technical Note:
1,Standard RollLength: 30m; Width:0.5m-- 2.0m 2,Packing: In waterproof paper in rolls. 3,Custom Sizes and Package available at request. |
|
|
||
Feature
Galvanized Welded Wire Mesh panel are made by dipping previously welded mesh into a bath of molten zinc. Welded wire mesh and fence that is Galvanized After Weld is strong and durable.
Characteristics
Weaving and characteristics:
Hot-dipped galvanizing after welding
Electro galvanized after welding
Hot-dipped galvanizing after welding
Electro galvanized after welding
Application
Features: The use of stainless steel wire welding, Welding firm, net formation, the surface light, smooth,acid, alkali, life and anti- -corrosion ability can be fully reflected.
PVC welded wire mesh panel made of high-quality low-carbon steel welded together, the pvc, pp powder after curing the surface coated with a coating, with strong adhesion, corrosion resistance, coating color bright, full color, light and so on. Diverse colors, optional dark green, grass blue, black, red, yellow and many other colors.
PVC welded wire mesh Panel welding and characteristics: plasticized steel wire welding, with acid and alkali, anti-aging, do not fade, the surface smooth, beautiful and generous appearance.
Application
Applications for PVC Coated Welded Wire Mesh Panel:
. Greenhouse benches
. Attractive home and garden fences
. Animal cages
. Panel inserts for deck and stair railings & handrails
. Greenhouse benches
. Attractive home and garden fences
. Animal cages
. Panel inserts for deck and stair railings & handrails
stainless steel wire mesh panel
The stainless steel wire mesh panel is processed through sophisticated automatic mechanical technology. The mesh surface is smooth, the structure is firm and the wholeness is strong. Even the partial cut-off or partial pressure will not cause the loose phenomenon.
Material: stainless steel wire mesh panel with 316.316L. 304L. 304. 302 and other high-grade stainless steel for the material.
Material: stainless steel wire mesh panel with 316.316L. 304L. 304. 302 and other high-grade stainless steel for the material.
Features: The use of stainless steel wire welding, Welding firm, net formation, the surface light, smooth,acid, alkali, life and anti- -corrosion ability can be fully reflected.
Application
Stainless steel welded wire mesh panel is made of stainless steel wire itself has a very strong anti-oxidation and other characteristics. Mainly used for mechanical protection, industrial, agricultural, construction and so on.
Our Services
Packing System
Welded mesh fence is wrapped with plastic cloth and mesh bag, and then into the container.
Also provides special packaging requirements.
Also provides special packaging requirements.
Company Overview
Founded in 1999, Hebei Linkland Technology Co.,ltd is a professional wire mesh fence manufacturer and supplier in China. We enjoy a high reputation in wire mesh fence industry and are highly recognized by customers both at home and abroad.
We specialize in the production and export of all kinds of welded wire fence, temporary fences, fences gates and other security fences. We have nearly 220 sets of production machinery and more than 60 staff members to ensure high
production efficiency and output. Besides, we have established various strict QC systems and standard operating procedures. All our products are manufactured in accordance with ISO 9001, BV and CE International Standards. Only in this way, we can always provide our clients with best products.
We specialize in the production and export of all kinds of welded wire fence, temporary fences, fences gates and other security fences. We have nearly 220 sets of production machinery and more than 60 staff members to ensure high
production efficiency and output. Besides, we have established various strict QC systems and standard operating procedures. All our products are manufactured in accordance with ISO 9001, BV and CE International Standards. Only in this way, we can always provide our clients with best products.
FAQ
Q: Are you manufacturer or trader?
A: We are manufacturer,and we are in fence field for more than 20years.
Q: What's the lead time?
A: Normally our lead time is 20-30 days after we received the down payment. Urgent order can be negotiated.
Q: Can you provide samples?
A: Yes, we can provide samples for you with free charge, but you will have to pay the express cost of the sample. When you finally place order, we will deduct the express cost from the contract amount.
Q: How do you control the goods quality?
A: We have quality control system, during production, after production and before load, we will test the goods and send testing pictures and videos to you.
Q: Could I customize the packaging?
A: Of course, we will try our best to meet all your demands.
Q: I don't know how to install these fence, can you provide some installation video?
A: We will provide you with installation instructions and installation videos upon delivery.
A: We are manufacturer,and we are in fence field for more than 20years.
Q: What's the lead time?
A: Normally our lead time is 20-30 days after we received the down payment. Urgent order can be negotiated.
Q: Can you provide samples?
A: Yes, we can provide samples for you with free charge, but you will have to pay the express cost of the sample. When you finally place order, we will deduct the express cost from the contract amount.
Q: How do you control the goods quality?
A: We have quality control system, during production, after production and before load, we will test the goods and send testing pictures and videos to you.
Q: Could I customize the packaging?
A: Of course, we will try our best to meet all your demands.
Q: I don't know how to install these fence, can you provide some installation video?
A: We will provide you with installation instructions and installation videos upon delivery.
