Quick Details
-
Model Number:
-
GS-PIR11
-
Warranty:
-
2 years
-
Type:
-
PIR Motion Sensor
-
Sensing Range:
-
6m max
-
Series:
-
PIR Motion Sensor Switch
-
Manufacturing Date Code:
-
2023
-
Detection Angle:
-
360 degree
-
Detection Diameter:
-
6m max(<24℃)
-
Installation Height:
-
2.5m-3.5m
-
Delay Time:
-
10s-30s-90s-5min-10min-30min
-
Moving Speed:
-
0.6-1.5m/s
-
Server Power Consumption:
-
0.5W
Quick Details
-
Voltage:
-
24V AC/DC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GASIM
-
Model Number:
-
GS-PIR11
-
Warranty:
-
2 years
-
Type:
-
PIR Motion Sensor
-
Sensing Range:
-
6m max
-
Series:
-
PIR Motion Sensor Switch
-
Manufacturing Date Code:
-
2023
-
Detection Angle:
-
360 degree
-
Detection Diameter:
-
6m max(<24℃)
-
Installation Height:
-
2.5m-3.5m
-
Delay Time:
-
10s-30s-90s-5min-10min-30min
-
Moving Speed:
-
0.6-1.5m/s
-
Server Power Consumption:
-
0.5W
Products Description

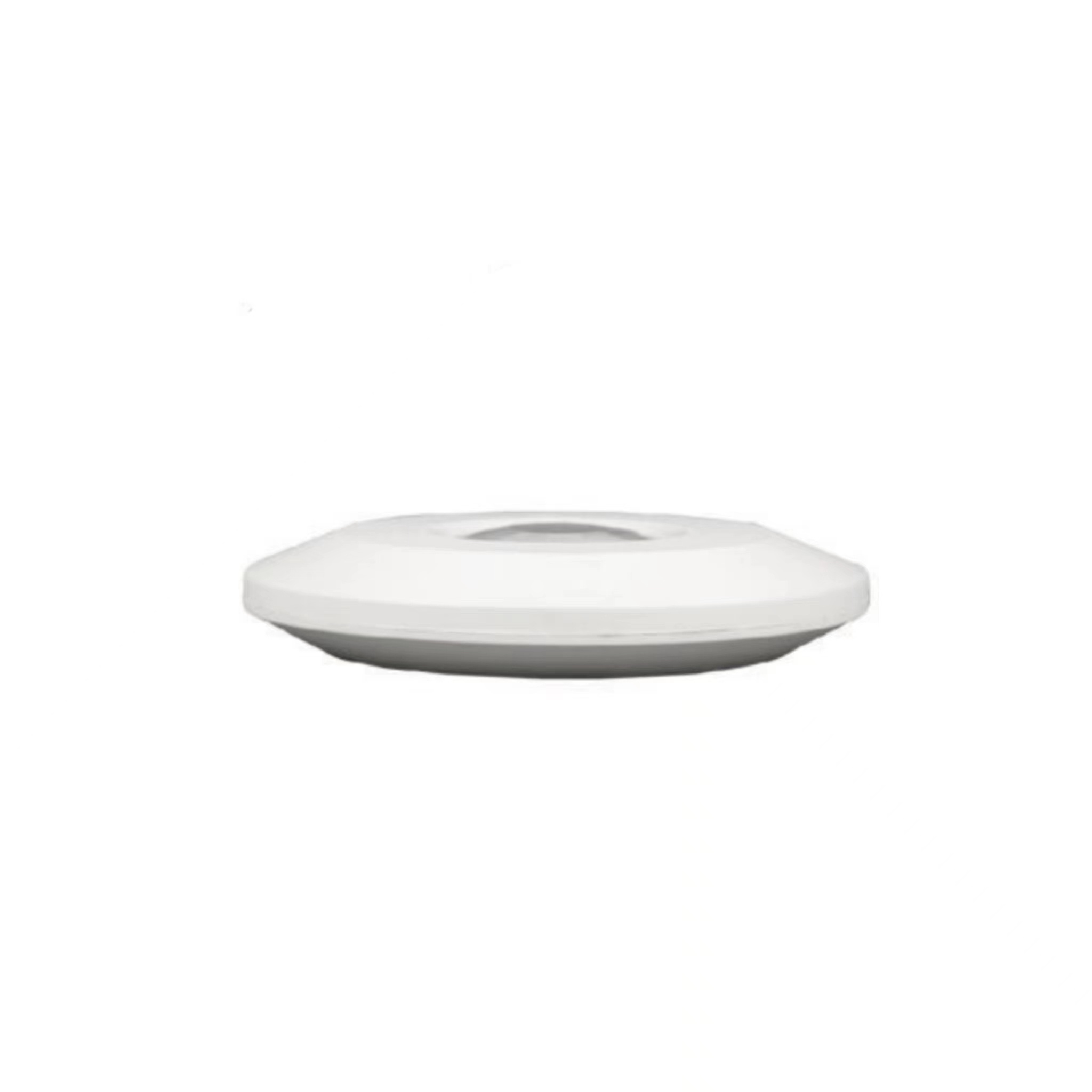

PIR Motion Sensor—GS-PIR 11
|
Specifications For GS-PIR11 PIR Motion Sensor
|
|
|
|
|
||||
|
Input Voltage
|
24V AC/DC
|
|
|
|
||||
|
Delay Time
|
10s-30s-90s-5min-10min-30min
|
|
|
|
||||
|
Sensing Ambient Brightness
|
3~2000 lux (adjustable)
|
|
|
|
||||
|
Detection Angle
|
360°
|
|
|
|
||||
|
lnstallation Height
|
2.5m-3.5m
|
|
|
|
||||
|
Moving Speed
|
0.6~1.5m/s
|
|
|
|
||||
|
Sensing Distance
|
6m max(<24℃)
|
|
|
|
||||
|
Series
|
PIR Motion Sensor Switch
|
|
|
|
||||
|
Mounting Type
|
Flushed-Mount
|
|
|
|
||||
Applications
