Quick Details
Quick Details
-
Place of Origin:
-
zhejiang
-
Brand Name:
-
XT
-
Model Number:
-

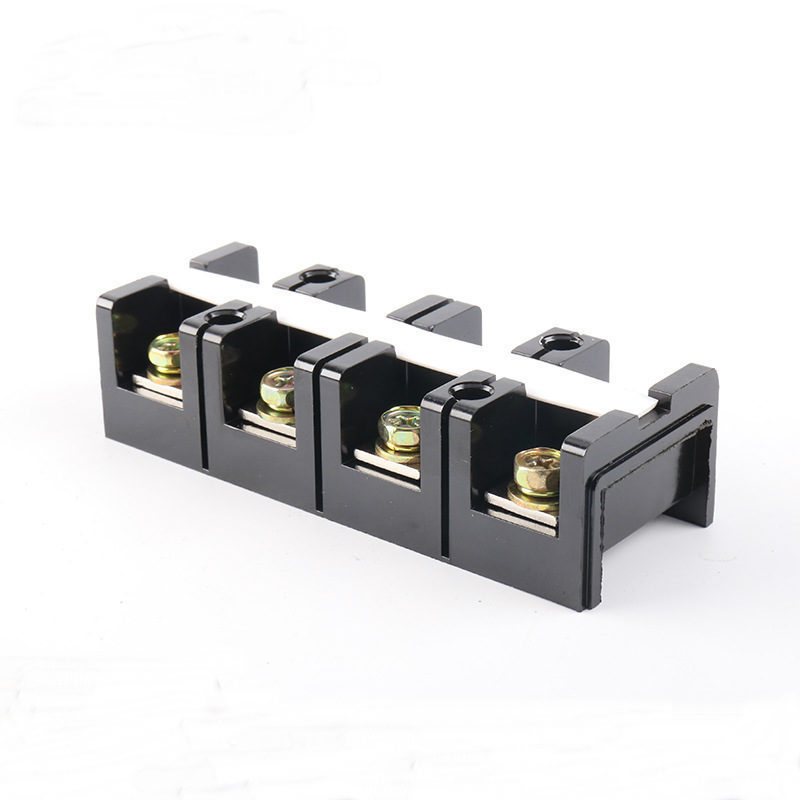

TC-604
1. The outer casing is made of thermosetting plastics.
2. Copper conductor, good electrical conductivity, nickel-plated anti-corrosion.
3. Dust-proof and transparent plastic protective cover for durability.
|
TC Series Connectors Terminals Terminal Blocks 1. Adopting thermosetting plastics, the safety factor of high current is more reliable; structure parts adopt plate screw clamping technology; rated AC voltage is 600V, rated current of conducting strips is as following: 60A100A150A200A300A400A600A; the range of wire section is from 10mm to 300mm. 2. It can be divided into 3P4P flat screw installation according to arrangement;it will be more reliable by using together wih OTUT terminations; it can be used for connecting high current of kinds of electric devices. |
| Model of product | Wire Section(mm²) | Rated Current(A) | Rated Voltage(V) | Wide/High/Thick |
| TC-603 | 14 | 60 | 600 | 85/43/32.5 |
| TC-604 | 14 | 60 | 600 | 112/43/32.5 |
| TC-1002 | 22 | 100 | 600 | 68/54.5/37.8 |
| TC-1003 | 22 | 100 | 600 | 104/55.4/37.8 |
| TC-1004 | 22 | 100 | 600 | 136/55.5/37.8 |
| TC-1503 | 60 | 150 | 600 | 117/67/40.8 |
| TC-1504 | 60 | 150 | 600 | 157/67/40.8 |
| TC-2003 | 100 | 200 | 600 | 134/72/46.5 |
| TC-2004 | 100 | 200 | 600 | 177/72/46.5 |
| TC-3003 | 150 | 300 | 600 | 164/90.5/50.6 |
| TC-3004 | 150 | 300 | 600 | 220/98.4/50.6 |
| TC-4003 | 200 | 400 | 600 | 164/90.5/50.6 |
| TC-4004 | 200 | 400 | 600 | 220/89.4/50.6 |
| TC-6003 | 300 | 600 | 600 | 205/100/75 |
| TC-6004 | 300 | 600 | 600 | 275/100/75 |
