Quick Details
-
Type:
-
Piezoelectric Ceramics
-
Material:
-
barium titanate
-
Application:
-
Sensor, cleaning,beauty
-
MOQ:
-
5pcs
-
Shape:
-
Ring/disc/rectangle/square/tube
-
Color:
-
Silver
-
Quality guarantee:
-
Strictly Tested
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Devey
-
Model Number:
-
P43-38*13*6.35
-
Type:
-
Piezoelectric Ceramics
-
Material:
-
barium titanate
-
Application:
-
Sensor, cleaning,beauty
-
MOQ:
-
5pcs
-
Shape:
-
Ring/disc/rectangle/square/tube
-
Color:
-
Silver
-
Quality guarantee:
-
Strictly Tested
Product Description
PiezoelectricCeramics (PZT) materials are categorized as functional ceramics. In sensors they make it possible toconvert forces,pressures and accelerations into electrical signals, and in sonic and ultrasonic transducers and actuators they convert electric voltages into vibrations or deformations.PiezoelectricCeramics materials are classified according to their chemical composition on the one hand, and by the specific application conditions on the other.

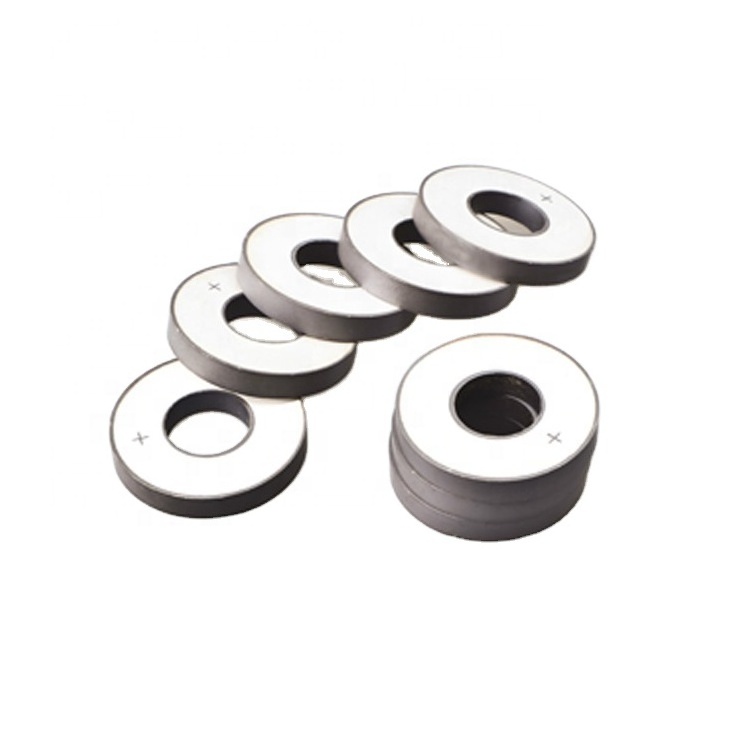

Factory Direct Sale transducer PZT ring Piezoelectric Piezo Ceramics
|
Dimension
|
Capacitance
|
Wastage
|
Frequency
|
coupling coefficient
|
Mechanical quality factor
|
|
|
(mm)
|
(pF)
|
tgδ(%)
|
(kHz)
|
Kp (%)
|
|
1
|
P43-Φ25*Φ9.5*3
|
1650
|
0.3
|
61.8
|
60
|
|
2
|
P43-Φ25*Φ10*3
|
1600
|
0.3
|
60
|
60
|
|
3
|
P43-Φ30*Φ8*5
|
1550
|
0.35
|
56.5
|
60
|
|
4
|
P43-Φ30*Φ9*5
|
1490
|
0.36
|
55.7
|
60
|
|
5
|
P43-Φ30*Φ12*5
|
1310
|
0.31
|
49.8
|
60
|
|
6
|
P43-Φ30*Φ15*5
|
1200
|
0.35
|
46
|
60
|
|
7
|
P43-Φ35*Φ15*5
|
1905
|
0.3
|
42.6
|
60
|
|
8
|
P43-Φ35*Φ15*5.5
|
1590
|
0.36
|
41.6
|
60
|
|
9
|
P43-Φ38*Φ15*5
|
2320
|
0.3
|
40.2
|
60
|
|
10
|
P43-Φ38*Φ15*6
|
1890
|
0.35
|
39.7
|
60
|
|
11
|
P43-Φ38*Φ15*6.5
|
1785
|
0.3
|
40.2
|
60
|
|
12
|
P43-Φ43.8*Φ13*6.35
|
2000
|
0.32
|
38.5
|
60
|
|
13
|
P43-Φ45*Φ15*5
|
3600
|
0.42
|
36.8
|
60
|
|
14
|
P43-Φ50*Φ17*5
|
3980
|
0.32
|
31.3
|
60
|
|
15
|
P43-Φ50*Φ17*6
|
3630
|
0.35
|
31.9
|
60
|
|
16
|
P43-Φ50*Φ17*6.5
|
3240
|
0.3
|
31.8
|
60
|
|
17
|
P43-Φ50*Φ20*6.35
|
3600
|
0.35
|
30
|
60
|
|
18
|
P43-Φ50*Φ20*6
|
3330
|
0.3
|
30.5
|
60
|
|
19
|
P43-Φ50*Φ20*6.5
|
3400
|
0.32
|
31
|
60
|
|
20
|
P43-Φ60*Φ30*10
|
2570
|
0.3
|
22.7
|
60
|
|
16
|
P43-Φ50*Φ17*6.5
|
3240
|
0.3
|
31.8
|
60
|
|
17
|
P43-Φ50*Φ20*6.35
|
3600
|
0.35
|
30
|
60
|
|
18
|
P43-Φ50*Φ20*6
|
3330
|
0.3
|
30.5
|
60
|
|
19
|
P43-Φ50*Φ20*6.5
|
3400
|
0.32
|
31
|
60
|
|
20
|
P43-Φ60*Φ30*10
|
2570
|
0.3
|
22.7
|
60
|
Product packaging
