Quick Details
-
Brand Name:
-
Fuyuan
-
Voltage:
-
380V / 220V
-
Power:
-
3KW
-
Dimension(L*W*H):
-
1200*2400*1700mm
-
Weight:
-
3000 kg
-
Marketing Type:
-
New Product 2021
-

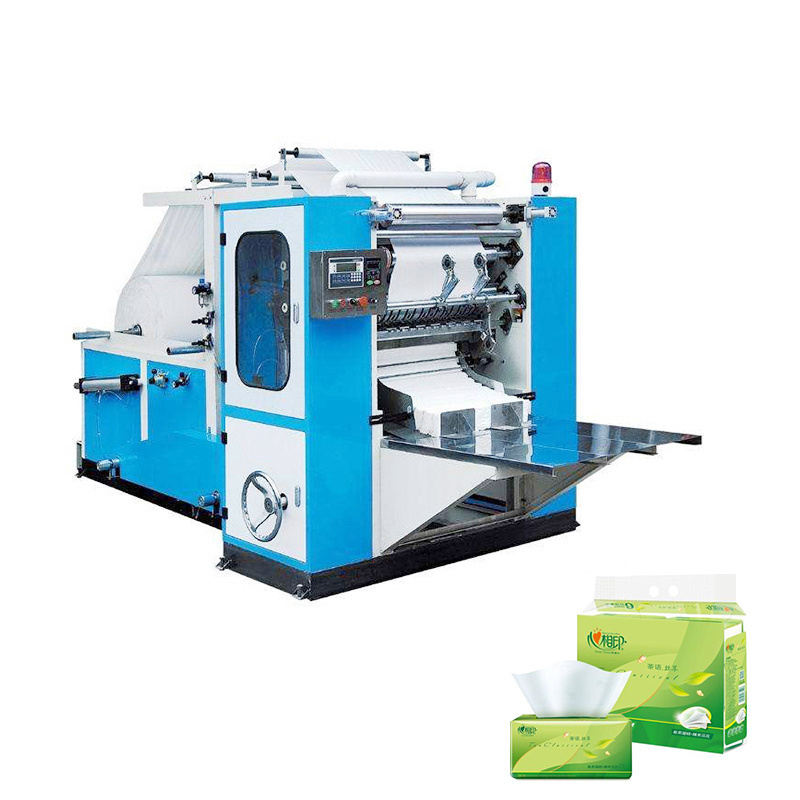

Product name:
-
Facial Tissue Machine
-
Color:
-
Optional Color
-
Speed:
-
200m/min
-
Finished size:
-
140*140mm-200*200mm(Customized)
-
Control system:
-
Frequency Converter Control System
-
Embossing rollers:
-
Steel rolls to woolen rolls
-
Folding type:
-
V fold
-
Raw material:
-
Jumbo Tissue Paper Roll
-
Raw paper diameter:
-
Max 1200mm
-
Certification:
-
ISO/CE/TUV
Quick Details
-
Production Capacity:
-
30 sets/month
-
Product Type:
-
Facial Tissue Machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fuyuan
-
Voltage:
-
380V / 220V
-
Power:
-
3KW
-
Dimension(L*W*H):
-
1200*2400*1700mm
-
Weight:
-
3000 kg
-
Marketing Type:
-
New Product 2021
-
Product name:
-
Facial Tissue Machine
-
Color:
-
Optional Color
-
Speed:
-
200m/min
-
Finished size:
-
140*140mm-200*200mm(Customized)
-
Control system:
-
Frequency Converter Control System
-
Embossing rollers:
-
Steel rolls to woolen rolls
-
Folding type:
-
V fold
-
Raw material:
-
Jumbo Tissue Paper Roll
-
Raw paper diameter:
-
Max 1200mm
-
Certification:
-
ISO/CE/TUV
Production Description
The
paper machine
is a professional equipment for paper. The slitted paper paper is cut by a spiral knife roll, and the interlocking type is folded into a chain type rectangular towel to draw paper. Product use: The paper machine folds and cuts the paper, so that the raw material is folded into an "V" type paper towel for people to use. Need labor: Small paper machine requires one person, large paper machine requires two people
Requires site: 50-200 square meters
(including production area, warehouse area) (strict paper control, the highest available dust-free workshop) Use of raw materials: Small paper machine can use the paper (the large shaft paper is cut through the paper cutting machine). The large paper machine can directly on the large shaft paper. Finished product type: It can produce soft paper, boxed paper (only the different packaging machines are used, the paper machine is the same), soft paper can be used in family life, carry it, or bag Printed advertisements are used by hotels; boxed paper can be used for
advertising
at gas stations,
KTVs
and
restaurants
.
Technical Parameters
|
Machine Model
|
FY-2L/3L/4L/6L
|
|
|
Product Size(mm)
|
200*200(Other Size are Available)
|
|
|
Paper Diameter(mm)
|
φ1300mm(Other Size are Available)
|
|
|
Paper Core Inner Dia
|
φ76.2mm(Other Size are Available)
|
|
|
Machine Speed
|
0-180m/min
|
|
|
Controller
|
Electromagnetic Speed
|
|
|
Embossing Device
|
Steel to Steel Embossing
|
|
|
Embossing Roller End
|
Felt Roller,Wool Roller,Rubber Roller,Steel Roller
|
|
|
Blank Lines
|
Steel on Steel,The Independent Regulator
|
|
|
Cutting System
|
Pneumatic point cut
|
|
|
Vacuum System
|
7.5kw
|
|
|
Pneumatic Syatem
|
3 air compressor,at least the pressure 5kg/cm2Pa
|
|
|
Host Power
|
3kw
|
|
|
Dimensions
|
5150mm*1300mm*1920mm
|
|
|
Weight
|
Depending on the model and configuration to the actual weight
|
|
|
Optional
|
|
|
|
Use of Power
|
Frequency Control,Electromagnetic Speed
|
|
|
Embossing Device
|
Steel to Rubber Roller,Steel to Steel Embossing,Steel to Felt Roller,Wool Roller of Steel
|
|
|
Embossing Roller End
|
Felt Roller,Wool Roller,Rubber Roller,Steel Roller
|
|
|
Cutting System
|
Pneumatic Point Cut,Full-cut
|
|
|
Blank Lines
|
Steel on Steel,The Independent Regulator
|
|
Details Images
Recommend Products
FAQ
1.Why we choose your company, what could you do for me?
We have established for 31 years and have the stable production experience.
We use the best raw material to guarantee the product’s quality
Warranty: we make our machines one year warranty.
We will always give you heart to heart service
We always speak with facts and quality
2. How we visit your factory and what will be the procedure?
Our company located in Zhengzhou city,Henan province, if you take plane, it needs about 2 hours from Guangzhou city, 1.5hours from shanghai city and 1 hour from Beijing.we will pick you up from airport as well as the train station. We will take you to see our machine running in our Chinese clients' paper mill. Welcome you and your team to visit our factory and production line at any time!
3. Could your engineer teach and train our worker and stay in our factory for long time?
Yes, we have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary.
