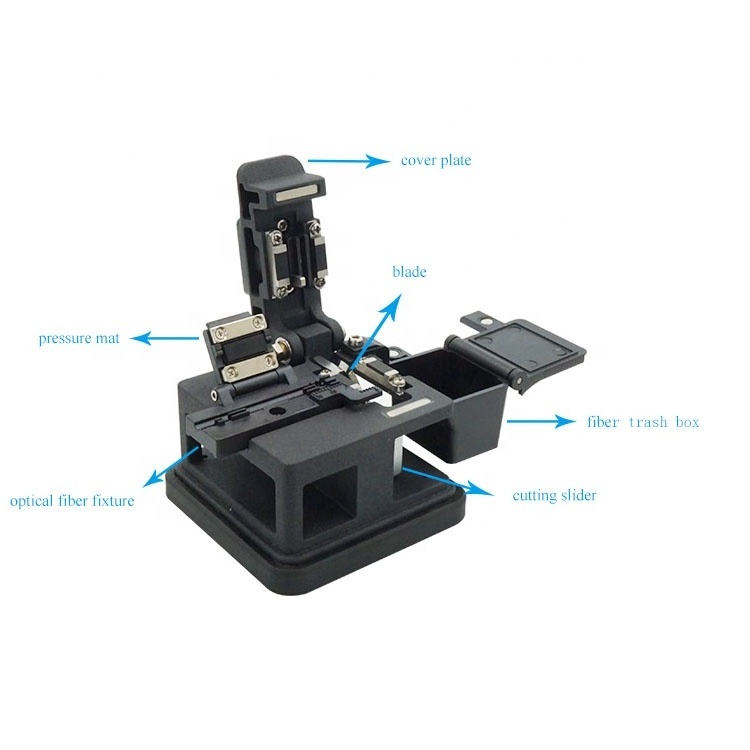

FOC-197 high precision optical fiber cleaver is used for precision cutting
single core fiber.
It not only apply to 250μm coated fiber, also apply to 900μm coated fiber, cutting angle is smaller and more precise, do not need special skills.
|
Product Model
|
Fiber Clever FOC-197
|
|
Optical Fiber Cladding Diameter
|
125 um
|
|
Fiber Coating Diameter
|
0.25-0.9mm
|
|
The length required to be removed before optical fiber cutting
|
Fiber cutting length ≥18mm
|
|
Fiber cutting length
|
5-20mm
|
|
Fiber cutting angle
|
≤0.8°
|
|
Blade life
|
48,000 (1000 timesx 16 position x3 high)
|
|
Size
|
63*65*60mm
|
|
Weight
|
180g
|
|
The jip
|
Four in one multifunction jip
|
