Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220/380
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Livingh2o
-
Dimension(L*W*H):
-
3500*800*1700mm
-
Weight:
-
400 KG
-
Product name:
-
water cup filling machine jelly yoghurt cup machine
-
Filling products:
-
Water, Milk, Fruit Juice, Jelly, Cream, etc.
-
Material:
-
SUS 304
-
Processing:
-
Filling+Sealing
-
Cup size:
-
50-500ml(customized)
-
Cup type:
-
plastic cup
-
Filling nozzles:
-
2/4/6/8/10/12(customized)
-
Film type:
-
film roll / sheet
-
Machine material:
-
Stainless Steal
-
Control:
-
Touch screen
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 6000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99%
-
Voltage:
-
220/380
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Livingh2o
-
Dimension(L*W*H):
-
3500*800*1700mm
-
Weight:
-
400 KG
-
Product name:
-
water cup filling machine jelly yoghurt cup machine
-
Filling products:
-
Water, Milk, Fruit Juice, Jelly, Cream, etc.
-
Material:
-
SUS 304
-
Processing:
-
Filling+Sealing
-
Cup size:
-
50-500ml(customized)
-
Cup type:
-
plastic cup
-
Filling nozzles:
-
2/4/6/8/10/12(customized)
-
Film type:
-
film roll / sheet
-
Machine material:
-
Stainless Steal
-
Control:
-
Touch screen
Automatic pure water cup filling machine jelly yogurt milk jelly juice cup fill seal machine
cup filling machine
:
BEST PRICE, HIGH QUALITY, GOOD SERVICE!!
TIME IS MONEY IN THIS BUSINESS, SO LET'S GET RIGHT TO IT.
CONTACT ME RIGHT NOW!
Fresh & healthy water from LIVINGH2O
Feature :
It is applicable of fill and seal of the container of plastic cup and bowls,box and other containers by filling liquid or cream material.such as:juice , yoghourt,drink,mineral water and so on.It is full automatic processing of cup-feeding,filling and sealing.With photoelectric device, it assures registration of designs on the seals. There are many models in the series to meet with the difference of container and contents of calcium grain,flesh and additional solid particle,and date-printing device according to clients' demand.
|
Model |
JYX-BG -4 |
|
Packaging Speed : |
4800 – 6000 pcs / hour |
|
Film Width : |
320mm |
|
Power : |
3-phase 4-line socket(380V50HZ) |
|
Electric Machinery Power : |
0.75kw |
|
Heat Up Power : |
4kw |
|
Air Pressure : |
0.5Mpa - 0.7Mpa |
|
Max.Air Consumption : |
0.45m/min |
|
Machine Dimension(L*W*H) : |
3500*800*1700mm |
|
Timing Mode : |
frequency control |
|
N.W. : |
Apro× 1200kg |
Configuration:
1. RO water treatment system : 500L-10000L per hour
2. Cup water filling machine, filling, capping, sealing
3. Ink-jet printer
4. Steam label shrinkage tunnel
5. Automatic film shrinkage packing machine.

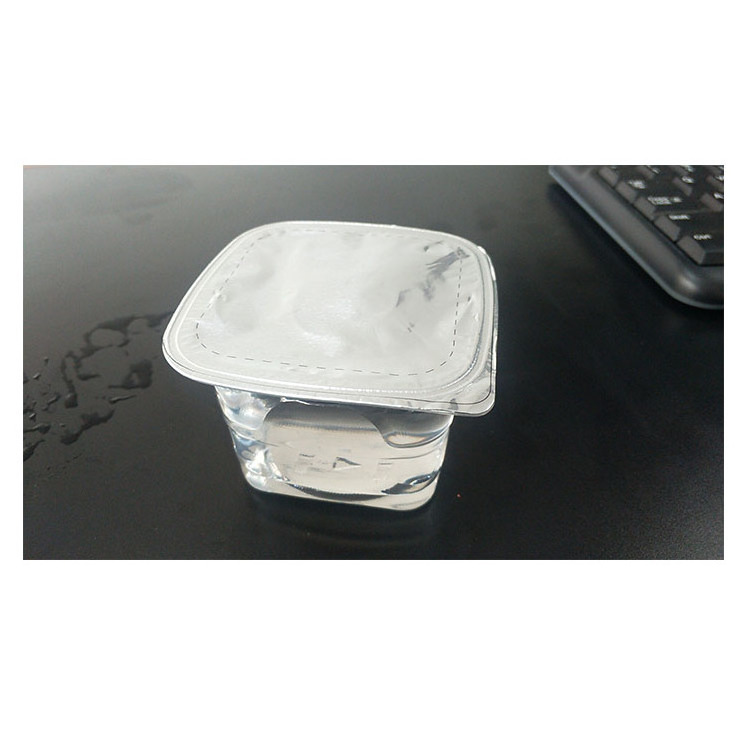

Finished product :
Successful cases:
Livingh2o Machinery
can provide turnkey services for customers, from plant layout, equipment manufacture and production line installation to operator training and other after-sales services .
Why choose us:
1, We enforce the ISO9000 quality management system strictly. We have the falutless quality control program, From product design, raw material selection, spare parts inspection, To machanical product inspection, skilled workers, ex-factory inspection , packaging ways, etc.
2, Our chief engineer and the main technical personnel have above 10 years experience, a number of technologies are national patents;
3, We promise 1 year warranty for all products, long-term technical support;
4, We always put customers' view in the first place , create value for the customer's business.
