Quick Details
-
Model Number:
-
PIR Sensor Switch
-
Warranty:
-
2 years
-
Type:
-
IR Sensor Switch
-
Power:
-
192W
-
Sensing Range:
-
5 ~ 8 M
-
IP level:
-
IP33
-
Channel:
-
1CH
-
Delay time:
-
1-10min (adjustable)
Quick Details
-
Voltage:
-
12-24V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
PIR Sensor Switch
-
Warranty:
-
2 years
-
Type:
-
IR Sensor Switch
-
Power:
-
192W
-
Sensing Range:
-
5 ~ 8 M
-
IP level:
-
IP33
-
Channel:
-
1CH
-
Delay time:
-
1-10min (adjustable)

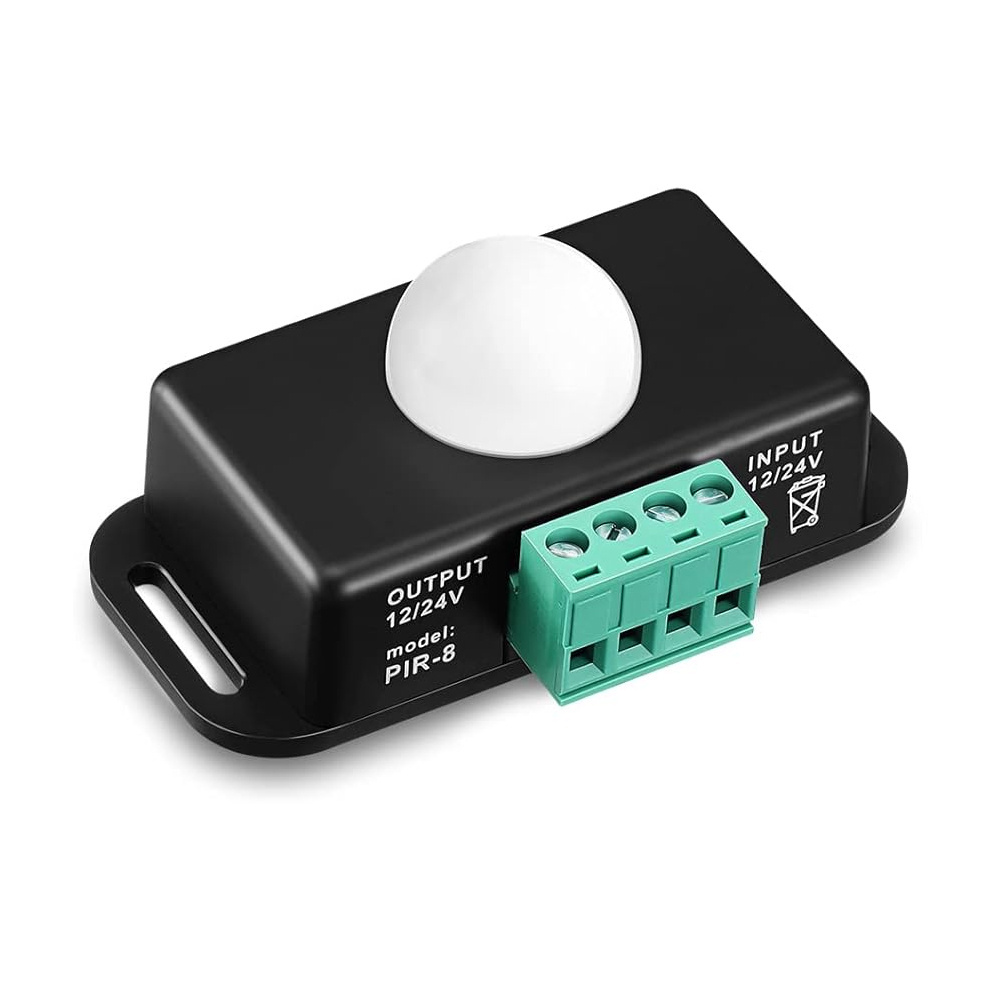

Mini PIR Motion Sensor Switch
Specifications
1.easy to use
2.sensitive to human body.
3.CE&ROHS certificated
4.one year guarantee
Summarization
The human body is an infrared detection sensor switch controller, the use of infrared detection control the
load of the switch.Users according to actual needs, the human body sensors installed in the appropriate
environment
Technical parameters
Working temperature: -20-60 °C
Supply voltage: DC12/24V
Output voltage: DC12/24V
Output: 1 channel
Sensing distance: 5 ~ 8 M.
Ham should angle: 60 degrees.
Output current: <6A
Delay time: 1-10min (adjustable)
External dimension: L76 Χ W45 Χ H34 mm
Packing size: L104 Χ W64 Χ H41 mm
Net weight: 32g
Gross weight: 50g
Direction for Use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between
connecting wire before you turn on the power ;
2. There is a time setting knob on the back of the controller, rotate the knob, you can set the delay time of
human body induction switch, when detecting someone, it lights up the light, and after the time of people
leaving reaches the set delay time, the light will be turn off automatically.
3. The controller signal output line and input line should be connected correctly.
