Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Right
-
Capacity:
-
6,10,20,30 kg
-
Accuracy Class:
-
C3
-
Sensitivity:
-
2.0 ± 10%mV/V
-
Application:
-
Packing scales,hopper scales and industrial measuring system
-
Defined Grade:
-
IP 66
-
Weight approx.:
-
0.6 Kg
-
Warranty:
-
12 Months
-
Usage:
-
PRESSURE SENSOR
-
Theory:
-
Resistance Sensor
-
Output:
-
Analog SENSOR
Quick Details
-
Mounting Type:
-
OEM
-
Description:
-
OEM
-
Model Number:
-
T723
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Right
-
Capacity:
-
6,10,20,30 kg
-
Accuracy Class:
-
C3
-
Sensitivity:
-
2.0 ± 10%mV/V
-
Application:
-
Packing scales,hopper scales and industrial measuring system
-
Defined Grade:
-
IP 66
-
Weight approx.:
-
0.6 Kg
-
Warranty:
-
12 Months
-
Usage:
-
PRESSURE SENSOR
-
Theory:
-
Resistance Sensor
-
Output:
-
Analog SENSOR
Introduction

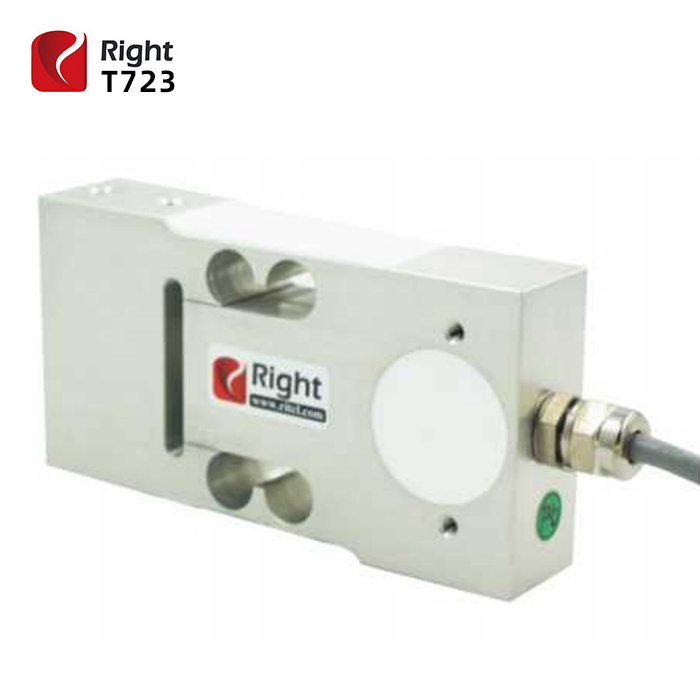

The High-Speed Load Cell for Dynamic Weighing The T723 single point load cell features high rigidity, which makes it ideal for fast, dynamic weighing processes – unique in the world with this high accuracy. T723 Single Point Load Cell: Extremely Fast Weighing with Accuracy Class C3 The T723 single point load cell is ideally suited for fast, dynamic weighing, for example in multihead combination weighers. With IP66 degree of protection, it is ideal for reliable use in industrial environments, for example filling bulk materials or in many other kinds of filling applications. The T723 has uniquely high rigidity and therefore an extremely high natural resonant frequency. This ensures low settling times, which in turn results in extremely short weighing times. With a high maximum scale interval factor and accuracy class C3, it returns reliable and has very precise measurement results. Thanks to the patented overload stop in compressive and tensile direction, it can withstand overloads of up to five times the maximum capacity. Available with protective housing, six maximum capacities between 6 kg and 30 kg, and different cable lengths, the T723 single point load cell comes in an extensive range of versions. It has standard footprint for compatible usage. For even more demanding operating conditions. Accuracy class: C3 multirange Maximum capacity: 6 kg to 90 kg Degree of protection: IP66 Accurate measurements Exact measurements up to accuracy class C3 (according to OIML) Precise results with high maximum scale interval factor up to 15,000
- Parameter -
|
Specifications
|
|
|
|
Capacity
|
6,10,20,30 kg
|
|
|
Rated output
|
2.0±10%mV/V
|
|
|
Zero balance
|
2.0±10%mV/V
|
|
|
Non-linearity
|
0.0166%F.S.
|
|
|
Hysteresis
|
0.0166%F.S.
|
|
|
Repeatability
|
0.02%F.S.
|
|
|
Creep(30min)
|
0.017%F.S.
|
|
|
Temp.effect on output
|
0.017%F.S./10℃
|
|
|
Temp.effect on zero
|
0.02%F.S./10℃
|
|
|
Input impedance
|
420±20Ω
|
|
|
Output impedance
|
350±10Ω
|
|
|
Insulation
|
≥5000MΩ/100VDC
|
|
|
Recommended excitation
|
5~15V
|
|
|
Maximum excitation
|
20V
|
|
|
Compensated temp range
|
-10~40℃
|
|
|
Operation temp range
|
-20~60℃
|
|
|
Safe overload
|
150%F.S.
|
|
|
Ultimate overload
|
300%F.S.
|
|
|
Cable size
|
φ4.6×1500mm
|
|
|
Material
|
Aluminum alloy
|
|
|
Weight approx.
|
0.6kg
|
|
|
Max.platform size
|
600x600mm
|
|
- Dimension -
- Load Direction -
- Wiring Code -
