Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
12V gearbox
-
Application:
-
Electric Valve / Robotic Hobbies
-
Rated Voltage:
-
12v24vdc
-
Color:
-
Silver
-
Material:
-
Metal Steel
-
Rated Speed:
-
135rpm
-
Shaft diameter:
-
4mm
-
Keywords:
-
12v Dc Motor
Quick Details
-
Speed(RPM):
-
215rpm
-
Continuous Current(A):
-
0.9A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
12V gearbox
-
Application:
-
Electric Valve / Robotic Hobbies
-
Rated Voltage:
-
12v24vdc
-
Color:
-
Silver
-
Material:
-
Metal Steel
-
Rated Speed:
-
135rpm
-
Shaft diameter:
-
4mm
-
Keywords:
-
12v Dc Motor

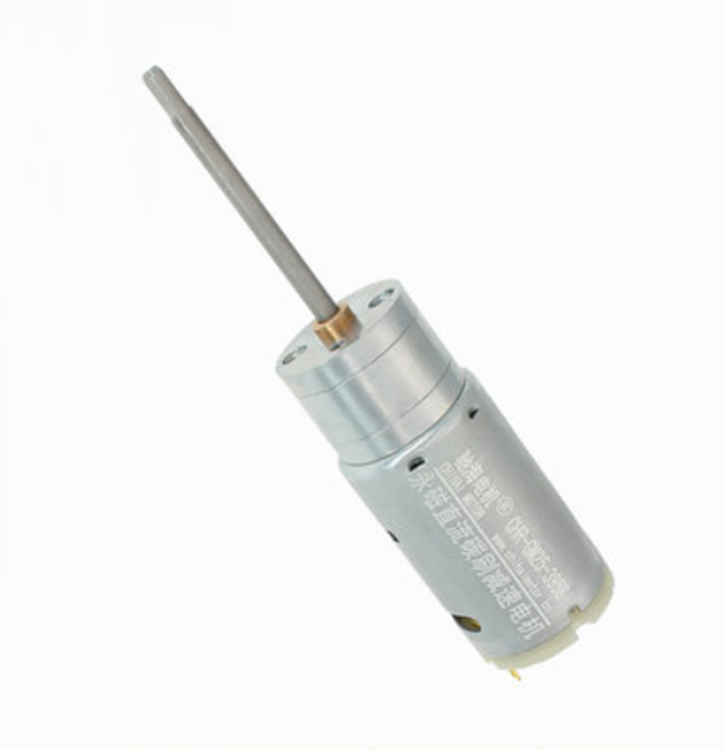

50mm shaft GM25-395S 12volt 395 DC Motor with 25mm Gearbox Small Slow Rotating Motor for Electric Valve / Robotic Hobbies
|
Chihai motor |
|
|
Model: |
CHR-GM25-395 Long shaft dc gearbox reduction motor |
|
shaft length : |
50.5mm 8D |
|
Shaft diameter: |
4mm |
|
Voltage : |
DC 3-24 V |
|
Application: |
Intelligent vacuum cleaner, floor sweeper, electric foot trimmer, etc |
we have stock for below parameters:
|
CHR-GM25-395 Long shaft dc gearbox reduction motor |
||
|
Rated voltage: |
DC 12V |
|
|
No-load speed: |
480rpm 130mA |
|
|
Max efficiency Point parameter |
torque: |
1.5kg.cm (0.15N.M) |
|
Speed: |
215rpm |
|
|
Power: |
3.4w |
|
|
Current: |
0.9A |
|
|
Max power point parameter |
torque: |
3.8kg.cm (0.38N.M) |
|
Speed: |
135rpm |
|
|
Power: |
5.3w |
|
|
Current: |
2.0A |
|
|
Stall current: |
1.2A |
|
|
Stall torque: |
1.8kg.cm |
|
