Quick Details
-
Type:
-

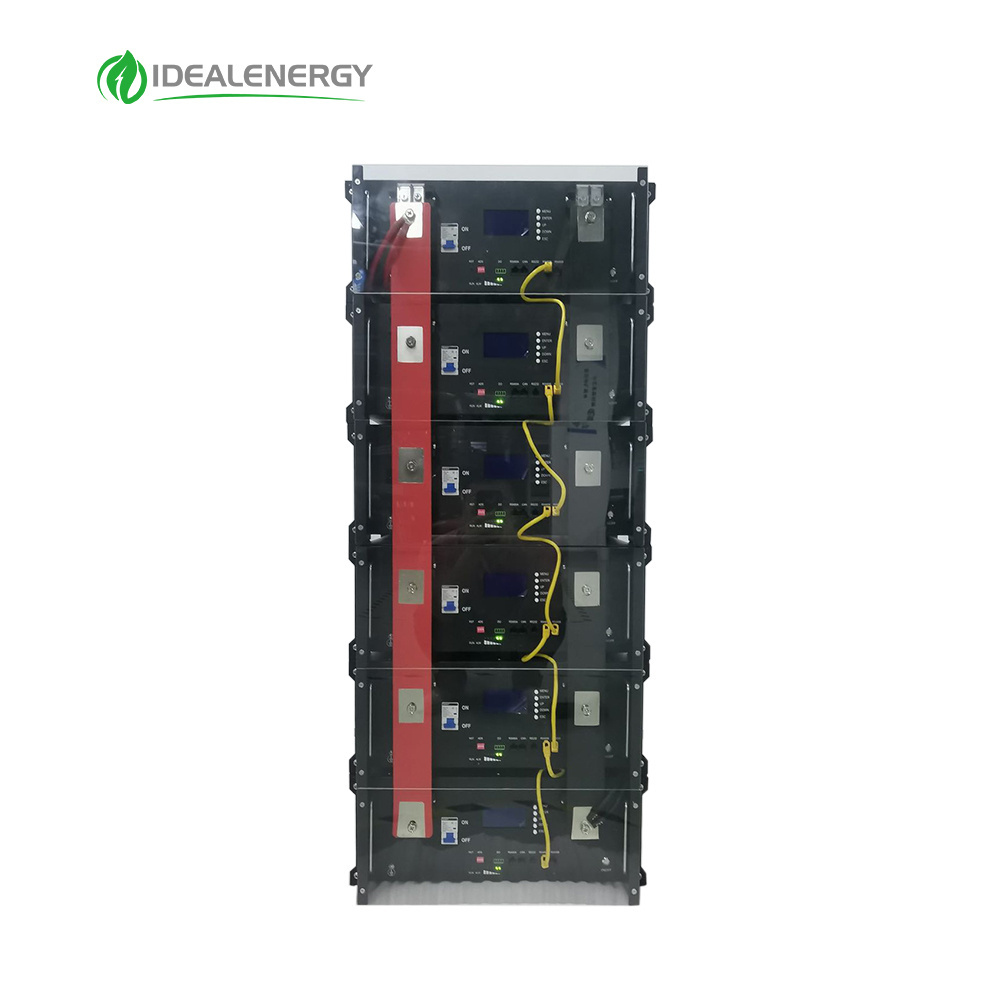

lithium LiFePO4 Battery
-
Application:
-
Solar Energy Storage Systems
-
Nominal Voltage:
-
51.2V
-
Cycles life:
-
6000 times @90%DOD
-
Rated Capacity:
-
600Ah
-
IP Protection:
-
IP21
-
Certification:
-
IEC,CE,UL,MSDS,UN38.3
-
Energy:
-
30KWH
-
Environment:
-
Indoor
-
Weight:
-
350KG
Quick Details
-
Model Number:
-
INE-TG BOX48600
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ideal new energy
-
Type:
-
lithium LiFePO4 Battery
-
Application:
-
Solar Energy Storage Systems
-
Nominal Voltage:
-
51.2V
-
Cycles life:
-
6000 times @90%DOD
-
Rated Capacity:
-
600Ah
-
IP Protection:
-
IP21
-
Certification:
-
IEC,CE,UL,MSDS,UN38.3
-
Energy:
-
30KWH
-
Environment:
-
Indoor
-
Weight:
-
350KG
Product Description
Product Details
Production Paramenters
|
Model
|
INE-TG-BOX 48600
|
INE-TG-BOX 48800
|
INE-TG-BOX 481000
|
||
|
Nominal Voltage
|
51.2V
|
51.2V
|
51.2V
|
||
|
Capacity
|
600Ah
|
800Ah
|
1000AH
|
||
|
Rated Energy
|
30KWH
|
40KWH
|
50KWH
|
||
|
Internal Resistance
|
≤60mΩ
|
|
|
||
|
Cycle Life
|
≥6000cycles@80%DOD,25℃，0.5C
|
|
|
||
|
Design Life
|
≥10 Years
|
|
|
||
|
Max. Continuous
Work Current |
200A
|
300A
|
400A
|
||
|
Discharge cut -off Voltage
|
45V±1.0V(15S);48V±1.0V(16S);
|
|
|
||
|
Charge Temperature
|
0℃~60℃
|
|
|
||
|
Discharge Temperature
|
-20℃~60℃
|
|
|
||
|
Storage Temperature
|
-40℃~55℃ @ 60%±25% relative humidity;
|
|
|
||
|
Installation
|
Rack Mount
|
|
|
||
|
Cell Technology
|
Lithium-iron phosphate (LiFePO4)
|
|
|
||
|
Batteries in parallel
|
Support up to 10 batteries in parallel
|
|
|
||
|
Protocol (optional)
|
RS232-PC,RS485(B)-PC
RS485(A)-Inverter,Canbus-Inverter
|
|
|
||
|
Certificates
|
UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
|
|
|
||
|
Dimension
|
600*800*988
|
600*800*1166
|
600*800*1388
|
||
|
Battery Net Weight (Approx.)
|
350KG
|
460KG
|
570KG
|
||
|
Model
|
INE-TG-BOX 481200
|
INE-TG-BOX 481400
|
INE-TG- BOX 481600
|
||
|
Nominal Voltage
|
51.2V
|
51.2V
|
51.2V
|
||
|
Capacity
|
1200Ah
|
1400Ah
|
1600AH
|
||
|
Rated Energy
|
60KWH
|
70KWH
|
80KWH
|
||
|
Internal Resistance
|
≤60mΩ
|
|
|
||
|
Cycle Life
|
≥6000cycles@80%DOD,25℃，0.5C
|
|
|
||
|
Design Life
|
≥10 years
|
|
|
||
|
Max. Continuous
Work Current |
400A
|
|
|
||
|
Discharge Cut-off Voltage
|
45V±1.0V(15S);48V±1.0V(16S);
|
|
|
||
|
Charge Temperature
|
0℃~60℃
|
|
|
||
|
Discharge Temperature
|
-20℃~60℃
|
|
|
||
|
Storage Temperature
|
-40℃~55℃ @ 60%±25% relative humidity;
|
|
|
||
|
Installation
|
Rack Mount
|
|
|
||
|
Cell Technology
|
Lithium-iron phosphate (LiFePO4)
|
|
|
||
|
Batteries in parallel
|
Support up to 10 batteries in parallel
|
|
|
||
|
Protocol (optional)
|
RS232-PC,RS485(B)-PC
RS485(A)-Inverter,Canbus-Inverter
|
|
|
||
|
Certificates
|
UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
|
|
|
||
|
Dimension
|
600*800*1610mm
|
600*800*1833mm
|
600*800*2055mm
|
||
|
Battery Net Weight (Approx.)
|
680KG
|
780KG
|
900KG
|
||
