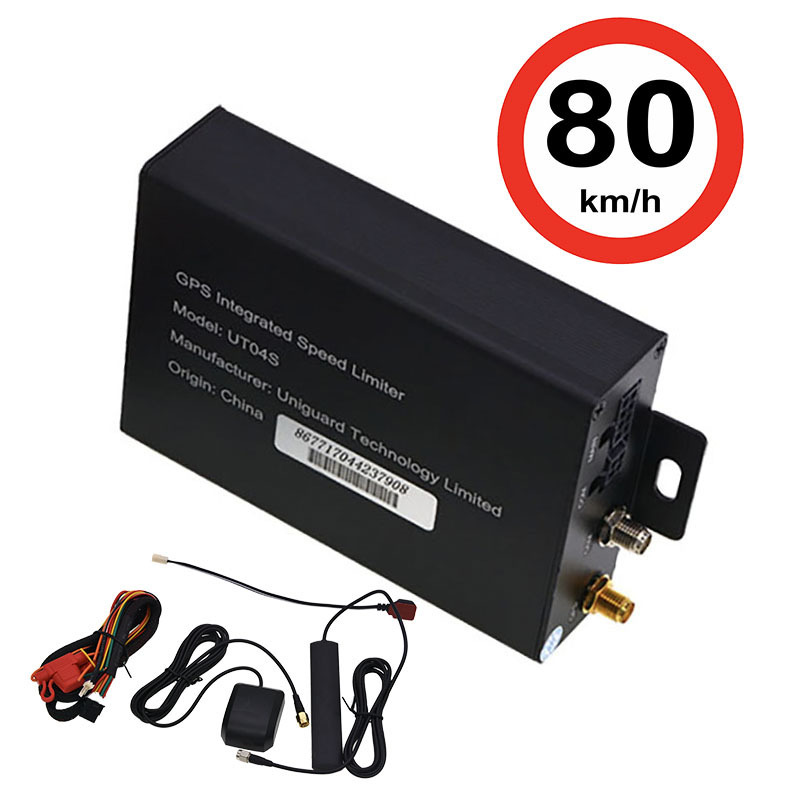

2G GPS Speed Governor Vehicle Truck Car GPS Speed Limiter System For Speed Control
What is a GPS speed Limiter
A gps speed limiter is a combination of vehicle GPS tracker and vehicle speed limit technology. GPS integrated speed limiter device is designed to limit the maximum road speed of motor vehicles by control of engine power.
Which country needs GPS integrated speed limiter?
Currently Kenya and Ethiopia in Africa has published standards, respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
Which country needs GPS integrated speed limiter?
Currently Kenya and Ethiopia in Africa has published standards, respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
Products Description
GPS Speed Limiter Features:
1.
GPS Speed Limiter.
User can setup top speed to limit vehicle speed either by SMS or computer based tool.
2. Geo fence based Speed Limit. The device support 3 fences to setup different speed limit per fences.
3. USB flash data downloaded . Vehicle travelling data could be retrieved by using a computer or a USB flash or a wireless
printer.
4. Data could be stored for at least 72 working hours for future reference, including date, time, speed, car plate number, owner name, fitting center, installer name, installed date, longitude, latitude, etc.
5. Tamperproof. UniGuard vehicle speed limiters are specially designed for none drivers or any other unauthorized people can tamper with the installed devices. Once device is tampered, it shall go to limp mode- vehicle speed is restricted to 40KM/H or 30KM/H. (Per Kenya or Ethiopia Standard)
6. Pre-warn if 95% of set speed limit is reached, beep sound will be produced continuously.
7. In installation UniGuard speed governor could be hidden in a place not accessible by unauthorized people.
8. The speed limiter recorder could communicate with computer by use of USB flash.
9. 6 to 60V working Voltage. Wide applicable for trucks, cars, school buses, taxi and other commercial vehicles.
10. Wireless Data Printing. Support connection with wireless portable printer and print the past 24 hr driving data.
2. Geo fence based Speed Limit. The device support 3 fences to setup different speed limit per fences.
3. USB flash data downloaded . Vehicle travelling data could be retrieved by using a computer or a USB flash or a wireless
printer.
4. Data could be stored for at least 72 working hours for future reference, including date, time, speed, car plate number, owner name, fitting center, installer name, installed date, longitude, latitude, etc.
5. Tamperproof. UniGuard vehicle speed limiters are specially designed for none drivers or any other unauthorized people can tamper with the installed devices. Once device is tampered, it shall go to limp mode- vehicle speed is restricted to 40KM/H or 30KM/H. (Per Kenya or Ethiopia Standard)
6. Pre-warn if 95% of set speed limit is reached, beep sound will be produced continuously.
7. In installation UniGuard speed governor could be hidden in a place not accessible by unauthorized people.
8. The speed limiter recorder could communicate with computer by use of USB flash.
9. 6 to 60V working Voltage. Wide applicable for trucks, cars, school buses, taxi and other commercial vehicles.
10. Wireless Data Printing. Support connection with wireless portable printer and print the past 24 hr driving data.
Advantages of UniGuard GPS tracker integrated speed governor
* Safety by avoid over speeding.
* Increasing engine life
* Increasing engine efficiency
* Reduce maintenance cost
* Reduce pollution, increase environmental protection
* Ensure road safety for pedestrian, drivers, passengers and goods.
* Increasing engine life
* Increasing engine efficiency
* Reduce maintenance cost
* Reduce pollution, increase environmental protection
* Ensure road safety for pedestrian, drivers, passengers and goods.
Product Paramenters
|
Name
|
UT04 GPS speed Limiter
|
Battery
|
800 mAh rechargeable
|
||
|
Weight
|
191g
|
Working Power
|
2A
|
||
|
Dimension
|
110*75*30mm
|
GSM Chip
|
Quectel
|
||
|
Working Voltage
|
9-36V
|
GPS Chip
|
Ub-7020
|
||
|
GPS Speed Limiter Port
|
|
1 AD Port for fuel monitoring
|
|
||
|
|
|
1 USB port for USB disk data download
|
|
||
|
|
|
2 Port for Speed Limit
|
|
||
|
|
|
1 Input for Pulse speed
|
|
||
|
|
|
1 Input for wireless printer
|
|
||
|
Built in Flash
|
Store data of 72hrs
|
Built in Buzzer
|
Alarm when over speed and limit speed
|
||
|
Tracking Way
|
Web and APP
|
Account Level
|
Unlimited
|
||
|
Reports
|
Trip report, Speed report, Geo-fence report, Parking report, Driving Report, Alarm report, Mileage report, Engine Idle report
|
|
|
||
Connection diagram
Standard GPS Speed Limiter
Actuator for Mechanical Vehicle
Data download by USB disk
Wireless Printer for Data Printing
Solenoid Valve
Web Tracking
Advanced web tracking software,
Fast login
One click to view all devices status
Realtime location tracking
FAQ
Q: How to monitor the GPS Tracker?
A: User can login the web gps tracking software and Phone IOS/Android Tracking APP to monitor their vehicle or pets or kids respectively at real time.
Q: Can I have admin account at the gps tracking system and any monthly cost?
A: We shall offer you admin account so you can create subaccount. No monthly or yearly subscription charge for long term business.
Q: How much data is needed per month?
A: Per real test, a month 30 Mb GPRS data plan is enough. For voice recording device, it may need more depending on the frequency of voice message.
Q: Do you offer branded service?
A: YES.
Software: We can support clients with customized URL. Need yearly order above 1000 units.
Hardware. We offer logo printing on both GPS tracking device and Packing box. MOQ is 200 pcs.
Q: How do you support me and what is the warranty?
A: We offer real time support by Phone, Email and Whatsapp. 24 months warranty available.
Q: Can the GPS tracking device work in my country?
A: Except USA, Australia, Canada, Singapore, Japan, Korea, which need 3G or 4G GPS locator, almost all the rest countries still support 2G internet and use 2G GPS tracking system.
Q: What is minimum order quantity?
A: We advise clients to take at least 2 samples for testing purpose.
A: User can login the web gps tracking software and Phone IOS/Android Tracking APP to monitor their vehicle or pets or kids respectively at real time.
Q: Can I have admin account at the gps tracking system and any monthly cost?
A: We shall offer you admin account so you can create subaccount. No monthly or yearly subscription charge for long term business.
Q: How much data is needed per month?
A: Per real test, a month 30 Mb GPRS data plan is enough. For voice recording device, it may need more depending on the frequency of voice message.
Q: Do you offer branded service?
A: YES.
Software: We can support clients with customized URL. Need yearly order above 1000 units.
Hardware. We offer logo printing on both GPS tracking device and Packing box. MOQ is 200 pcs.
Q: How do you support me and what is the warranty?
A: We offer real time support by Phone, Email and Whatsapp. 24 months warranty available.
Q: Can the GPS tracking device work in my country?
A: Except USA, Australia, Canada, Singapore, Japan, Korea, which need 3G or 4G GPS locator, almost all the rest countries still support 2G internet and use 2G GPS tracking system.
Q: What is minimum order quantity?
A: We advise clients to take at least 2 samples for testing purpose.
