38CrMoAl screw&barrel with nitrogen treatmentCast-Aluminum heating ,each heating zone is controlled independently
equip with fan cooling for each heating zone
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
110 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Greenlandplast
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
15*1.5*3m
-
Power (kW):
-
50
-
Weight:
-
8 KG
-
Certification:
-
CE ISO
-
Marketing Type:
-
New Product 2020
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
65/132
-
Screw Speed (rpm):
-
110 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Greenlandplast
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
15*1.5*3m
-
Power (kW):
-
50
-
Weight:
-
8 KG
-
Certification:
-
CE ISO
-
Marketing Type:
-
New Product 2020
Product Overview
Greenlandplast

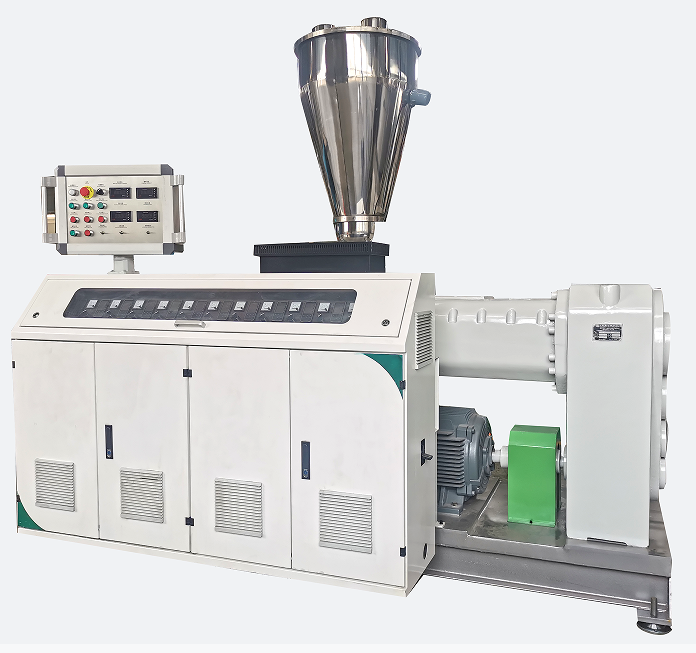

WPC extruder machine for construction plastic panels machine for producing hdpe plastic floor panels plastic board machine
WPC extruder WPC Wood plastic composite WPC making machine manufacturer
is mainly used for wood plastic composite product, which is widely used in outdoor parks and outdoor pavilions ,also indoor decorative product. The production line can select different specifications of conical twin-screw extruders according to different profile sections and molds, and configure the corresponding vacuum setting table, tractor, cutting machine, turning platform and other auxiliary equipment
PRODUCT SPECIFICATIONS
|
Extruder model
|
SJSZ55/110
|
SJSZ65/132
|
|
SJSZ80/156
|
SJSZ92/188
|
|
||
|
Main motor power
|
22kw
|
37kw
|
|
55kw
|
110kw
|
|
||
|
Forming Table
|
YF240
|
YF240
|
YF300
|
YF600
|
YF900
|
YF1200
|
||
|
Product witdth
|
240mm
|
240mm
|
300mm
|
600mm
|
900mm
|
1200mm
|
||
|
Vacuum pump
|
2*5.5kw
|
4*5.5kw
|
4*5.5kw
|
4*5.5kw
|
1*7.5kw&2*11kw
|
1*7.5kw&2*11kw
|
||
|
Water pump
|
1.5kw
|
4kw
|
4kw
|
7.5kw
|
7.5kw
|
7.5kw
|
||
|
Hauling speed
|
0-5m/min
|
0-5m/min
|
0-5m/min
|
0-3m/min
|
0-2.5m/min
|
0-2.5m/min
|
||
|
Auxiliary equipments power
|
22kw
|
35kw
|
35kw
|
44kw
|
52kw
|
62kw
|
||
|
Output
|
70kgh
|
120kgh
|
120kgh
|
180kgh
|
400kgh
|
400kgh
|
||
PRODUCT CONFIGURATION
Conical twin screw extruder
On-line embossing machine
auto on-line embossing machine &brushing machine
Vacuum forming table
stainless steel304 plate
with vacuum pump（optional）
with water pump
Cutting machine
automatic cutting ,length may be set by customized request
Stacker
to pack and collect product easily
