Quick Details
-
Display:
-
1.6 inch LCD
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Power Supply:
-
200~250Vac, 50/60Hz
-
Interval:
-
1 Mins
-
Battery for Saving Programs:
-
1.2V/40mAh inside
-
Output:
-
Voltage output
-
Certificates:
-
CE RoHS EMC LVD
-
Dimension:
-
60mm*60mm*32mm
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Display:
-
1.6 inch LCD
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Power Supply:
-
200~250Vac, 50/60Hz
-
Interval:
-
1 Mins
-
Battery for Saving Programs:
-
1.2V/40mAh inside
-
Output:
-
Voltage output
-
Certificates:
-
CE RoHS EMC LVD
-
Dimension:
-
60mm*60mm*32mm

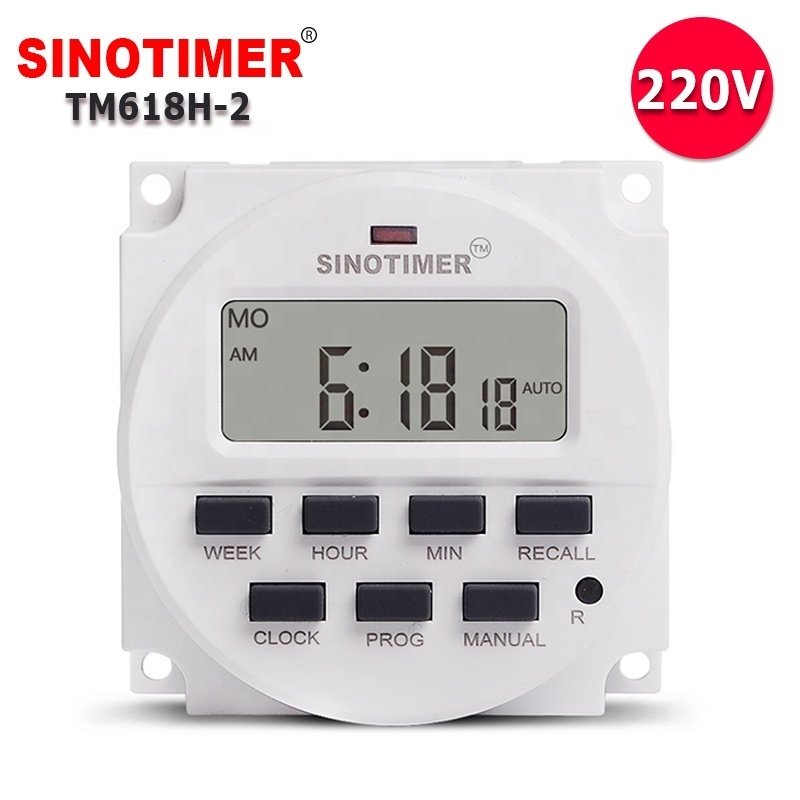

220V Power Supply 7 Days Weekly Programmable Digital Electronic Lighting Daily Timer
The TM618 Weekly Timer is used whenever electrical equipment must be periodically switched on and off at preprogrammed daily or weekly times.The programmed evernts are then repeated during the next periods accordingly
Application:
- Solar
- Gate
- LED
- Lighting and Feeder
- heating and refrigerating systems
- boiler
- overns
- dryers
- defrosting equipments
- swimming pools
- sprinkler
- hatcheries
- illumination
Characteristics:
* You can use the timer to SWITCH ON/OFF any electrical equipments at a preset timer
* 16 ON/OFF programs per day, 15 combinations to a week.
* 24 hours / 7 days a week programmable.
* Built-in battery for backup the memory (save the programs you set)when power failure
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually
* Easy to read LCD display, LED indicators
* Admissible ambient temperature: -10 C to 55 C
* Square housing & slide bracket available as option
* Form C output, NO, NC, Common, 1/4 Quick Connect
* Contact rating: Resistive 16A, Inductive 8A, Motor 1/2HP
Specification:
PLEASE SPECIFY DESIRED VOLTAGE YOU NEED FOR YOUR APPLICATION...12VDC/AC, 24VDC/AC, 120VAC, 240VAC
Payment Terms: Paypal, Western Union, T/T
|
Temp. Range: -20° C+50° C |
Power supply: DC5V, 12V, 24V, AC: 12-250V, 50/60Hz |
|
Power loss: Less than1W |
Display: LCD |
|
Capacity: 16(8) 250V AC |
Black-out: 60 days |
|
Timer range: 1min~168hr |
Recharge battery: 1.2V 40mA |
|
Average error: 1s/24h, 25° C |
Weight: 80g |
|
Programs: 16 on/off each day or week |
Standard: GB/T14536.1 |
Package infos:
unit weight:0.085kgs
packing: 100pcs/ctns, 8.5kgs (GW)
dimensions:35*24*29cm
