- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ANCN
-
Model Number:
-
ACL-1
-
Type:
-

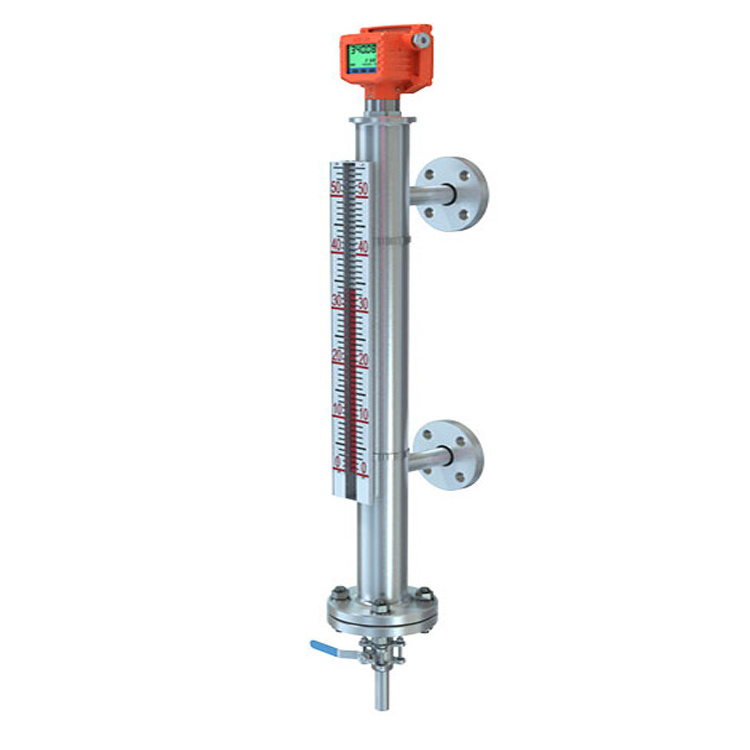

Magnetic floating level meter
-
Linear error:
-
≤0.05%FS
-
Accuracy:
-
0.2/0.5/1
-
Output signal:
-
4~20mA
-
Communication:
-
RS485(Modbus RTU)
-
Measuring Range:
-
50-20000mm
-
Operating Environment:
-
-30℃~70℃
-
Medium temperature:
-
-40~85℃
-
Power supply:
-
(12~24)V DC
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
3 years
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ANCN
-
Model Number:
-
ACL-1
-
Type:
-
Magnetic floating level meter
-
Linear error:
-
≤0.05%FS
-
Accuracy:
-
0.2/0.5/1
-
Output signal:
-
4~20mA
-
Communication:
-
RS485(Modbus RTU)
-
Measuring Range:
-
50-20000mm
-
Operating Environment:
-
-30℃~70℃
-
Medium temperature:
-
-40~85℃
-
Power supply:
-
(12~24)V DC
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
ANCN
|
|
Model Number
|
ACL-1
|
|
Type
|
Magnetic floating level meter
|
|
Linear error
|
≤0.05%FS
|
|
Accuracy
|
0.2/0.5/1
|
|
Output signal
|
4~20mA
|
|
Communication
|
RS485(Modbus RTU)
|
|
Measuring Range
|
50-20000mm
|
|
Operating Environment
|
-30℃~70℃
|
|
Medium temperature
|
-40~85℃
|
|
Power supply
|
(12~24)V DC
|
Measuring range Rigid rod : ≤6m
Flexible rod: (3.5~20)m (to be customized )
Upper fade zone of the liquid level measuring:≤100mm
Floor fade zone of the liquid level measuring:≤60mm
Floor fade zone of Interface measurement :≤15mm.
Flexible rod: (3.5~20)m (to be customized )
Upper fade zone of the liquid level measuring:≤100mm
Floor fade zone of the liquid level measuring:≤60mm
Floor fade zone of Interface measurement :≤15mm.
Power (12~24)V DC
Output type Two wire(4〜20)mA DC / RS485communication
Temperature measuring range (-40~+85)℃, with gauge head: --20~+70℃
Output type Two wire(4〜20)mA DC / RS485communication
Temperature measuring range (-40~+85)℃, with gauge head: --20~+70℃
No linear Superior to ±0.2% FS(in 500mm, the maximum error is 1mm)
Repeatable error Superior to ±0.01% FS
Repeatable error Superior to ±0.01% FS
Resolution Superior to ±0.01% FS
Temperature influence ±0.01% FS /℃
Zero correction range 100%FS
Temperature influence ±0.01% FS /℃
Zero correction range 100%FS
ANCN Smart Instrument Inc. invests more than 15% of its revenue in scientific research every year, has declared 220 patents and software copyrights, and has been awarded "National Specialized and New Little Giant", "High-tech Enterprise", "National Hard Technology Enterprise Star", and "Shaanxi Province" "Intellectual Property Advantage Enterprise", "Xi'an Oil and Gas Field Smart Equipment Engineering Technology Research Center", "Smart Oil and Gas Field Demonstration Unit" and other honors. It is a qualified supplier of "PetroChina, Sinopec, CNOOC, National Pipeline, Yanchang Petroleum and other well-known energy companies. Focus on core business: intelligent instrumentation, oil and gas field Internet of things, artificial intelligence special robots.
