Quick Details
-
Brand Name:
-
QYM
-
Model Number:
-
QYM-High Security Fence
-
clour:
-
various kind
-
Surface Treatment:
-
Galvanized
-
Wire Gauge:
-
on request
-
Function:
-
gardon ,community,administration unite,etc etc
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rot Proof, Tempered Glass, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QYM
-
Model Number:
-
QYM-High Security Fence
-
clour:
-
various kind
-
Surface Treatment:
-
Galvanized
-
Wire Gauge:
-
on request
-
Function:
-
gardon ,community,administration unite,etc etc

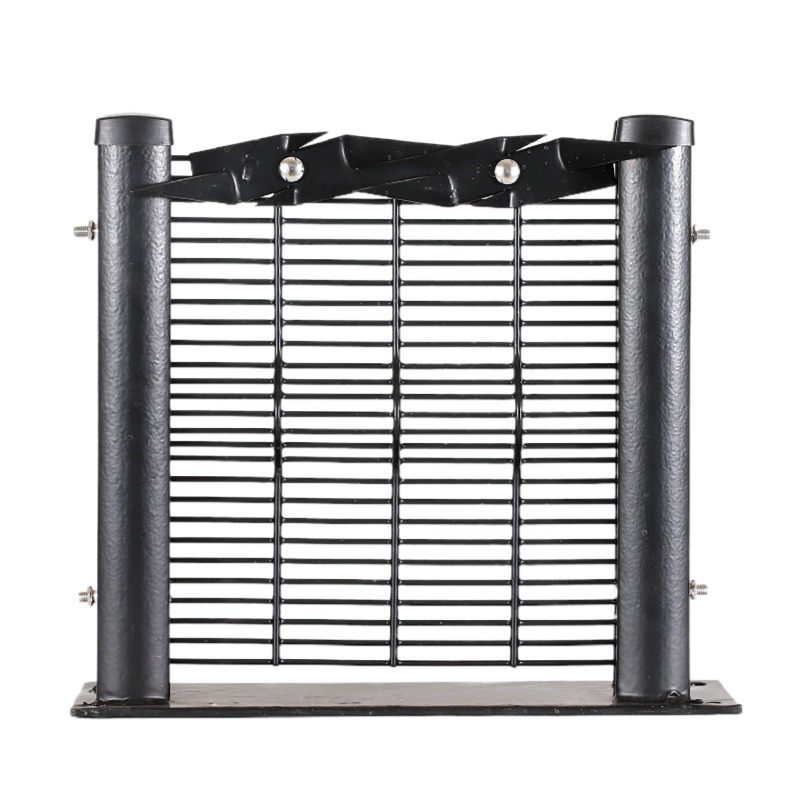

QYM-
high security fence
High security fencing systerm is well known in the world as an anti-climb & anti-cut through barrier, while providing the lowest level of visual impact to the surroundings. The panels are welded with high quality carbon steel wires. It is designed to give attractive, long lasting and secure perimeter protection for industrial and commercial properties, public utilities, and it is really suited for electronic alarm and detection systems - no blind spots for CCTV. It is also a good choice for airports, secure units and prisons.
|
Mesh
|
Wire Thickness
|
Surface Treatment
|
Panel Width
|
Height
|
|
76.2x12.7mm
|
Horizontal wire:3.0 ,3.5,
4.0mm
Vertical wire :4.0mm
|
Galvanized and
Electrostatic polyester
powder coated or
hot dipped galvanized
|
2.50m
or 2.20m
|
1800mm
|
|
|
|
|
|
2000mm
|
|
|
|
|
|
2100mm
|
|
|
|
|
|
2200mm
|
|
|
|
|
|
2400mm
|
|
|
|
|
|
2500mm
|
|
|
|
|
|
3000mm
|
*Weld strength:
- 75% of the minimum tensile strength of the wire, Tensile range 540-690 N/m2
|
Mesh
|
Wire Thickness
|
Surface Treatment
|
Folds NOS
|
Height
|
|
76.2x12.7mm
|
Horizontal wire:
3.0 ,3.5,4.0mm
Vertical wire :
4.0mm
|
Galvanized and Electrostatic polyester powder coatedor hot dipped galvanized
|
3
|
1800mm
|
|
|
|
|
3
|
2000mm
|
|
|
|
|
4
|
2100mm
|
|
|
|
|
4
|
2200mm
|
|
|
|
|
4
|
2400mm
|
|
|
|
|
5
|
2500mm
|
|
|
|
|
6
|
3000mm
|
*Weld strength:
- 75% of the minimum tensile strength of the wire, Tensile range 540-690 N/m2
|
Profile
|
Wall Thickness
|
Surface Treatment
|
Length
|
Rain hat
|
|
80x60mm
|
3.00mm
|
Galvanized and
Electrostatic polyester
powder coated
or hot dipped galvanized
|
On the basis of
panel height
|
Plastic or Metal
|
|
Profile
|
Wall Thickness
|
Surface Treatment
|
Length
|
Rain hat
|
|
83x64mm
|
3.00mm
|
Galvanized and
Electrostatic polyester
powder coated
or hot dipped galvanized
|
On the basis
of panel height
|
Plastic or Metal
|
Variations for post
In addition to the standard posts many variations are available to accommodate site requirements:
•alternative sections
• wall fixing plates, cranked posts or base plated
• cranked or straight extensions for barbed or razor wire
• cranked panels
• cranked panels
• concrete or wooden posts with through-bolts and fixing plates
Features
anti-climb & anti-cut
high security products
galvanized + powder coated available
hot dipped galvanized available
easy installation
customer specs available
hot sale products
Electricity providers and regional networks
Water industry
Elecoms industry
law enforcement
Railway line / Track Protection
Motorways and highway protection
Schools,Colleges & Universities
Research laboratories
