Quick Details
-
Brand Name:
-
UT-King
-
Use:
-
FTTH
-
Warranty Time:
-
1YEARS
-
Color:
-
Black
-
Application:
-
FTTH system
-
Certification:
-
CE RoHS FCC
-
Operating humidity:
-
5%~90%
-
Transmission Distance:
-
MMF: 2 km; SMF: 20~120km; Cat5: 100m
-
Power:
-
External power
-
Wavelength:
-
850/1310/1550 nm
-
Electrical Connector:
-
RJ45
-
PoE Power:
-
15.4W
-
Operating temperature:
-
0 ~ 40℃
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
UT-MC201
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UT-King
-
Use:
-
FTTH
-
Warranty Time:
-
1YEARS
-
Color:
-
Black
-
Application:
-
FTTH system
-
Certification:
-
CE RoHS FCC
-
Operating humidity:
-
5%~90%
-
Transmission Distance:
-
MMF: 2 km; SMF: 20~120km; Cat5: 100m
-
Power:
-
External power
-
Wavelength:
-
850/1310/1550 nm
-
Electrical Connector:
-
RJ45
-
PoE Power:
-
15.4W
-
Operating temperature:
-
0 ~ 40℃

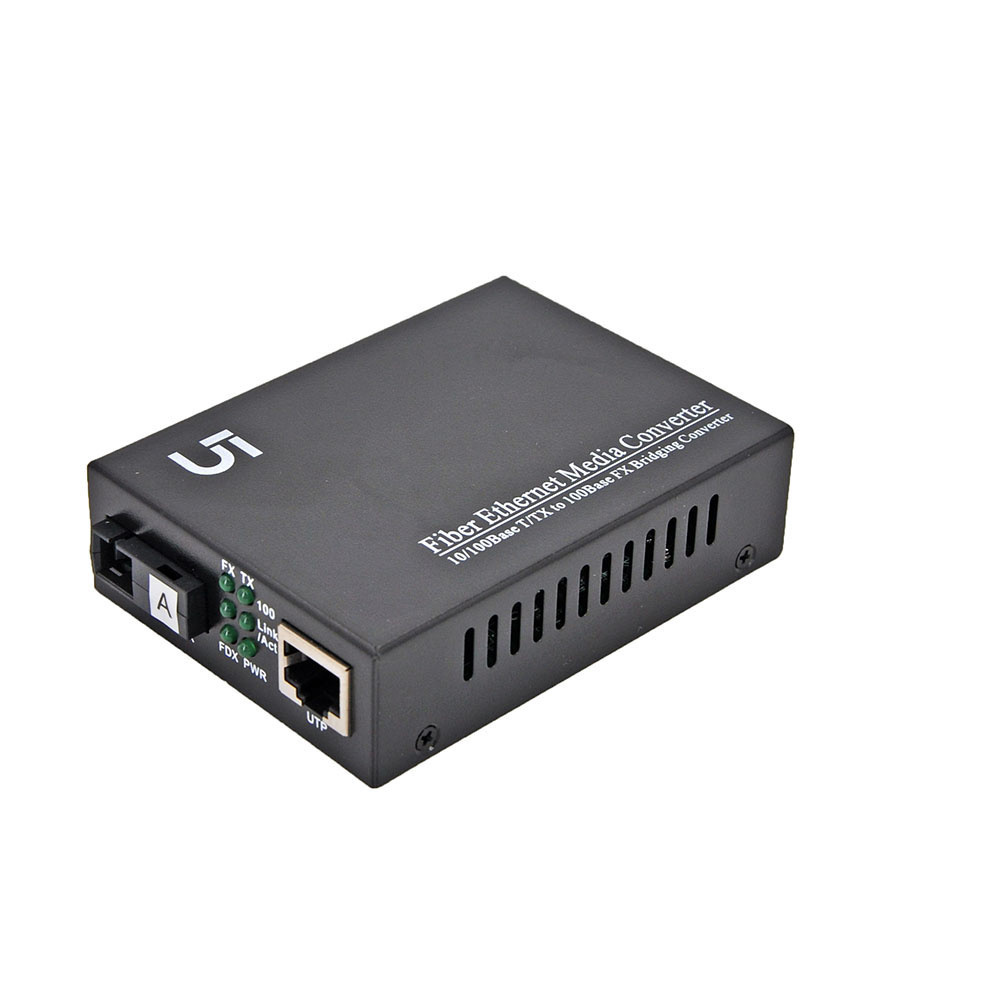

10/100M PoE Fast fiber optic Ethernet Media Converter
【
About Product
】
Unmanaged Media Converter
series PoE Ethernet media converter convert 10/100Bas-T electrical signals with 100Base-FX optical signals, while providing Power
over Ethernet (PoE) of 15.4W to powered device (PD) such as IP cameras, VoIP phones and wireless access points. It extends the
network transmission distance from 100m over copper cables to 120km over fiber optical cable. SH-111f full series of feature rich
PoE media converters provides options in single mode/multimode, single fiber (WDM), SFP, SC/FC/ST/LC connector, different
distances, etc. It is widely used in telecommunication, LAN, datacomm, transportation, security transmission…
> Provide 15.4Watt PoE power
> Auto 10/100Base-T
> Support 100Base-F
> Auto full/half-duplex
> Auto MDI/MDI-X
> Support Link Failure Pass Through (LFP)
> Support VLAN long package, QoS
> Comply with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3af
> Multi-mode or Single mode optional
> Single fiber (WDM) or dual fiber optional
> SFP module optional
【
Product
Features
】
1.Complies with ITU-T984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4 provides comprehensive GPON network compatibility
2.Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
3.Fiber access and gigabit port provide incredibly fast transfer speeds
4.Supports OMCI (ONU Management CONUrol Interface) remote management
2.Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
3.Fiber access and gigabit port provide incredibly fast transfer speeds
4.Supports OMCI (ONU Management CONUrol Interface) remote management
|
Item
|
Specifications
|
|
Standard
|
Copper: 10/100Mbps; Fiber: 100Mbps
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
Transmission distance
|
MMF: 2 km; SMF: 20~120km; Cat5: 100m
|
|
Electrical Connector
|
RJ45
|
|
Fiber Connector
|
Duplex or simplex SC (ST or FC optional); SFP (LC)
|
|
PoE Voltage
|
36-57 VDC
|
|
PoE Means
|
12+/36- or 45+/78-
|
|
PoE Power
|
15.4W
|
|
LED indicator
|
PWR (power supply), TX LINK/ACT (TP cable link/act), FX LINK/ACT (Fiber link/act), FDX (full duplex), TX 100M (TP 100Mbps), FX
100M (Fiber 100Mbps) |
|
Dimensions
|
71 (W) x 26 (H) x 94 (L) (mm)
|
|
Net Weight
|
200g
|
