Quick Details
-
Brand Name:
-
Kavan
-
Features:
-
ditching excavate
-
Feature:
-
ditching excavate
-
Delivery time:
-
45days
-
Customized service:
-
Available
-
Sample service:
-
Yes
-
MOQ:
-
2 Units
-
Certification:
-
CE
Quick Details
-
Marketing Type:
-
Hot Product 2020
-
Application:
-
agriculture
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kavan
-
Features:
-
ditching excavate
-
Feature:
-
ditching excavate
-
Delivery time:
-
45days
-
Customized service:
-
Available
-
Sample service:
-
Yes
-
MOQ:
-
2 Units
-
Certification:
-
CE
Product Description

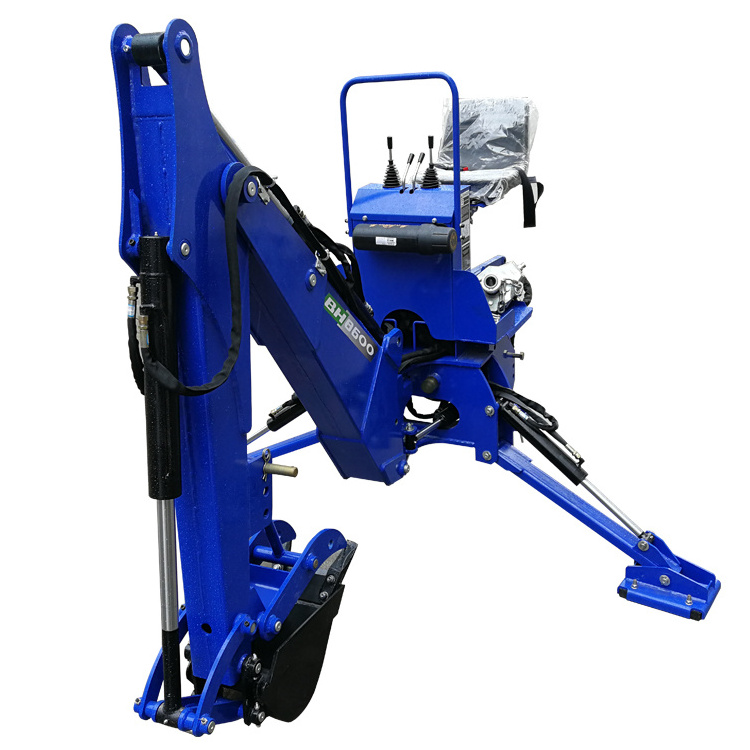

Agriculture 3 point hitched Mini tractor backhoe
| Model | BH5600 | BH6600 | BH7600 | BH8600 |
| Maximum Digging Depth | 1830mm | 2133mm | 2438mm | 2745mm |
| DiggingDepth(twofootflatbottom) | 1676mm | 1980mm | 2286mm | 2590mm |
| SwingArc | 180 ° | 180 ° | 180 ° | 180 |
| LoadingHeight(bucketat60°) | 1270mm | 1524mm | 1778mm | 2032mm |
| ReachfromCenterLineofSwingPivot | 2286mm | 2590mm | 2895mm | 3200mm |
| TransportHeight(maximum) | 1245mm | 1498mm | 1752mm | 2032mm |
| BucketRotation | 180 | 180 ° | 180 ° | 180 |
| LoadingReach(bucketat60°) | 865mm | 965mm | 1092mm | 1220mm |
| TransportOverhang | 1016mm | 1042mm | 1066mm | 1092mm |
| Undercut | 660mm | 712mm | 762mm | 812mm |
| Stabilizer Spread, down position | 1700mm | 1980mm | 2260mm | 2565mm |
| Stabilizer Spread, up position | 1066mm | 1194mm | 1550mm | 1828mm |
| Bucket Cylinder Digging Force | 930kgs | 1112kgs | 1288kgs | 1360kgs |
| Dipper stick Cylinder Digging Force | 476kgs | 566kgs | 910kgs | 1135kgs |
| Shipping Weight (less bucket) | 252kgs | 296kgs | 356kgs | 498kgs |
| Hydraulic Volume 3'4" Requirements | 3 to 4 GPM | 3 to 4 GPM | 4 to 5 GPM | 5to 6 GPM |
| Hydraulic Pressure Requirements | 2000psi | 2000 psi | 2000 psi | 2000 psi |
| Recommended Tractor HP | 18-25HP | 20 - 35 HP | 25 - 45 HP | 35 - 65 HP |
BH backhoe
1.It is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
2.Compact structure and flexible,convenient operation.
3. Mounting and dismounting quickly.
4.It is suitable for any sized tractors.
