Quick Details
-
Type:
-
28120(AM32)
-
Manufacturer recommended age:
-
14 years and up
-
Operator Skill Level:
-
Beginner, Intermediate, Expert
-
MCU:
-
STM32G071
-
Firmware:
-
AM32
-
Power Input:
-
2-8S LiPo
-
Continuous Current:
-
120A
-
Maximum Current:
-
150A
-
Application:
-
FPV Racing Drone,Multicopter,Quadcopter,DIY Drone
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEQURE
-
Model Number:
-
28120(AM32)
-
Type:
-
28120(AM32)
-
Manufacturer recommended age:
-
14 years and up
-
Operator Skill Level:
-
Beginner, Intermediate, Expert
-
MCU:
-
STM32G071
-
Firmware:
-
AM32
-
Power Input:
-
2-8S LiPo
-
Continuous Current:
-
120A
-
Maximum Current:
-
150A
-
Application:
-
FPV Racing Drone,Multicopter,Quadcopter,DIY Drone

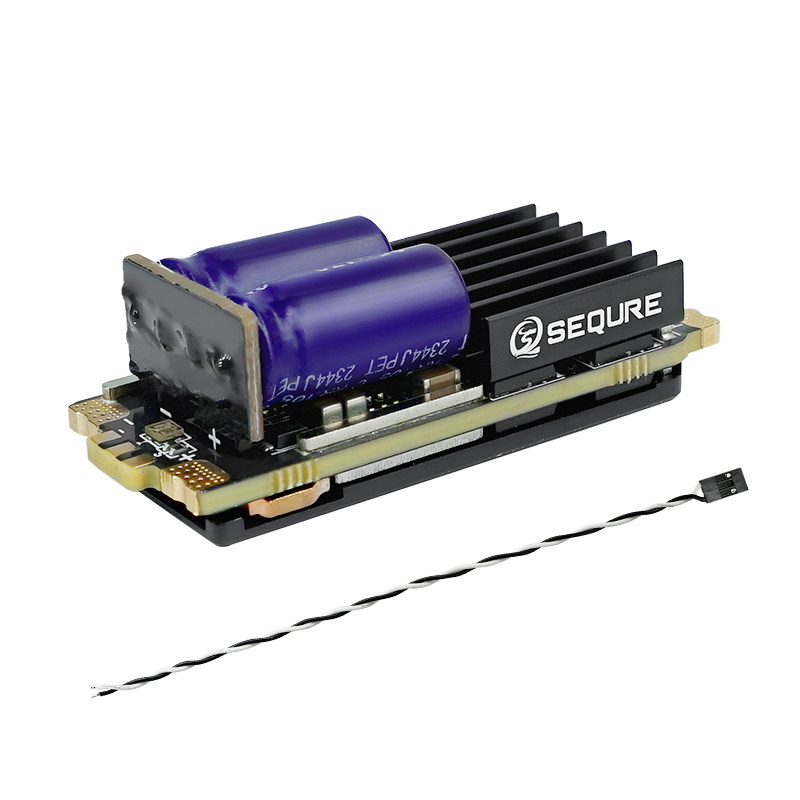

120A ESC 2S-8S Lipo BLHeli_32 Electronic Speed Controller Support Dshot PWM Brushless ESC for FPV Racing Drone Multicopter Quadcopter
Feture:
(1)High performance MCU: use ARM 32-bit cortex MCU, working frequency up to 64MHz, max support 128KHz motor PWM frequency.
(2)Mini size: mini but support huge power, the continuous current is 120A.
(3)Multiple protection: Thermal protection, Low voltage protection, Over current protection, Rotor block protection, Low speed power protection.
(4)Multiple protocol supported: Support Dshot, PWM, Oneshot, Multishot and automatically check the throttle signal.
(5)Telemetry: Telemetry by TX wire or signal wire of voltage, currect, temperature, RPM
(6)Durble Materials: Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(7)Color select: Onboard RGB LED color light settings, multiple LED colors can be customized.
Parameters:
|
Model |
SQESC 28120 |
|
Processor |
STM32G071 |
|
Input voltage |
DC 7V-33.6V(2-8S Lipo) |
|
Continuous current |
120A |
|
Maximum current |
150A |
|
Support firmware |
AM32 |
|
Signal protocol |
Dshot (All),PWM,Oneshot,Multishot,etc. |
|
Programming parameter adjustment |
Support |
|
Throttle calibration |
Support |
|
Timing angle setting |
Support |
|
Current detection |
Support |
|
Telemetry signal |
Support |
|
Motor steering settings |
Support |
|
RGB LED color lights |
Support |
Package included: 28120 Set×1
