Quick Details
-
Fork Length:
-
\
-
Fork Width:
-
\
-
Overall Dimensions:
-
11450x4150x4600mm
-
Weight (KG):
-
32000 kg
-
Product Name:
-

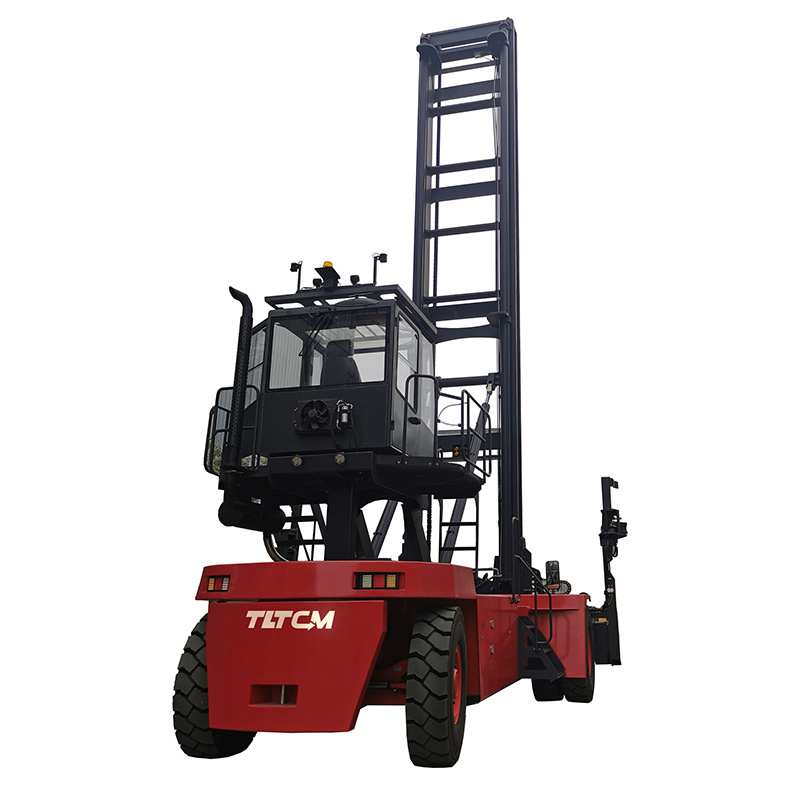

Empty Container handler
-
Key words:
-
Empty Container handler
-
Color:
-
Customized
-
Feature:
-
High Efficiency
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TLTCM
-
Fork Length:
-
\
-
Fork Width:
-
\
-
Overall Dimensions:
-
11450x4150x4600mm
-
Weight (KG):
-
32000 kg
-
Product Name:
-
Empty Container handler
-
Key words:
-
Empty Container handler
-
Color:
-
Customized
-
Feature:
-
High Efficiency
Product Category
Product Display
Product Details
|
Characteristics
|
1.1
|
Manufacturer
|
|
weilonglift
|
weilonglift
|
weilonglift
|
|
|
1.2
|
Model designation
|
|
DG80/5
|
DG80/6
|
DG80/7
|
|
|
1.3
|
Power unit: battery,diesel,petrol,LP gas,mains power
|
|
Diesel
|
Diesel
|
Diesel
|
|
|
1.4
|
Operation: Manual,stand-on,seated
|
|
Seated
|
Seated
|
Seated
|
|
|
1.5
|
Load capacity
|
Q(kg)
|
8000
|
8000
|
7000/7， 8000/6
|
|
|
1.6
|
Load centre
|
c(mm)
|
1295
|
1295
|
1295
|
|
|
1.8
|
Axle centre to fork face
|
x(mm)
|
1198
|
1198
|
1198
|
|
|
1.9
|
Wheelbase
|
y(mm)
|
4020
|
4020
|
4020
|
|
Weghts
|
2.1
|
Service weight
|
kg
|
32000
|
32800
|
33800
|
|
|
2.3
|
Axle load without load, front/rear
|
kg
|
19700/13100
|
19700/13100
|
20900/12900
|
|
Wheels
|
3.1
|
Tyres,solid rubber,superelastic,pneumatic
|
|
P/P
|
P/P
|
P/P
|
|
|
3.2
|
Tyre size, front
|
|
12.00×24/24PR
|
12.00×24/24PR
|
12.00×24/24PR
|
|
|
3.3
|
Tyre size, rear
|
|
12.00×24/24PR
|
12.00×24/24PR
|
12.00×24/24PR
|
|
|
3.5
|
Wheels number front/rear (x* = driven)
|
|
4×/2
|
4×/2
|
4×/2
|
|
|
3.6
|
Track width,front
|
b101mm
|
2880
|
2880
|
2880
|
|
|
3.7
|
Track width,rear
|
b111mm
|
2120
|
2120
|
2120
|
|
Dimensions
|
4.1
|
Mast lift,forward/backward
|
α/β(Grad)
|
3/4
|
3/4
|
3/4
|
|
|
4.2
|
Height of mast,lowered
|
h1(mm)
|
9283
|
9600
|
11111
|
|
|
4.4
|
Max Lift Height unladen (From ground to under twistlockh3+h13
|
(mm)
|
12680
|
15840
|
18270
|
|
|
4.5
|
Height of mast,extended
|
h4(mm)
|
15790
|
16660
|
19244
|
|
|
4.7
|
Height of overhead guard
|
h6(mm)
|
4326
|
4326
|
4326
|
|
|
4.8
|
Height of seat
|
h7(mm)
|
3226
|
3226
|
3226
|
|
|
4.12
|
Towing coupling height
|
h10(mm)
|
600
|
600
|
600
|
|
|
4.15
|
Twistlock height lowered
|
h13(mm)
|
2290
|
2290
|
2290
|
|
|
4.19
|
Overall length
|
l1(mm)
|
6450
|
6450
|
6450
|
|
|
4.2
|
Length to fork face
|
l2(mm)
|
6277
|
6277
|
6277
|
|
|
4.21
|
Overall width
|
b1/b2(mm)
|
4120/2398
|
4120/2398
|
4120/2398
|
|
|
4.24
|
width of attachment 20'/40'
|
b3(mm)
|
6050/12150
|
6050/12150
|
6050/12150
|
|
|
4.31
|
Ground clearance,drive axle
|
m1(mm)
|
320
|
320
|
320
|
|
|
4.32
|
Ground clearance,centre of wheelbase
|
m2(mm)
|
360
|
360
|
360
|
|
|
4.33
|
stacking aisle,20' container（without/with container）
|
Ast(mm)
|
6890/8900
|
6890/8900
|
6890/8900
|
|
|
|
stacking aisle,40' container
|
Ast(mm)
|
12500
|
12500
|
12500
|
|
|
4.35
|
Turning radius
|
Wa(mm)
|
5700
|
5700
|
5700
|
|
|
4.36
|
Minimum pivoting point distance
|
b13(mm)
|
2525
|
2525
|
2525
|
|
Performances
|
5.1
|
Travel speed, with/without load
|
Km/h
|
24/25
|
24/25
|
24/25
|
|
|
5.2
|
Lifting speed, with/without load
|
m/s
|
0.55/0..60
|
0.55/0..60
|
0.55/0..60
|
|
|
5.3
|
Lowering speed, with/without load
|
m/s
|
0.60/0.60
|
0.60/0.60
|
0.60/0.60
|
|
|
5.5
|
Tractive force
|
KN
|
114
|
114
|
114
|
|
|
5.7
|
Climbing ability, with/without load
|
%
|
25/35
|
25/35
|
25/35
|
|
|
5.9
|
Acceleratior time, with/without load
|
S
|
26/24
|
26/24
|
26/24
|
|
|
5.10
|
Service brake
|
|
Wet disc/湿碟式
|
Wet disc/湿碟式
|
Wet disc/湿碟式
|
|
|
6.4
|
Starting battery
|
V/Ah
|
24V(2×12/110)
|
24V(2×12/110)
|
24V(2×12/110)
|
|
Drive
|
7.1
|
Engine manufacturer/type
|
|
cummins QS6.7
|
cummins QS6.7
|
cummins QS6.7
|
|
|
7.2
|
Engine performance according to ISO 1585
|
Kw
|
129
|
129
|
129
|
|
|
7.3
|
Rated speed
|
min-1
|
2200
|
2200
|
2200
|
|
|
7.4
|
MAX.torque/RPM
|
NM/RPM
|
800Nm@1500RPM
|
800Nm@1500RPM
|
800Nm@1500RPM
|
|
|
7.5
|
transmission box model
|
|
ZF 3WG211
|
ZF 3WG211
|
ZF 3WG211
|
|
|
7.6
|
Type of tansmission control
|
|
Torque converter 3/3
|
Torque converter 3/3
|
Torque converter 3/3
|
|
|
7.7
|
drive axle manufacturer/type
|
|
axletech 90001854-X215AE
|
axletech 90001854-X215AE
|
axletech 90001854-X215AE
|
|
|
7.8
|
steer axle manufacturer/type
|
|
anqin Z16A1
|
anqin Z16A1
|
anqin Z16A1
|
|
|
7.9
|
spreader manufacturer/type
|
|
WL SP-1
|
WL SP-1
|
WL SP-1
|
|
|
7.10
|
sideshift distance
|
mm
|
±600
|
±600
|
±600
|
|
|
7.11
|
Number of cylinders/displacement
|
cm3
|
6/6700
|
6/6700
|
6/6700
|
|
|
7.12
|
Fuel consumption(average)
|
I/h
|
-
|
-
|
-
|
|
Others
|
8.1
|
Type of drive control
|
|
Torque converter 3/3
|
Torque converter 3/3
|
Torque converter 3/3
|
|
|
8.2
|
Working pressure for attachments
|
bar
|
140
|
140
|
140
|
|
|
8.3
|
control system
|
|
CANBUS
|
CANBUS
|
CANBUS
|
|
|
8.4
|
Noise level at operator's ear
|
dB(A)
|
70
|
70
|
70
|
|
|
8.5
|
Towing coupling,desigh/type,DIN,no
|
|
50
|
50
|
50
|
About Us
Fujian Tianli Times Machinery Co., Ltd is located in Xiamen with more than 20 years professional experience in the forklift field. We are a subsidiary branch of HANGCHA in China, and our brand is TLTCM.
We are a high-tech enterprise integrating R&D(research and development) and design, manufacturing, with more than 500 employees. We are one of the top construction machinery sales and service companies in Fujian Province.
At the moment our main products are: electric forklifts, electric stackers, off-road forklifts, small excavators, loaders and other small and medium-sized mechanical equipment. We provide users with advanced material handling equipment, professional after-sales service and experienced material handling solutions.
Factory Display
Exhibition
Production Proces
FAQ
Q1: How about the delivery time?
A1: Usually our producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q2: How about the continuous working time for the electric series forklifts ? How long time to charge the battery full?
A2: Our battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, our charger is automatic, after the battery is full, it will stop working automatically.
Q3: Can you provide customized products? OEM products or ODM products?
A3: Yes, we can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q4: Could we request our own color for the products?
A4: Yes, of course, you just need to offer us the RAL code.
Q5: How long is the after-sales warranty?
A5: We can provide video technical support.
Q6. Can I visit your company?
A6: Of course. We always with great pleasure at your service. If you want to order our products and visit our company, please contact us to make an appointment.
