Quick Details
-
Production Capacity:
-
High-speed production
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
DECHEN brand
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*4800*3150mm
-
Weight:
-
6500 kg
-
Product name::
-
cutting stone machine marble granite bridge saw slab cutter machinery
-
Model:
-
DTQ-450/600/700/800
-
Slab size:
-
3200x2200mm
-
Blade diameter::
-
400-700mm
-
Blade quantity:
-
1
-
Max.titling degree for work-bench:
-
85
-
Rotating degree range for work-bench::
-
0-90/0-360
-
Locating degree for work-bench::
-
0-45-90
-
Cutting materials:
-
Stone Marble Granite Tile
-
Color:
-
According to your requirement
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
18500
-
Cutting thickness (max):
-
350mm
-
Production Capacity:
-
High-speed production
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
DECHEN brand
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6000*4800*3150mm
-
Weight:
-
6500 kg
-
Product name::
-
cutting stone machine marble granite bridge saw slab cutter machinery
-
Model:
-
DTQ-450/600/700/800
-
Slab size:
-
3200x2200mm
-
Blade diameter::
-
400-700mm
-
Blade quantity:
-
1
-
Max.titling degree for work-bench:
-
85
-
Rotating degree range for work-bench::
-
0-90/0-360
-
Locating degree for work-bench::
-
0-45-90
-
Cutting materials:
-
Stone Marble Granite Tile
-
Color:
-
According to your requirement

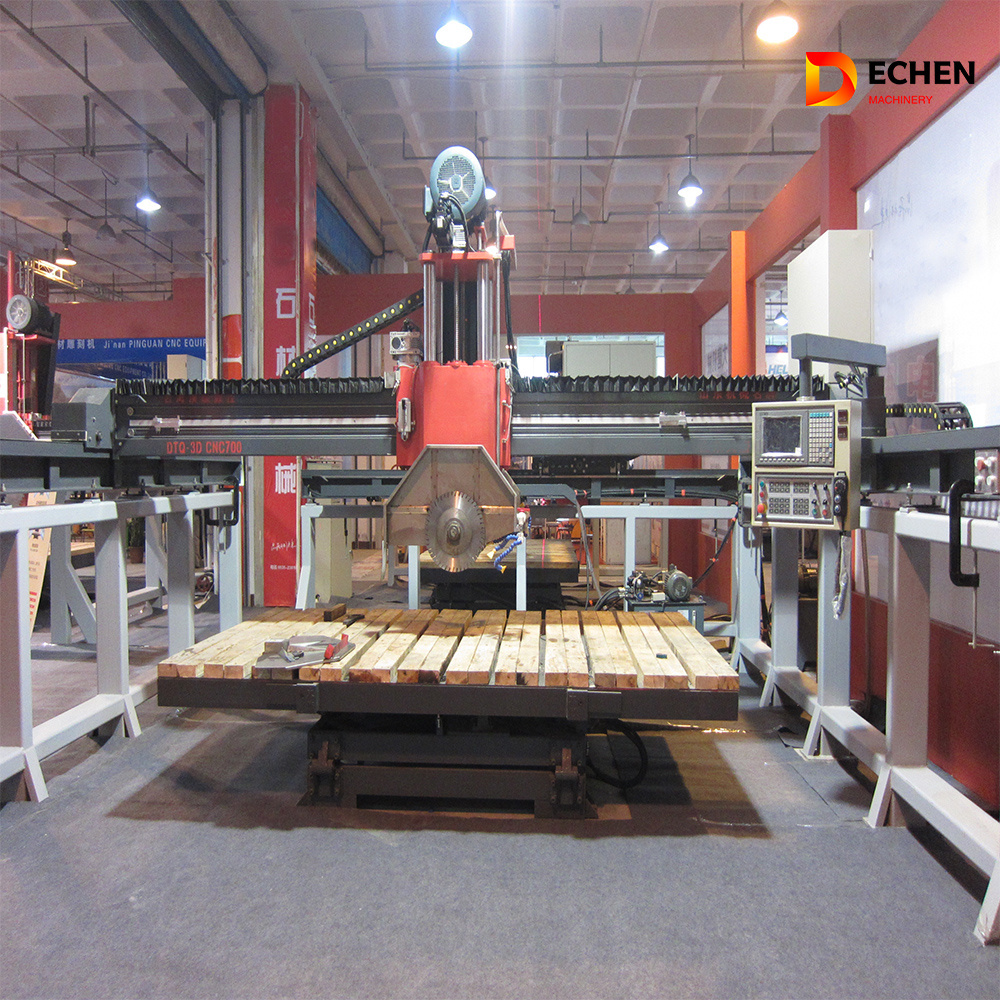

CNC Tiles And Stone Machine Marble Granite Bridge Saw Slab Cutting Cutter Machinery
One stop shopping , Dechen Machinery produces mining equipment, stone processing equipment , to provide customers with a complete stone processing plant design, provide complete after-sales service.
Technical parameters
|
Model |
DTQ-450 |
DTQ-600 |
DTQ-700 |
DTQ-800 |
|
Max. cutting size |
3200*2000*100mm |
3200*2000*175mm |
3200*2000*225mm |
3200*2000*275mm |
|
Diameter of blade |
Φ400-Φ450mm |
Φ400-Φ600mm |
Φ400-Φ700mm |
Φ400-Φ800mm |
|
Size of worktable |
3200*2000mm |
3200*2000mm |
3200*2000mm |
3200*2000mm |
|
Vertical turning angle of worktable |
0-85° |
0-85° |
0-85° |
0-85° |
|
Rotation angle of worktable |
0-90/0-360° |
0-90/0-360° |
0-90/0-360° |
0-90/0-360° |
|
Main motor power |
15KW |
18.5KW |
18.5KW |
18.5KW |
|
Water consumption |
3.5m³ /h |
3.5m³ /h |
3.5m³ /h |
3.5m³ /h |
|
Overall dimension |
6000*4800*2600mm |
6000*4800*2800mm |
6000*4800*3150mm |
6000*4800*3300mm |
|
Total weight |
8674KG |
9161KG |
10151KG |
10650KG |
1. The bridge type infrared stone cutter is operated by computer so that it work automatically .
2. The parts and accessories of which are made of high quality steel .
3. The lifting moving driving by four lead pillars.
4. The electronic controling cabinet compries.The machine adopt PLC controlling system,variable-frequency drive(VFD) which can provide fine speed regulation,infrared checking and calibration instrument,touching operating system.
5. The computer automatic control ensures the accuracy of cutting;So,the machine endowed with high steadiness,effective and simple in operating characters.
6. Long working life , very durable.
7. Small noise , working well.
8. Better slab quantity and precision .
9. Large capacity, save energy and cost .
10. Equipped with Schneider frequency transducer and OMROM PLC , programmable and fully automatic.
Accessiories
1.We choose the top Accessories to make sure the machine is strong and durable.
2.Our core components adopt premium brands and materials to extend the use of machines.
Application
The machine endowed with high steadiness,effective and simple in operating characters,Hence,It is suitable to process high value,large size granite and marble slab.
